AIR CLEANER (REAR)(MODEL S/T/V)

VS800GL 1993 (P) (E02 E04 E17 E18 E21 E22 E25 E34 E53)

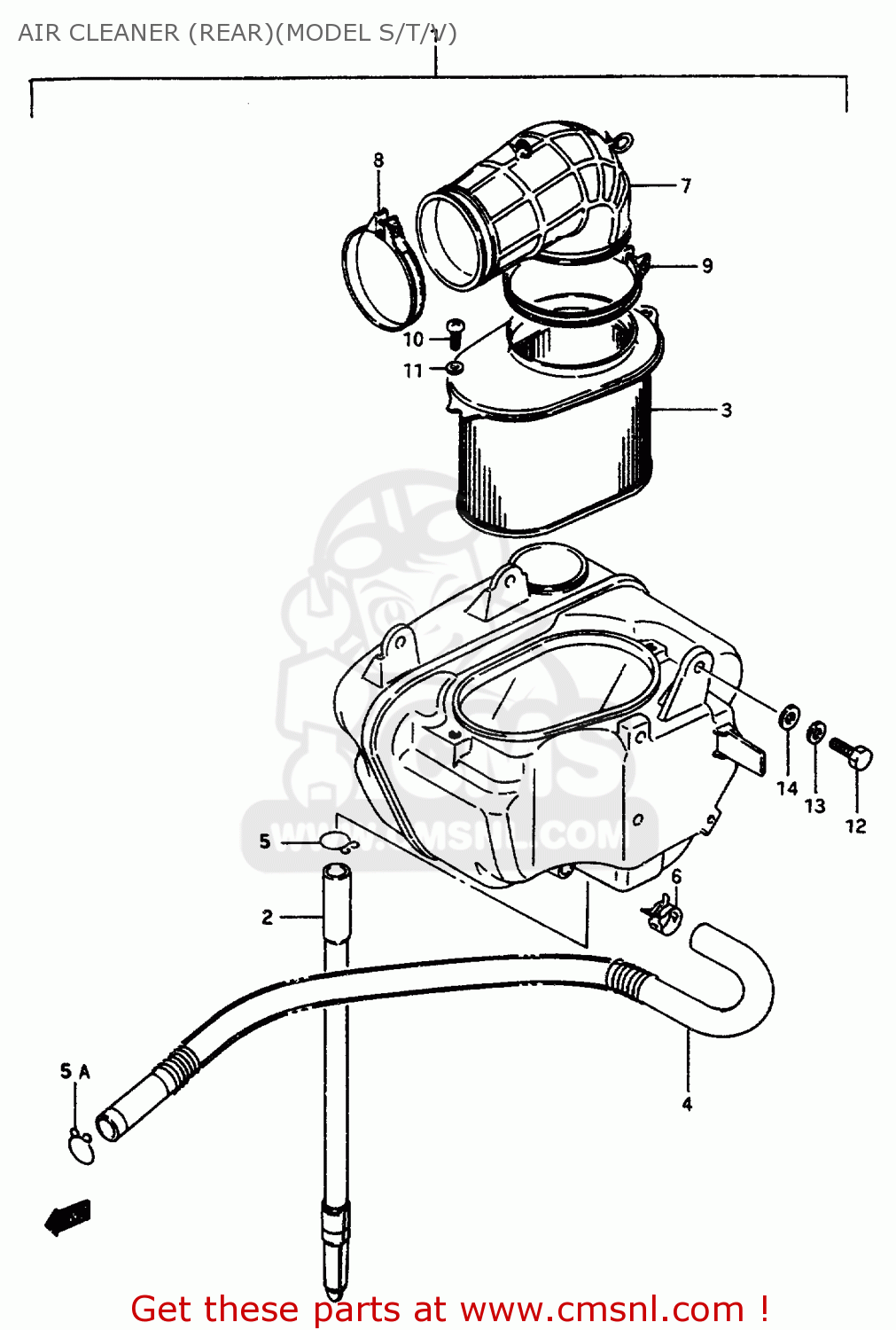

Air cleaner (rear)(model s/t/v) diagram VS800GL 1993 (P) (E02 E04 E17 E18 E21 E22 E25 E34 E53)

AIR CLEANER (REAR)(MODEL S/T/V) VS800GL 1993 (P) (E02 E04 E17 E18 E21 E22 E25 E34 E53)

AIR CLEANER (REAR)(MODEL S/T/V) VS800GL 1993 (P) (E02 E04 E17 E18 E21 E22 E25 E34 E53)

prices are in EUR

ref

part #

description

quantity

1

1370038A61
ref: 1

CLEANER ASSY,AIR RR

€ 188.50

2

1387011458
ref: 2

TUBE,DRAIN

€ 13.50

3

1378038A51
ref: 3

FILTER ASSY

€ 33.00

4

1385038A50
ref: 4

TUBE SET,BREATHER

€ 62.00

5

0940113409
ref: 5

CLIP

€ 2.50

5A

0940114301
ref: 5A

CLIP

€ 2.00

6

0940114402
ref: 6

CLIP

€ 2.00

7

1388138A50
ref: 7

TUBE,AIR CLEANER OUTLET

€ 32.00

8

0940258208
ref: 8

CLAMP

€ 5.50

9

0940278207
ref: 9

CLAMP

€ 7.50

10

0211205085
ref: 10

SCREW

€ 2.00

11

0832101053
ref: 11

LOCK,WASHER

€ 3.00

12

0150006207
ref: 12

BOLT

€ 2.00

13

0832101067
ref: 13

WASHER,LOCK

€ 2.50

14

0916006019
ref: 14

WASHER(6.5X16X1.2)

€ 1.50

13

0832101067
ref: 13

WASHER,LOCK

€ 2.50

14

0916006019
ref: 14

WASHER(6.5X16X1.2)

€ 1.50

all assemblies

* COLOR CHART *

* CATALOG PREFACE *

* CONVERSION CHART *
