FRONT MASTER CYLINDER

VS800GL 1993 (P) (E02 E04 E17 E18 E21 E22 E25 E34 E53)

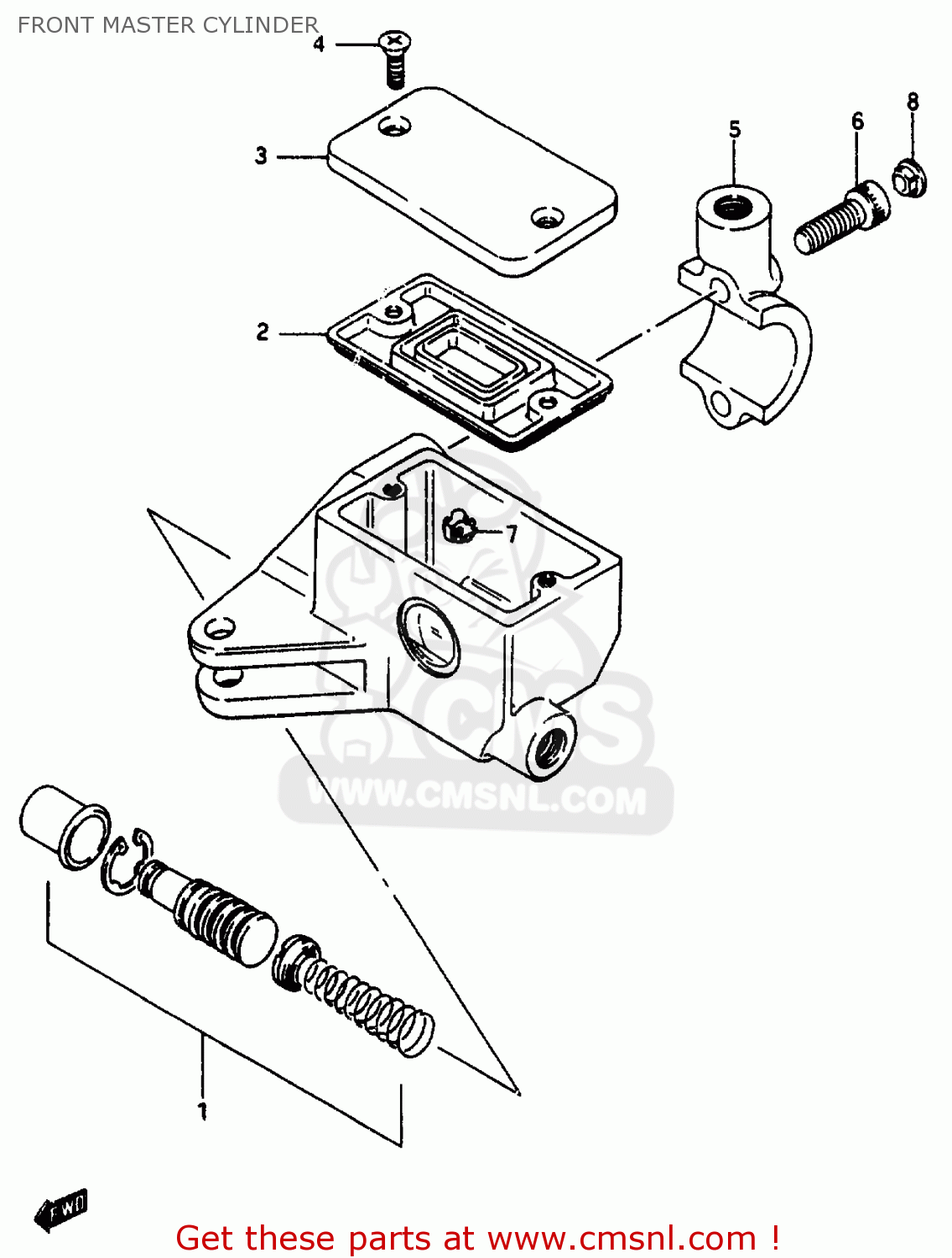

Front master cylinder diagram VS800GL 1993 (P) (E02 E04 E17 E18 E21 E22 E25 E34 E53)

FRONT MASTER CYLINDER VS800GL 1993 (P) (E02 E04 E17 E18 E21 E22 E25 E34 E53)

FRONT MASTER CYLINDER VS800GL 1993 (P) (E02 E04 E17 E18 E21 E22 E25 E34 E53)

prices are in EUR

ref

part #

description

quantity

0

5960024B50
ref: 0

CYLINDER ASSY,FR MASTER

€ 391.50

1

5960036820
ref: 1

CUP SET,MASTER CYLINDER

€ 37.50

2

5966749460
ref: 2

5966749460

3

5966924B00
ref: 3

CAP

€ 59.00

4

0212204127
ref: 4

SCREW

€ 2.00

5

5967138A00
ref: 5

HOLDER

€ 37.50

6

0713006207
ref: 6

BOLT

€ 3.50

7

5966448B00
ref: 7

PROTECTOR

€ 8.00

8

0925005008
ref: 8

CAP(OD:10)

€ 5.00
