MAGNETO (MODEL T/V)

VS800GL 1993 (P) (E02 E04 E17 E18 E21 E22 E25 E34 E53)

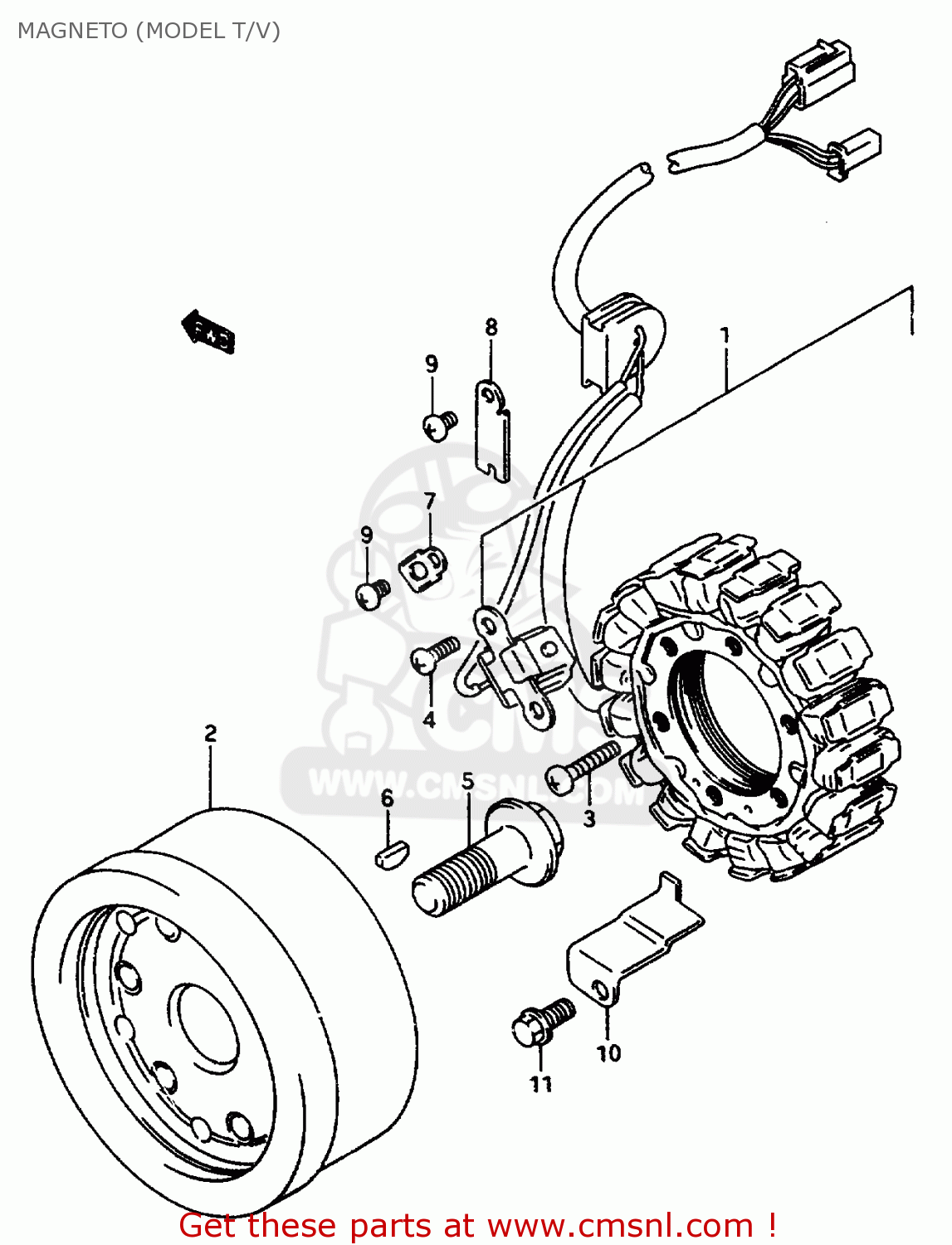

Magneto (model t/v) diagram VS800GL 1993 (P) (E02 E04 E17 E18 E21 E22 E25 E34 E53)

MAGNETO (MODEL T/V) VS800GL 1993 (P) (E02 E04 E17 E18 E21 E22 E25 E34 E53)
MAGNETO (MODEL T/V) VS800GL 1993 (P) (E02 E04 E17 E18 E21 E22 E25 E34 E53)
MAGNETO (MODEL T/V) VS800GL 1993 (P) (E02 E04 E17 E18 E21 E22 E25 E34 E53)
prices are in EUR
ref
part #
description
quantity
1
3210145C00
ref: 1
STARTER ASSY
3210145C00
€ 591.00
2
3210238A30
ref: 2
ROTOR ASSY
3210238A30
€ 390.50
3
0154706303
ref: 3
BOLT,G/S SWITC
0154706303
€ 3.00
4
0211205103
ref: 4
SCREW
0211205103
€ 2.00
5
0910314001
ref: 5
BOLT(14X43)
0910314001
€ 7.00
6
0942004008
ref: 6
KEY
0942004008
€ 3.50
7
3149745000
ref: 7
CLAMP,GENERATOR LEAD WIRE
3149745000
€ 1.50
8
3237138A10
ref: 8
CLAMP NO.1,MAGNETO READ WIRE
€ 1.50
9
0211205103
ref: 9
SCREW
0211205103
€ 2.00
10
3237145C00
ref: 10
CLAMP,MAGNETO LEAD WIRE
3237145C00
€ 3.00
11
0154706103
ref: 11
BOLT
0154706103
€ 3.00
9
3237138A10
ref: 9
CLAMP NO.1,MAGNETO READ WIRE
€ 1.50
10
0211205107
ref: 10
SCREW
0211205107
€ 2.00
11-1
3237138A20
ref: 11-1
MODEL N/P/R
CLAMP,MAGNETO LEAD WIRE
€ 3.00
11-2
3237145C00
ref: 11-2
MODEL S
CLAMP,MAGNETO LEAD WIRE
3237145C00
€ 3.00
12
0154706107
ref: 12
BOLT
0154706107
€ 1.50
