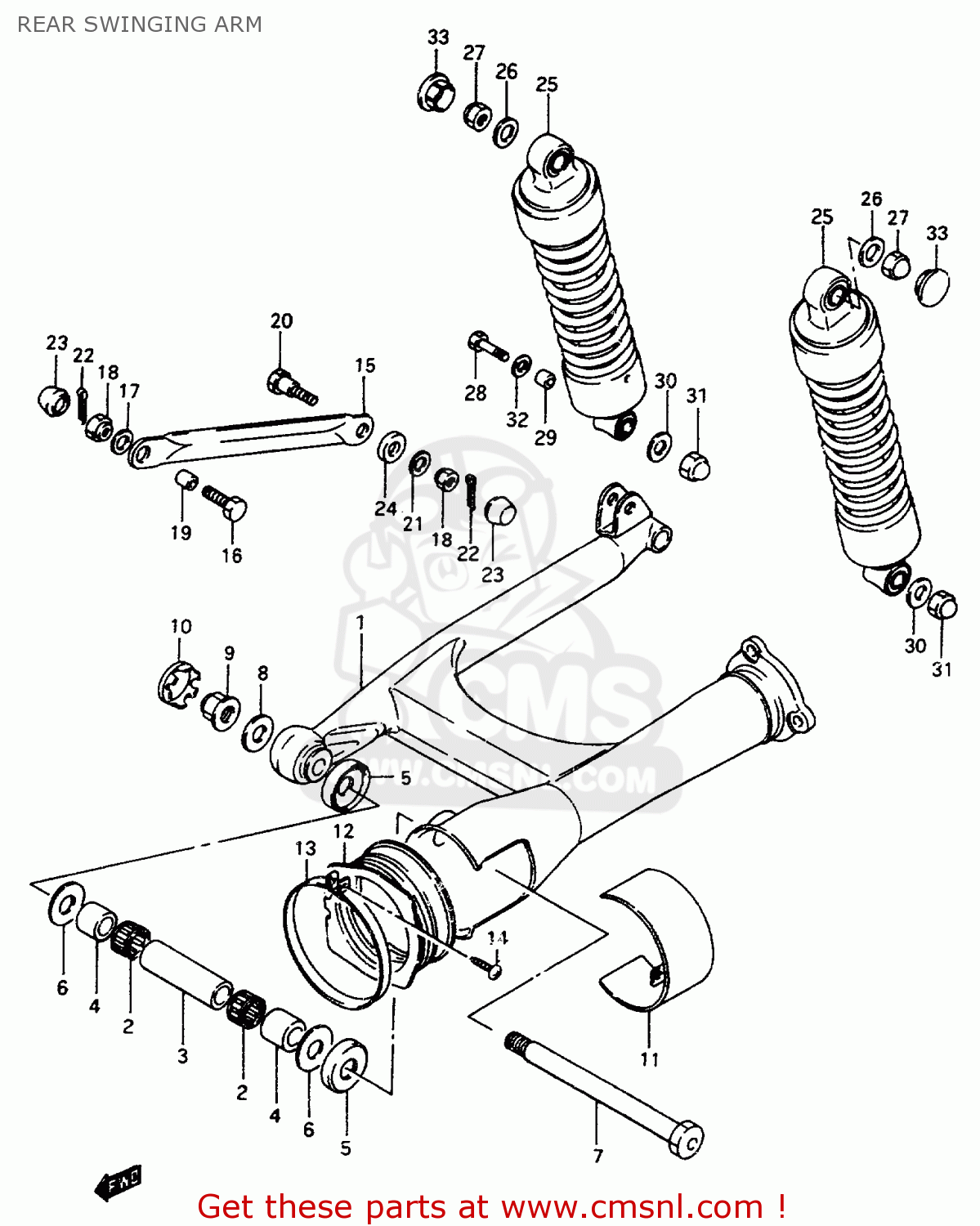

REAR SWINGING ARM

ref

part #

description

quantity

1-1

6110038E0003F
ref: 1-1
MODEL N

SWING ARM COMP,REAR

€ 569.00

1-2

6110038E0119A
ref: 1-2
MODEL N/P/R/V

SWINGINGARM,RR

€ 544.00

1-3

6110038E000CG
ref: 1-3
MODEL P

SWING ARM,REAR

€ 517.50

1-4

6110038E0133J
ref: 1-4
MODEL R/S/V

SWING ARM,REAR (BLACK)

€ 517.50

1-5

6110038E0120F
ref: 1-5
MODEL S/T

SWING ARM,REAR (MAROON)

€ 517.50

1-6

6110038E011ZV
ref: 1-6
MODEL T

SWING ARM,REAR (GREEN)

€ 556.00

1-7

6110038E01Y0N
ref: 1-7
MODEL V

SWING ARM COMP,REAR

€ 517.50

2

0926322022
ref: 2

BEARING(22X29X20)

€ 27.00

3

6128238E01
ref: 3

SPACER,RR SWGARM PIVOT

€ 11.50

4

6125132410
ref: 4

SPACER,RR SWGARM PIVOT

€ 8.50

5

6126214A00
ref: 5

SEAL,RR SWGARM PIVOT DUST

€ 7.50

6

0821116341
ref: 6

WASHER

€ 2.00

7

6121138E00
ref: 7

SAHFT,RR SWGARM PIVOT

€ 41.00

8

0916017047
ref: 8

WASHER(17X30X3)

€ 5.00

9

0831921168
ref: 9

NUT 16MM

€ 5.00

10

6122238A01
ref: 10

CAP,RR SWINGING ARM PIVOT,R

€ 6.50

11-1

6123238A0003F
ref: 11-1
MODEL N

COVER,REAR SWING ARM PIVOT

€ 25.50

11-2

6123238A0019A
ref: 11-2
MODEL N/O/R-V

COVER,RR SWGARM PIVOT,L(RED)

€ 28.00

11-3

6123238A000CG
ref: 11-3
MODEL P

COVER,REAR SWING ARM PIVOT

€ 25.50

11-4

6123238A0033J
ref: 11-4
MODEL R/S/V

COVER,RR SWGARM PIVOT,L

€ 30.50

11-5

6123238A0020F
ref: 11-5
MODEL S/T

COVER,REAR SWING ARM PIVOT

€ 22.50

11-6

6123238A001ZV
ref: 11-6
MODEL T

COVER,REAR SWING ARM PIVOT

€ 26.50

11-7

6123238A00Y0N
ref: 11-7
MODEL V

COVER,REAR SWING ARM PIVOT

€ 27.50

12

6137238A00
ref: 12

BOOT,PROPELLER SHAFT

€ 16.50

13

0940292306
ref: 13

CLAMP

€ 8.50

14-1

0321104255
ref: 14-1
MODEL N/P

SCREW 4X25

€ 2.00

14-2

0321104253
ref: 14-2
MODEL R/S/T/V

SCREW

€ 2.00

15

6431038A13019
ref: 15

TORQUELINK,RR

€ 13.00

16

0910110037
ref: 16

BOLT(10X28)

€ 4.00

17-1

0916010057
ref: 17-1
MODEL N/P/R

WASHER

€ 2.00

17-2

0916010085
ref: 17-2
MODEL S/T/V

WASHER (10X20X2.3)

€ 2.00

18-1

0915910059
ref: 18-1
MODEL N

NUT

€ 2.50

18-2

0915910059
ref: 18-2
MODEL P/R/S/T/V

NUT

€ 2.50

18-3

0831012108
ref: 18-3
MODEL P

NUT

€ 2.50

18-4

0831000103
ref: 18-4
MODEL R/S/T/V

NUT

€ 2.00

19

0918010114
ref: 19

SPACER

€ 4.50

20

0911110035
ref: 20

BOLT(10X41)

€ 6.50

21

0916010085
ref: 21

WASHER (10X20X2.3)

€ 2.00

22

0411116208
ref: 22

PIN 16X20

€ 2.00

23-1

0925113002
ref: 23-1
MODEL N

CAP

€ 6.50

23-2

0925113002
ref: 23-2
MODEL P/R/S/T/V

CAP

€ 6.50

24

0932012039
ref: 24

CUSHION

€ 5.50

25

6210038A52
ref: 25

ABSORBER ASSEMBLY,REAR SHOCK

€ 367.00

26-1

0916010001
ref: 26-1
MODEL N

WASHER

€ 2.00

26-2

0916010013
ref: 26-2
MODEL P/R/S/T/V

WASHER (10.1X21X2.3)

€ 2.00

27-1

0831616106
ref: 27-1
MODEL N/P

NUT

€ 2.00

27-2

0831610103
ref: 27-2
MODEL R/S/T/V

NUT

€ 2.00

28

0910010247
ref: 28

BOLT(10X39)

€ 4.00

29

0918010104
ref: 29

SPACER (10.2X14X20.7)

€ 6.00

30

0916010095
ref: 30

WASHER

€ 2.00

31-1

0831311107
ref: 31-1
MODEL N/P

NUT

€ 2.50

31-2

0831310107
ref: 31-2
MODEL R/S/T/V

NUT

€ 2.50

32

0832211104
ref: 32
MODEL N/P

WASHER 10MM

€ 2.50

33

9567224A00
ref: 33

CAP,FRAME HANDLE GRIP

€ 5.00
