ELECTRICAL

VS800GL 1993 (P) (E02 E04 E17 E18 E21 E22 E25 E34 E53)

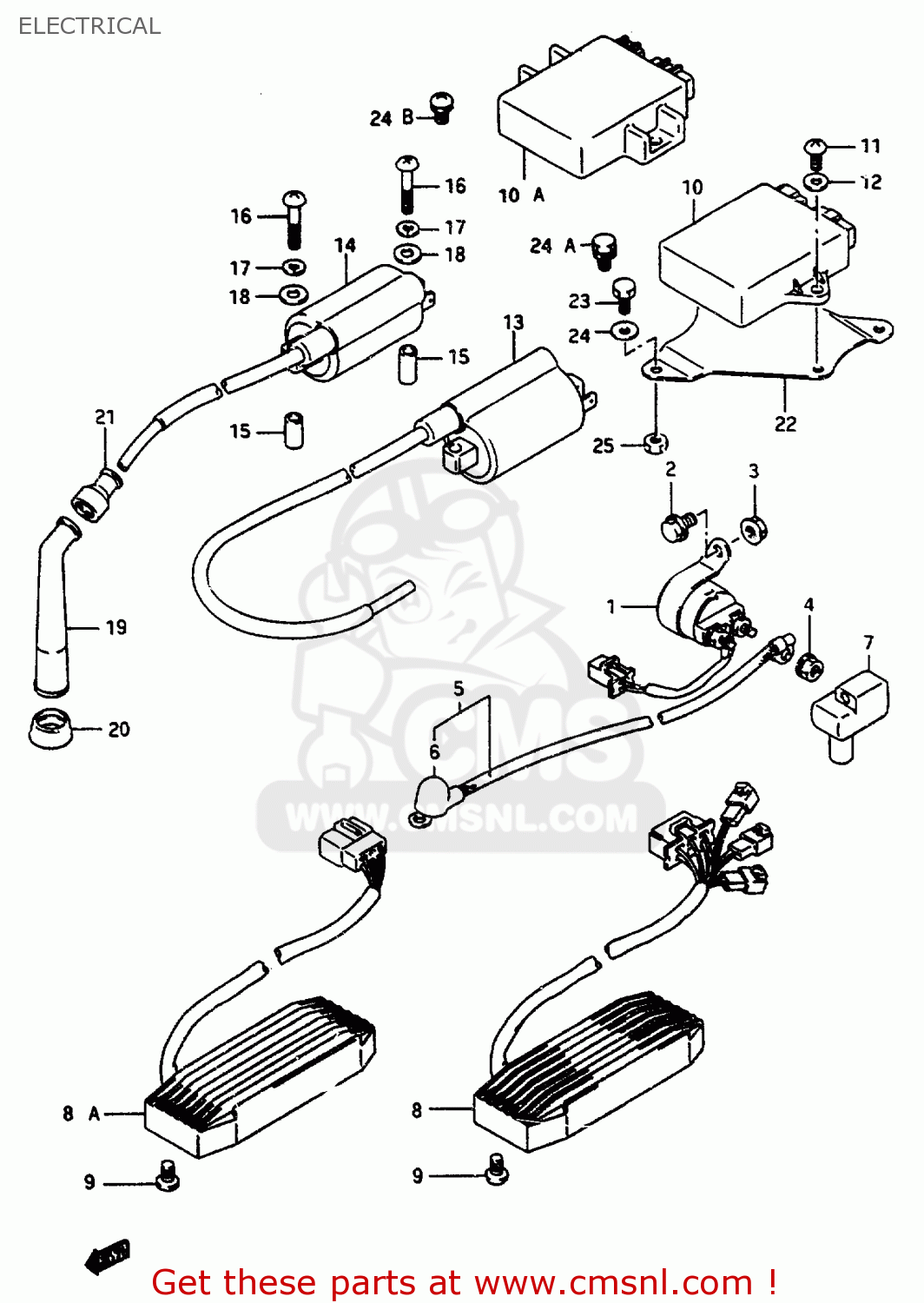

Electrical diagram VS800GL 1993 (P) (E02 E04 E17 E18 E21 E22 E25 E34 E53)

ELECTRICAL VS800GL 1993 (P) (E02 E04 E17 E18 E21 E22 E25 E34 E53)
ELECTRICAL VS800GL 1993 (P) (E02 E04 E17 E18 E21 E22 E25 E34 E53)
ELECTRICAL VS800GL 1993 (P) (E02 E04 E17 E18 E21 E22 E25 E34 E53)
prices are in EUR
ref
part #
description
quantity
1
3180015501
ref: 1
RELAY ASSY,STARTING MOTOR
3180015501
€ 78.00
2-1
0151706106
ref: 2-1
MODEL N/P
BOLT
0151706106
€ 2.50
2-2
0155006103
ref: 2-2
MODEL R/S/T/V
BOLT
0155006103
€ 2.50
3
0831610063
ref: 3
NUT
0831610063
€ 2.50
4
0836135068
ref: 4
NUT
0836135068
€ 2.00
5
3385038A00
ref: 5
WIRE,STARTER MOTOR LEAD
3385038A00
€ 17.50
6
3186148B10
ref: 6
-31861-05300
CAP,STARTER MOTOR LEAD
3186148B10
€ 4.50
7-1
3186138A00
ref: 7-1
MODEL N/P
CAP,STARTER RELAY
3186138A00
€ 7.50
7-2
3186148B10
ref: 7-2
MODEL R/S
CAP,STARTER MOTOR LEAD
3186148B10
€ 4.50
7-3
3186138A00
ref: 7-3
MODEL T/V
CAP,STARTER RELAY
3186138A00
€ 7.50
8
3280038A00
ref: 8
MODEL N/P/R/S
RECTIFIER ASSY
3280038A00
€ 396.50
8A
3280012E01
ref: 8A
MODEL T/V
RECTIFIER ASSY
3280012E01
€ 368.00
9-1
0110706104
ref: 9-1
MODEL N/P
BOLT
€ 2.00
9-2
0150006103
ref: 9-2
MODEL R/S/T/V
BOLT
€ 2.00
10
3290038A10
ref: 10
MODEL N/P/R/S
IGNITER UNIT ASSEMBLY
3290038A10
€ 611.00
10A
3290038A31
ref: 10A
MODEL T/V
IGNITOR ASSY
3290038A31
€ 633.50
11-1
0211206126
ref: 11-1
MODEL N/P
SCREW
0211206126
€ 1.50
11-2
0214206123
ref: 11-2
MODEL R/S/T/V
SCREW 6X12
0214206123
€ 2.00
12
0832201063
ref: 12
WASHER
0832201063
€ 2.00
13-1
3341038A10
ref: 13-1
MODEL N/P,REAR
COIL ASSEMBLY,IGNITION
€ 136.00
13-2
3341038A11
ref: 13-2
MODEL R/S/T/V,REAR
COIL ASSY,IGNITION
3341038A11
€ 136.00
14-1
3342038A10
ref: 14-1
MODEL N/P,FRONT
COIL ASSEMBLY,IGNITION
€ 150.00
14-2
3342038A11
ref: 14-2
MODEL R/S/T/V,FRONT
COIL ASSY,IGNITION
3342038A11
€ 150.00
15
0918006144
ref: 15
SPACER(6.4X10X19)
0918006144
€ 5.00
16
0912505053
ref: 16
SCREW (5X38)
0912505053
€ 1.50
17
0832101053
ref: 17
LOCK,WASHER
€ 3.00
18-1
0832221056
ref: 18-1
MODEL N/P
WASHER
€ 2.50
18-2
0832201053
ref: 18-2
MODEL R/S/T/V
WASHER
0832201053
€ 2.50
19
3351011410
ref: 19
CAP,SPARK PLUG
3351011410
€ 24.50
20
3354124510
ref: 20
SEAL,SPARK PLUG CAP
3354124510
€ 7.00
21-1
3354238B00
ref: 21-1
MODEL N/P
SEAL,HIGH TENSION CORD
3354238B00
€ 4.50
21-2
3354298000
ref: 21-2
MODEL R/S/T
SEAL,SPARK PLU
3354298000
€ 4.50
21-3
3354238B00
ref: 21-3
MODEL V
SEAL,HIGH TENSION CORD
3354238B00
€ 4.50
22
3291038A10
ref: 22
PLATE,IGNITOR FITING
3291038A10
€ 7.00
23
0150006123
ref: 23
MODEL N/P
BOLT
0150006123
€ 2.00
24
0832101063
ref: 24
MODEL N/P
LOCK WASHER
0832101063
€ 2.00
24A
0157006123
ref: 24A
MODEL R/S
BOLT
0157006123
€ 1.50
24B
0211236123
ref: 24B
MODEL T/V
BOLT
€ 2.00
25-1
0831626066
ref: 25-1
MODEL N/P
NUT
€ 2.00
25-2
0831620063
ref: 25-2
MODEL R/S/T/V
NUT
0831620063
€ 2.00
