STARTING MOTOR

VS800GL 1993 (P) (E02 E04 E17 E18 E21 E22 E25 E34 E53)

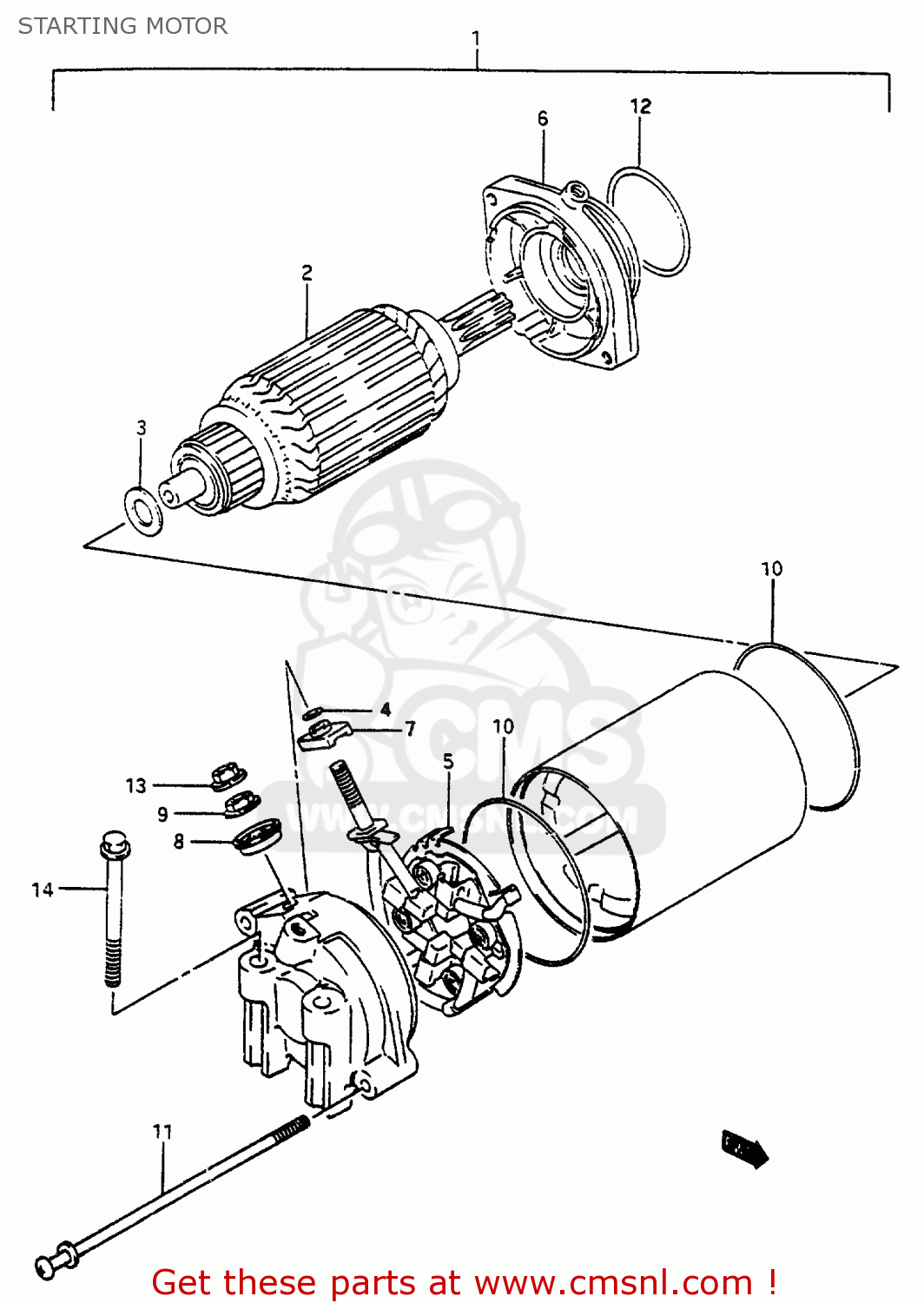

Starting motor diagram VS800GL 1993 (P) (E02 E04 E17 E18 E21 E22 E25 E34 E53)

STARTING MOTOR VS800GL 1993 (P) (E02 E04 E17 E18 E21 E22 E25 E34 E53)
STARTING MOTOR VS800GL 1993 (P) (E02 E04 E17 E18 E21 E22 E25 E34 E53)
STARTING MOTOR VS800GL 1993 (P) (E02 E04 E17 E18 E21 E22 E25 E34 E53)
prices are in EUR
ref
part #
description
quantity
1-1
3110045C00
ref: 1-1
MODEL N/P/R
MOTOR ASSEMBLY,STARTING
€ 472.00
1-2
3110045C01
ref: 1-2
MODEL S/T/V
MOTOR ASSY,STARTING
€ 472.00
2
3131045C00
ref: 2
ARMATURE
€ 127.00
3
3117043400
ref: 3
-31361-47010
SHIM SET,STARTING MOTOR
3117043400
€ 3.50
4
3114338300
ref: 4
O RING
3114338300
€ 3.50
5
3113245C00
ref: 5
HOLDER SET,BRUSH
3113245C00
€ 46.00
6
3115038A00
ref: 6
BRACKET SET
3115038A00
€ 79.50
7
3117238300
ref: 7
BUSHING
3117238300
€ 4.00
8
3117388C00
ref: 8
BUSHING
3117388C00
€ 6.00
9-1
0831032068
ref: 9-1
MODEL N
NUT
€ 2.50
9-2
0831022067
ref: 9-2
MODEL P/R
NUT 6MM
0831022067
€ 2.50
9-3
0831000067
ref: 9-3
MODEL S/T/V
NUT
0831000067
€ 2.50
10
3126444110
ref: 10
O RING
3126444110
€ 8.00
11-1
3128138A00
ref: 11-1
MODEL N/P
BOLT
€ 5.00
11-2
3128131D00
ref: 11-2
MODEL R/S
BOLT
3128131D00
€ 5.00
11-3
3128124B10
ref: 11-3
MODEL T/V
BOLT
3128124B10
€ 5.00
12
3115638A00
ref: 12
O RING
3115638A00
€ 8.00
13
0836135068
ref: 13
NUT
0836135068
€ 2.00
14-1
0154706607
ref: 14-1
MODEL N/P
BOLT
0154706607
€ 2.50
14-2
0154706603
ref: 14-2
MODEL R/S/T/V
BOLT
€ 3.50
