Buy Suzuki VS Parts Online


SECOND AIR (E18,E39 F.NO.VS52A-100508~)

VS800GL 1993 (P) (E02 E04 E17 E18 E21 E22 E25 E34 E53)

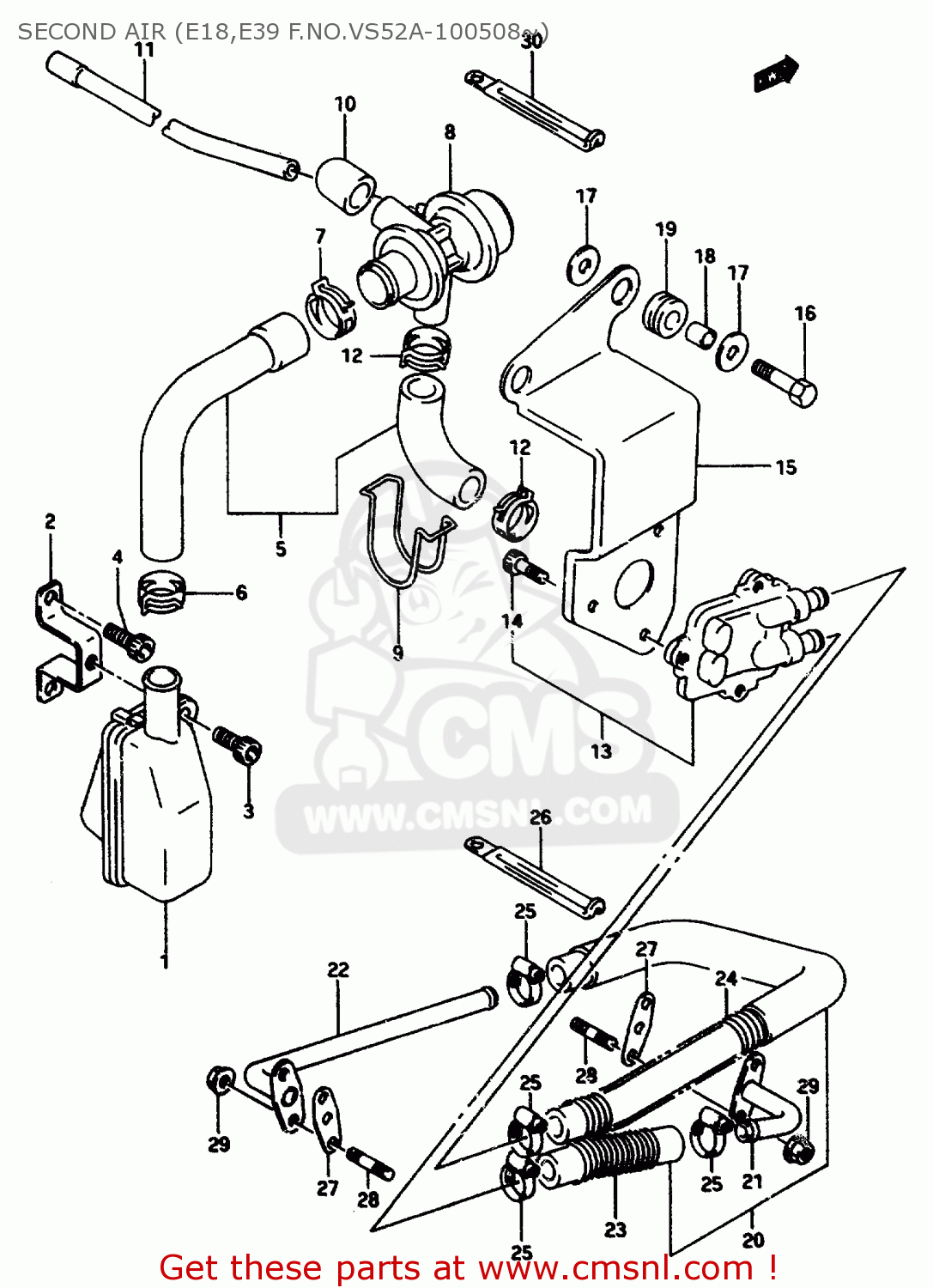

Second air (e18,e39 f.no.vs52a-100508~) diagram VS800GL 1993 (P) (E02 E04 E17 E18 E21 E22 E25 E34 E53)

SECOND AIR (E18,E39 F.NO.VS52A-100508~) VS800GL 1993 (P) (E02 E04 E17 E18 E21 E22 E25 E34 E53)
SECOND AIR (E18,E39 F.NO.VS52A-100508~) VS800GL 1993 (P) (E02 E04 E17 E18 E21 E22 E25 E34 E53)
SECOND AIR (E18,E39 F.NO.VS52A-100508~) VS800GL 1993 (P) (E02 E04 E17 E18 E21 E22 E25 E34 E53)
prices are in EUR
ref
part #
description
quantity
1
1380017E00
ref: 1
CLEANER ASSY,AIR NO.2
1380017E00
€ 36.00
2
1875039A01
ref: 2
BRACKET,2ND AIR CLEANER
€ 11.50
3
0712006167
ref: 3
BOLT
0712006167
€ 2.50
4-1
0712006207
ref: 4-1
MODEL P/R/S
BOLT
€ 3.00
4-2
0712006203
ref: 4-2
MODEL T/V
BOLT
0712006203
€ 3.50
5
1842039810
ref: 5
HOSE SET,2ND AIR NO.2
€ 0.00
6
0940118405
ref: 6
CLIP
€ 2.50
7-1
0940123403
ref: 7-1
MODEL P/R/S/T
CLIP
€ 4.50
7-2
0940125403
ref: 7-2
MODEL V
CLIP
€ 3.00
8
1851020C00
ref: 8
VALVE ASSY,AIR SWITCHING
€ 194.00
9
1852217C00
ref: 9
CLAMP,SWITCHING VALVE
€ 8.00
10
1848339A00
ref: 10
CAP,SWITCHING VALVE
€ 7.50
11
0935945852600
ref: 11
L:600-95
HOSE(4.5X8.5X600)
0935945852600
€ 9.00
12-1
0940121401
ref: 12-1
MODEL P/R
CLIP
€ 3.00
12-2
0940121403
ref: 12-2
MODEL S/T/V
CLIP
€ 3.00
13
1845048B00
ref: 13
VALVE ASSY,2ND AIR REED
1845048B00
€ 125.50
14
0713005167
ref: 14
BOLT
0713005167
€ 2.50
15
1852039A00
ref: 15
BRACKET, 2ND AIR VALVE
€ 41.50
16-1
0120406307
ref: 16-1
~F.NO.109972
BOLT
0120406307
€ 0.50
16-2
0155006307
ref: 16-2
F.NO.109973~
BOLT
0155006307
€ 2.00
17
0916006066
ref: 17
WASHER(6.5X20X1.6)
0916006066
€ 2.00
18
0918006310
ref: 18
SPACER(6.5X10X10)
0918006310
€ 2.00
19
0932010015
ref: 19
CUSHION
0932010015
€ 2.50
20
1841039810
ref: 20
HOSE SET, 2ND AIR
€ 43.50
21
1842039A01
ref: 21
PIPE,2ND AIR FR
€ 21.00
22
1843039A10
ref: 22
PIPE,2ND AIR RR
€ 35.50
23
1843439A00
ref: 23
SPRING, FRONT HOSE
€ 6.00
24
1843339A00
ref: 24
SPRING, REAR HOSE
€ 9.50
25-1
0940222501
ref: 25-1
~F.NO.109972
CLAMP
€ 6.00
25-2
0940222511
ref: 25-2
F.NO.109973~
CLAMP
0940222511
€ 6.00
26
0940406433
ref: 26
CLAMP(L:80)
0940406433
€ 3.00
27
1844145C00
ref: 27
GASKET,SECOND AIR PIPE (N (NAS)
1844145C00
€ 6.00
28
0142106168
ref: 28
STUD 6X16
0142106168
€ 2.00
29-1
0915906017
ref: 29-1
MODEL P
NUT
0915906017
€ 2.50
29-2
0831610067
ref: 29-2
MODEL R/S/T/V
NUT
0831610067
€ 2.00
30
0940406433
ref: 30
CLAMP(L:80)
0940406433
€ 3.00
