FRONT CALIPER (MODEL P/R/S/T/V)

VS800GL 1993 (P) (E02 E04 E17 E18 E21 E22 E25 E34 E53)

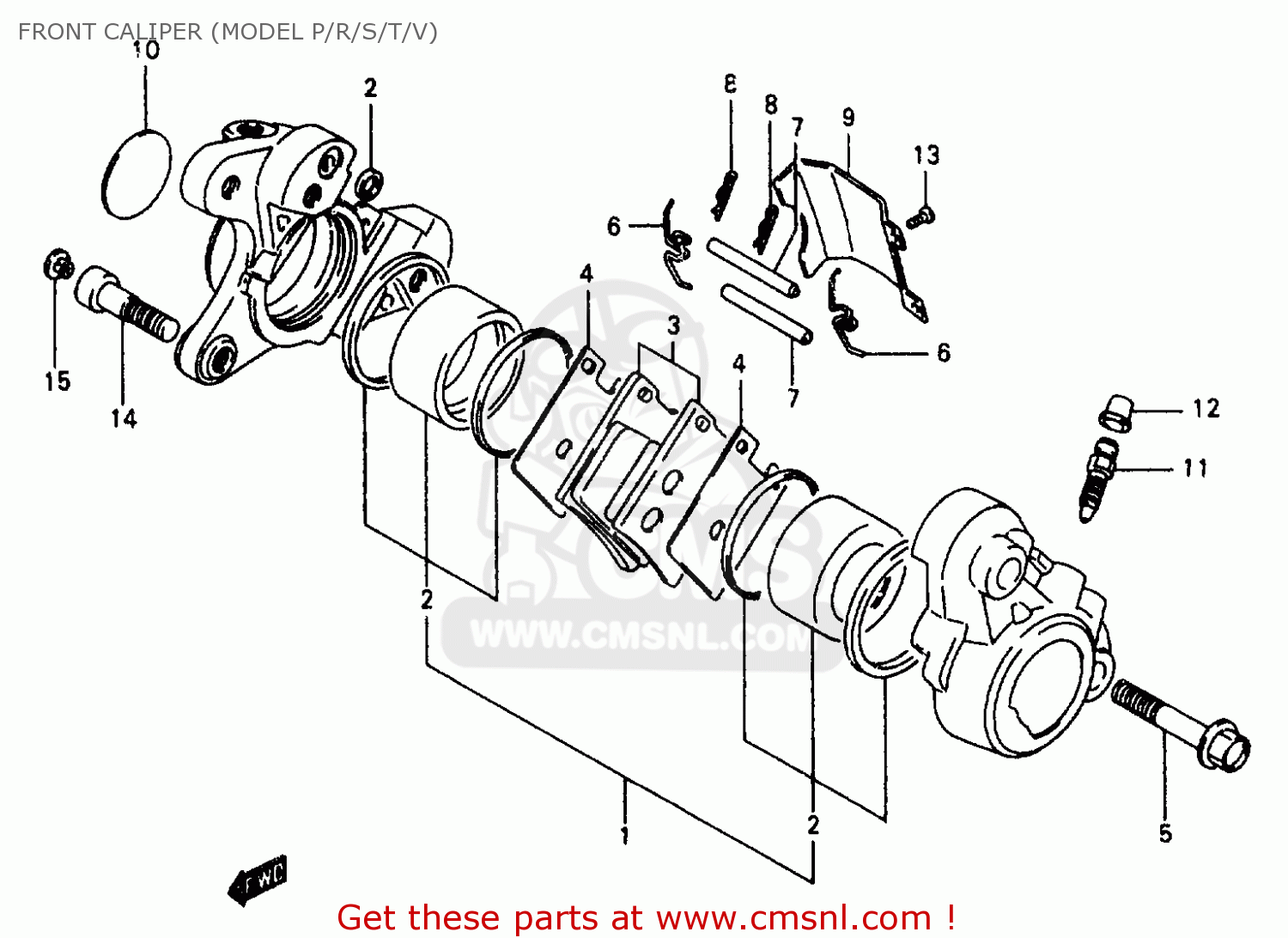

Front caliper (model p/r/s/t/v) diagram VS800GL 1993 (P) (E02 E04 E17 E18 E21 E22 E25 E34 E53)

FRONT CALIPER (MODEL P/R/S/T/V) VS800GL 1993 (P) (E02 E04 E17 E18 E21 E22 E25 E34 E53)
FRONT CALIPER (MODEL P/R/S/T/V) VS800GL 1993 (P) (E02 E04 E17 E18 E21 E22 E25 E34 E53)
FRONT CALIPER (MODEL P/R/S/T/V) VS800GL 1993 (P) (E02 E04 E17 E18 E21 E22 E25 E34 E53)
prices are in EUR
ref
part #
description
quantity
0
5910038A02
ref: 0
CALIPER ASSEMBLY,FRONT,RIGHT
€ 595.50
1
6910038810
ref: 1
PISTON SET
€ 176.00
2
6910038830
ref: 2
SEAL SET,PISTON
6910038830
€ 38.50
3
5910038820
ref: 3
-59130-38B10
PAD SET (NAS)
5910038820
€ 41.50
4
5937133410
ref: 4
SHIM,PAD
5937133410
€ 15.00
5
5914516700
ref: 5
BOLT,HOUSING
5914516700
€ 8.00
6
5914316700
ref: 6
SPRING
5914316700
€ 7.50
7
6914145000
ref: 7
PIN,PAD
6914145000
€ 6.50
8
6914245000
ref: 8
CLIP,PAD PIN
6914245000
€ 4.50
9-1
5915138B00
ref: 9-1
MODEL P/R
COVER,CALIPER
€ 58.00
9-2
5915138B01
ref: 9-2
MODEL S/T/V
COVER,CALIPER HOUSING,DUST
5915138B01
€ 58.00
10
5915224A00
ref: 10
CAP,CALIPER
5915224A00
€ 23.50
11
5912118410
ref: 11
BLEEDER
5912118410
€ 8.00
12
5515666310
ref: 12
CAP,BLEEDER PLUG
5515666310
€ 6.00
13-1
5915338B00
ref: 13-1
MODEL P/R -59153-38B
SCREW,CALIPER COVER (4X
€ 7.50
13-2
5915338B10
ref: 13-2
MODEL S/T/V
SCREW,CALIPER COVER(4X6)
5915338B10
€ 7.50
14
0910610038
ref: 14
BOLT(10X33)
0910610038
€ 4.50
15
0925008014
ref: 15
CAP(OD:12)
0925008014
€ 3.50
