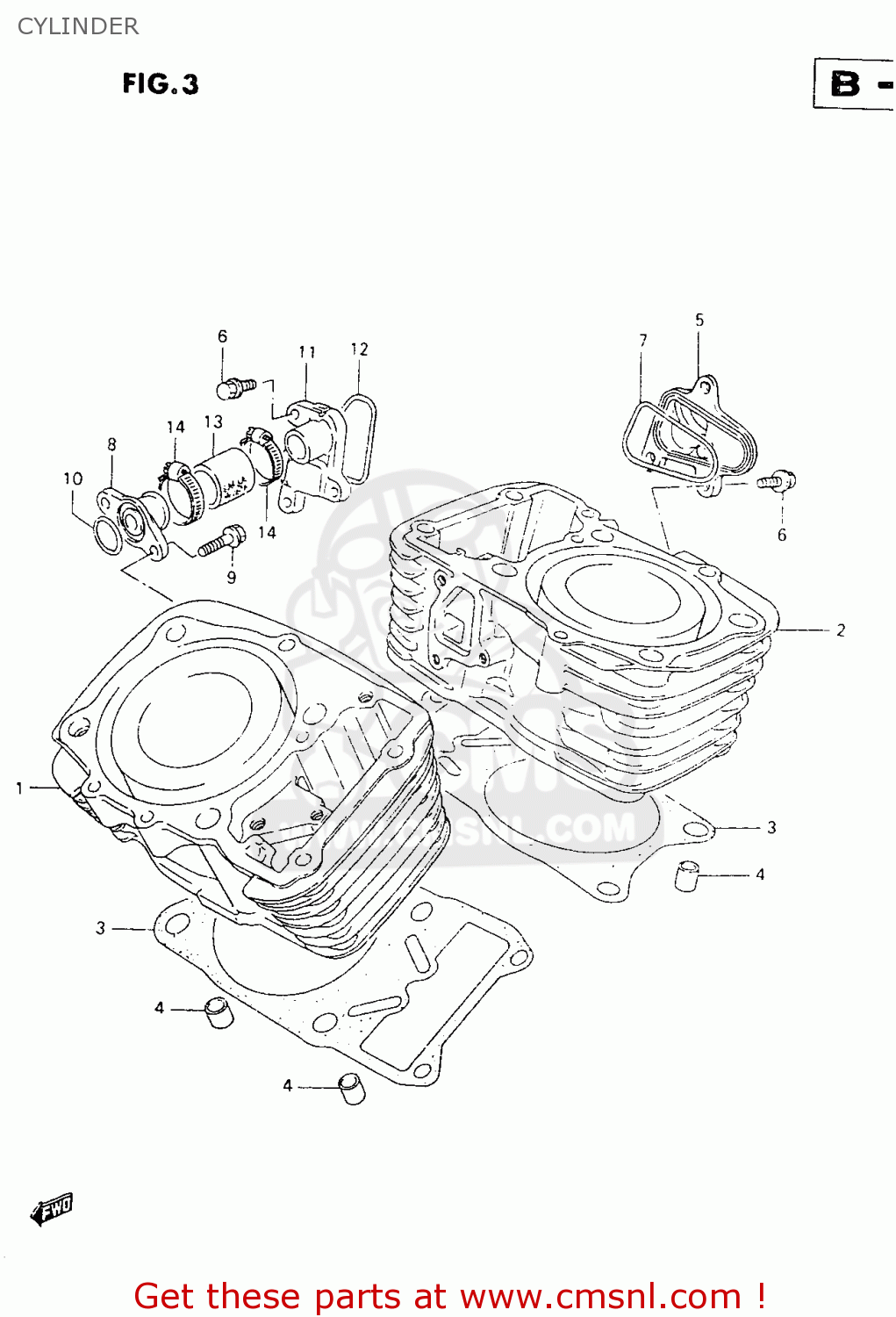

CYLINDER

ref

part #

description

quantity

1

1121048E50
ref: 1

CYLINDER COMP,FRONT

€ 458.50

2

1122048E50
ref: 2

CYLINDER COMP,REAR

€ 458.50

3-1

1124145C20
ref: 3-1

GASKET,CYLINDER (NAS)

€ 16.50

3-2

1124145C10
ref: 3-2
E18

GASKET,CYLINDER

€ 21.50

4

0421113189
ref: 4

PIN

€ 2.50

5

1123748E00
ref: 5

CHAMBER,WATER INLET

€ 29.00

6

0154706207
ref: 6

BOLT

€ 2.50

7

1124738A00
ref: 7

O RING,INLET WATER CHAMBER

€ 3.00

8

1123545C10
ref: 8

UNION,WATER INLET

€ 16.00

9

0154706167
ref: 9

BOLT

€ 2.00

10

0928016005
ref: 10

O RING(D:2.4,ID:15.8)

€ 1.50

11

1123645C10
ref: 11

CHAMBER,WATER OUTLET

€ 26.50

12

1124638A00
ref: 12

O RING,OUTLET WATER CHAMBER

€ 4.50

13-1

1785328C20
ref: 13-1
MODEL V

HOSE,RADIATOR JOINT NO.1

€ 17.50

13-2

1785101A00
ref: 13-2
MODEL W

HOSE,RADIATOR INLET

€ 17.50

14

0940228511
ref: 14

CLAMP

€ 8.50
