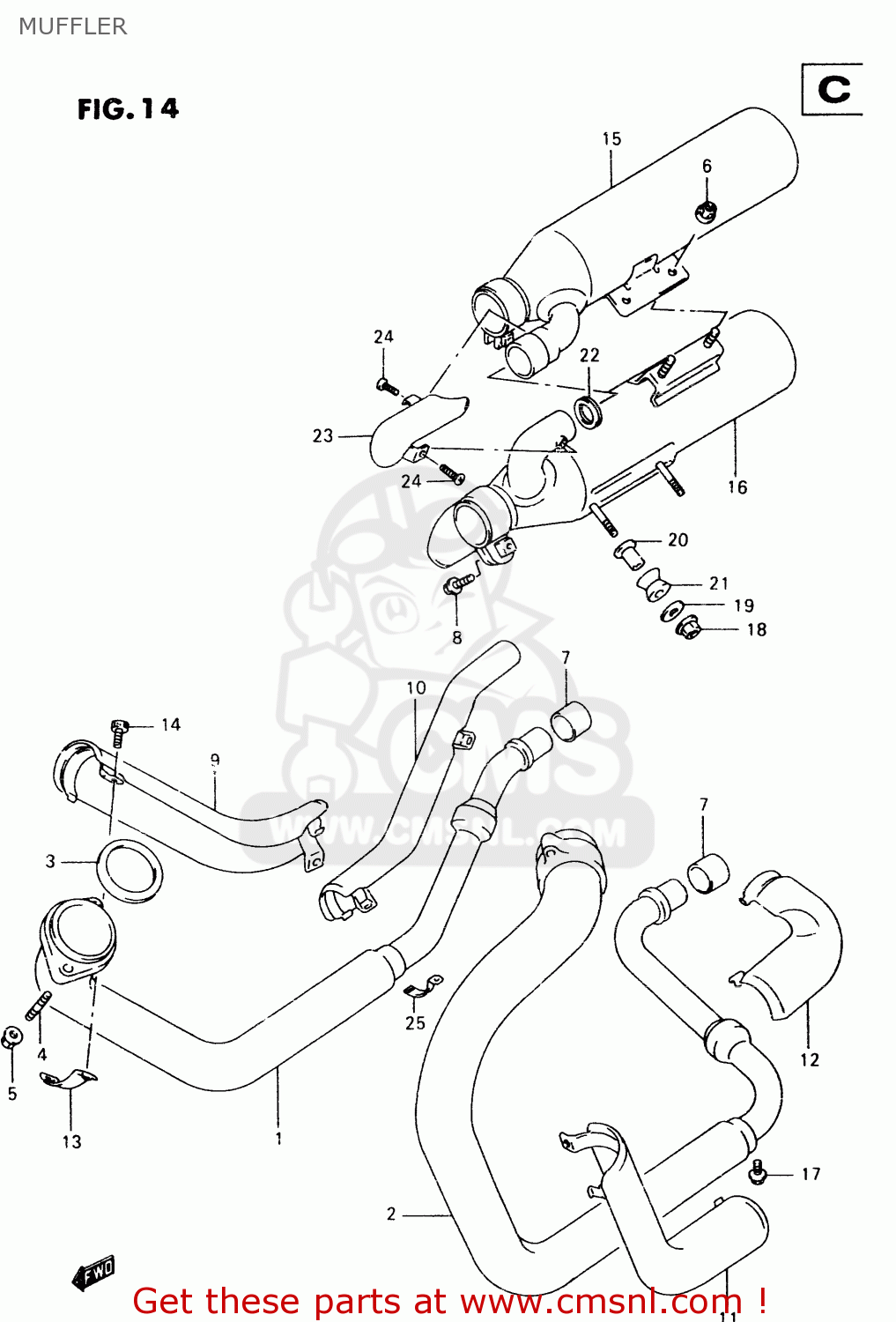

MUFFLER

ref

part #

description

quantity

1

1415048E10
ref: 1

PIPE,EXHAUST,R

€ 253.50

2

1416048E00
ref: 2

PIPE,EXHAUST,L

€ 388.00

3

1418145C00
ref: 3

GASKET,EXHAUST PIPE (NAS)

€ 6.50

4

0910808142
ref: 4

BOLT,STUD

€ 3.00

5

0831310087
ref: 5

NUT

€ 2.50

6

0831931087
ref: 6

NUT

€ 2.50

7

1477114D00
ref: 7

CONNECTOR,MUFFLER JOINT

€ 19.50

8

0910608137
ref: 8

BOLT(8X33)

€ 5.50

9

1418048E00
ref: 9

COVER,EXHAUST PIPE,R FR

€ 85.50

10

1418048E11
ref: 10

COVER,EXHAUST PIPE,R RR

€ 103.00

11

1419048E00
ref: 11

COVER,EXHAUST PIPE,L FR

€ 82.00

12

1419048E10
ref: 12

COVER COMP,EXHAUST PIPE,LEFT

€ 65.00

13

1418548E00
ref: 13

CLAMP,EXHAUST PIPE COVER

€ 6.50

14

0910606084
ref: 14

BOLT(6X20)

€ 4.00

15

1431048E10
ref: 15

BODY,MUFFLER,R

€ 391.00

16

1434048E10
ref: 16

BODY,MUFFLER,L

€ 818.00

17

0156006103
ref: 17

BOLT

€ 2.50

18

0831931087
ref: 18

NUT

€ 2.50

19-1

0916008085
ref: 19-1
MODEL V

WASHER (8.2X26X1.6)

€ 2.00

19-2

0916008133
ref: 19-2
MODEL W

WASHER (8.5X26X1.6)

€ 2.00

20

0918008151
ref: 20

SPACER(8.6X12X17.5)

€ 6.00

21

0932012043
ref: 21

CUSHION

€ 8.00

22

1418148E00
ref: 22

GASKET,MUFFLER JOINT

€ 8.50

23

1479048E00
ref: 23

COVER,MUFFLER

€ 51.50

24

0913906076
ref: 24

SCREW(6X10)

€ 2.50

25

1418548E10
ref: 25

CLAMP,EXHAUST PIPE COVER,R RR

€ 7.00

all assemblies
