FRONT CALIPER

VZ800 2000 (Y)

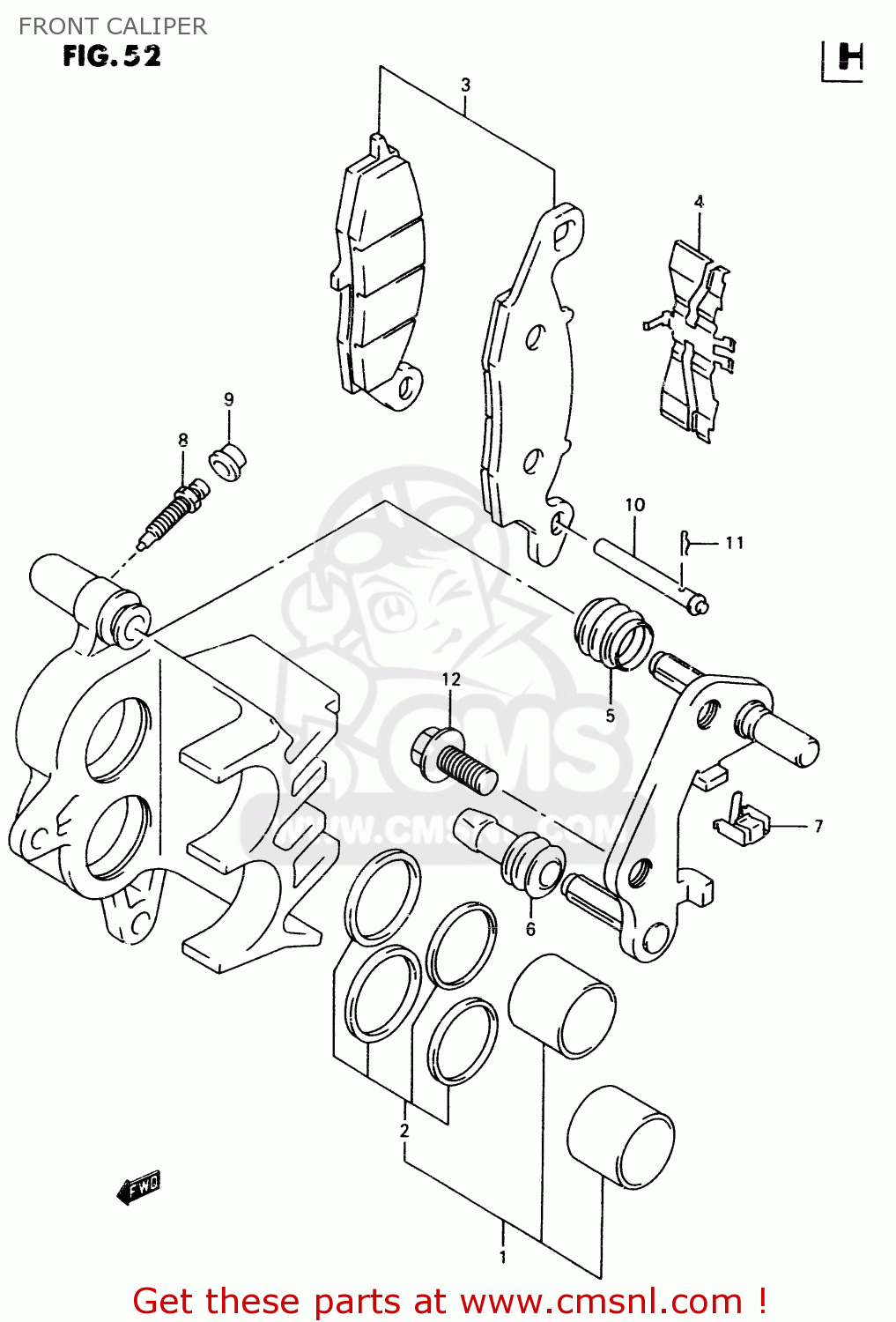

Front caliper diagram VZ800 2000 (Y)

FRONT CALIPER VZ800 2000 (Y)

FRONT CALIPER VZ800 2000 (Y)

prices are in EUR

ref

part #

description

quantity

0

5910033D20
ref: 0

CALIPER ASSEMBLY,FRONT,RIGHT

€ 552.00

1

5930033830
ref: 1

PISTON SET

€ 65.50

2

5930033840
ref: 2

SEAL SET,PISTON

€ 26.50

3

5910033870
ref: 3

PAD SET (NAS)

€ 57.50

4

5911533D00
ref: 4

SPRING,PAD,R

€ 12.00

5

5911244B00
ref: 5

BOOT,AXLE

€ 8.00

6

5931336500
ref: 6

INSULATOR,AXLE

€ 5.50

7

5911633D00
ref: 7

GUIDE,PAD

€ 6.50

8

5912118410
ref: 8

BLEEDER

€ 8.00

9

5515666310
ref: 9

CAP,BLEEDER PLUG

€ 6.00

10

5914144B01
ref: 10

PIN,PAD

€ 8.00

11

6914245000
ref: 11

CLIP,PAD PIN

€ 4.50

12

0155010257
ref: 12

BOLT

€ 3.00
