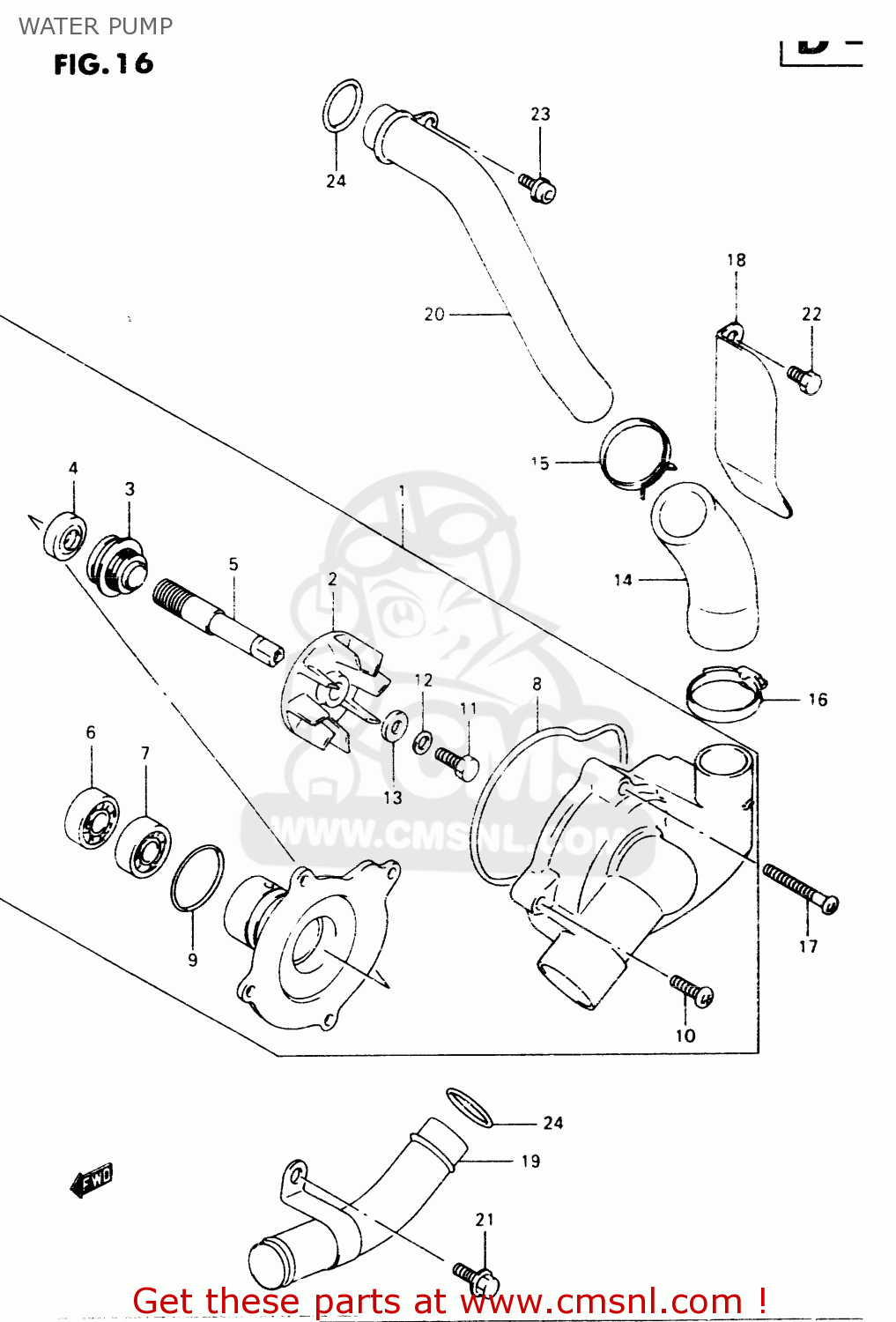

WATER PUMP

ref

part #

description

quantity

1

1740048E00
ref: 1

PUMP ASSY,WATER

€ 513.50

2

1749117E00
ref: 2

IMPELLER

€ 15.00

3

1747046A00
ref: 3

SEAL,MECHANICAL

€ 21.50

4

0928310004
ref: 4

SEAL,OIL(10X21X5)

€ 4.50

5

1751148E00
ref: 5

SHAFT

€ 131.50

6

0926210014
ref: 6

BEARING(10X26X8)

€ 13.00

7

0926212001
ref: 7

BEARING(12X28X8)

€ 15.00

8

1741833400
ref: 8

O RING

€ 4.00

9

1743533400
ref: 9

O RING,WATER PUMP HOLDER

€ 13.00

10

0211206163
ref: 10

SCREW 6X16

€ 2.00

11

0910006099
ref: 11

BOLT(6X13)

€ 2.00

12

0916406006
ref: 12

WASHER

€ 2.50

13

0916806025
ref: 13

GASKET(6X15X2.2) (NAS)

€ 3.00

14

1785948E00
ref: 14

HOSE,WATER PUMP OUTLET

€ 13.50

15

0940126404
ref: 15

CLAMP

€ 3.00

16

0940232511
ref: 16

CLAMP

€ 11.50

17

0154706353
ref: 17

BOLT

€ 3.00

18

1787148E00
ref: 18

PLATE,WATER HOSE

€ 6.00

19

1788048E00
ref: 19

PIPE,WATER PUMP INLET

€ 23.50

20

1789048E00
ref: 20

PIPE,WATER PUMP OUTLET

€ 31.00

21

0155006123
ref: 21

BOLT

€ 2.50

22

0155006103
ref: 22

BOLT

€ 2.50

23

0712006127
ref: 23

BOLT

€ 3.00

24

0928021015
ref: 24

O RING(D:2.7,ID:21.4)

€ 3.00
