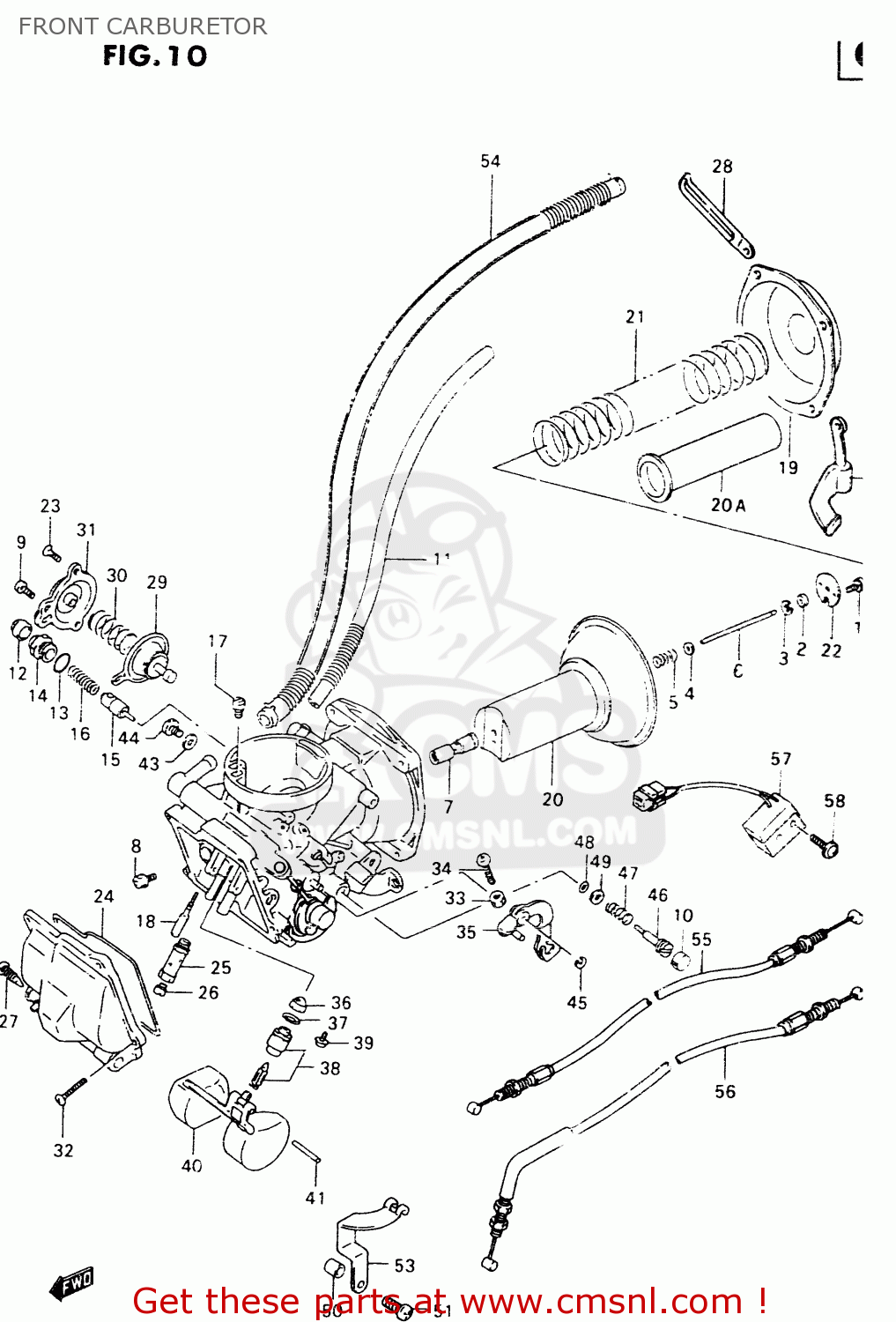

FRONT CARBURETOR

ref

part #

description

quantity

0

1321048E60
ref: 0

CARBURETOR ASSY, FR

€ 583.00

0

1321048E90
ref: 0
E18

CARBURETOR ASSY, FR

€ 653.50

0

1321048E00
ref: 0
P37

CARBURETOR ASSY, FR

€ 0.00

1

0211233073
ref: 1

SCREW

€ 0.00

2

1338747010
ref: 2

RING

€ 7.50

3

1339410010
ref: 3

CLIP

€ 4.50

4

1338244030
ref: 4

WASHER

€ 3.50

5

1338844030
ref: 5

SPRING

€ 6.00

6-1

1338338E00
ref: 6-1

NEEDLE,JET

€ 17.50

6-2

1338338E00
ref: 6-2
E18

NEEDLE,JET

€ 17.50

7

0949400592
ref: 7

JET,NEEDLE(P-4)

€ 32.50

8

1360538B00
ref: 8

SCREW

€ 7.50

9

0211204107
ref: 9

SCREW

€ 2.00

10

1328105A00
ref: 10
EXCEPT P37

PLUG

€ 3.50

11

1368448E00
ref: 11

HOSE

€ 9.50

12

1368104010
ref: 12

CAP

€ 3.00

13

1327847090
ref: 13

O RING

€ 2.00

14

1341838A00
ref: 14

HOLDER,GUIDE

€ 11.50

15

1341101400
ref: 15

PLUNGER,STARTER

€ 11.50

16

1341708210
ref: 16

SPRING

€ 4.50

17

0949265005
ref: 17

JET,AIR(65)

€ 7.50

18

0949240021
ref: 18

JET,PILOT(40)

€ 17.50

19

1350245C10
ref: 19

COVER

€ 34.00

20-1

1350005A10
ref: 20-1

DIAPHRAGM,CARBURETOR

€ 178.00

20-2

1350045C00
ref: 20-2
E18

DIAPHRAGM ASSY

€ 211.00

20A

1348545C00
ref: 20A
E18

RING

€ 19.00

21

1350338B00
ref: 21

SPRING,DIAPHRAGM

€ 12.00

22

1338937400
ref: 22

PLATE

€ 5.50

23

0212204103
ref: 23

SCREW,UPPER

€ 2.50

24

1325138A00
ref: 24

O RING,FLOAT CHAMBER

€ 6.50

25

1338505A11
ref: 25

HOLDER,MAIN JET

€ 14.00

26

0949190008
ref: 26

JET,MAIN (90)

€ 17.50

27

1324713A00
ref: 27

SCREW,DRAIN

€ 5.50

28

0940406432
ref: 28

CLAMP(L:65)

€ 2.50

29

1348005A10
ref: 29

DIAPHRAGM ASSY

€ 54.50

30-1

1348145C10
ref: 30-1

SPRING

€ 5.50

30-2

1348137300
ref: 30-2
E18

SPRING

€ 0.00

31

1348438A00
ref: 31

COVER

€ 20.50

32

1360248B10
ref: 32

SCREW

€ 3.00

33

0831000047
ref: 33

NUT

€ 2.00

34

0211204307
ref: 34

SCREW

€ 0.00

35

1355445C20
ref: 35
<-13554-45C00

LEVER ASSY

€ 38.50

36

1337684110
ref: 36

FILTER

€ 6.50

37

1337444080
ref: 37

O-RING,NEEDLE VALVE

€ 6.00

38-1

1337039A00
ref: 38-1

VALVE ASSY,NEEDLE

€ 67.50

38-2

1337038E00
ref: 38-2
P37

VALVE ASSY,NEEDLE(NI)

€ 67.50

39

1360205A10
ref: 39

SCREW

€ 4.00

40

1325038B00
ref: 40

FLOAT

€ 32.00

41

1325420010
ref: 41

PIN,FLOAT

€ 3.00

42

0211205127
ref: 42

SCREW

€ 2.50

43

1352346110
ref: 43

GASKET,DRAIN PLUG (NAS)

€ 3.00

44

0912505122
ref: 44

SCREW(5X6)

€ 4.00

45

1341538300
ref: 45

E RING

€ 2.00

46

1327947070
ref: 46

SCREW,PILOT

€ 11.50

47

1326847070
ref: 47

SPRING

€ 5.00

48

1329529900
ref: 48

O RING,PILOT AIR SCREW

€ 4.00

49

1329129900
ref: 49

WASHER

€ 2.00

50

1333133E00
ref: 50

RING

€ 4.00

51

1360248E00
ref: 51

SCREW

€ 2.50

52

1362748E00
ref: 52

BRACKET

€ 14.50

53

1362748E10
ref: 53

BRACKET

€ 10.00

54

1368348E00
ref: 54

HOSE ASSY

€ 40.00

55

1364148E00
ref: 55

CABLE,IDLE SYNCRO

€ 20.00

56

1364248E00
ref: 56

CABLE,THROTTLE RETURN F-R

€ 25.00

57

1363038E00
ref: 57
E18,P37

SWITCH,THROTTLE

€ 35.50

58

1360338E90
ref: 58
E18,P37

SCREW,THROTTLE SWITCH

€ 4.50
