FRONT AIR CLEANER

VZ800 2000 (Y)

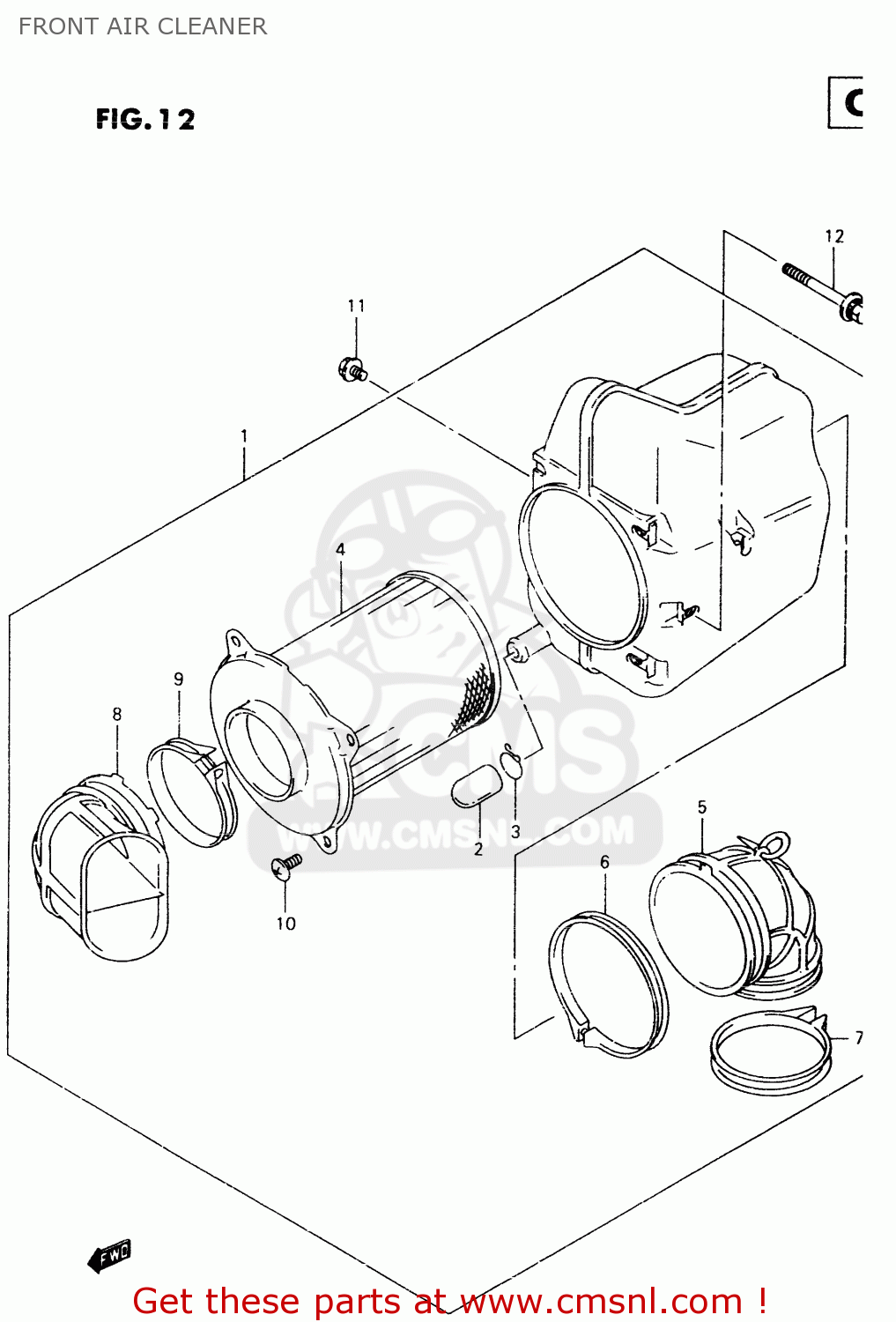

Front air cleaner diagram VZ800 2000 (Y)

FRONT AIR CLEANER VZ800 2000 (Y)

FRONT AIR CLEANER VZ800 2000 (Y)

prices are in EUR

ref

part #

description

quantity

1

1370048E50
ref: 1

CLEANER ASSY,AIR FR

€ 189.50

2

1385941B10
ref: 2

PLUG

€ 5.50

3

0940114301
ref: 3

CLIP

€ 2.00

4

1378048E00
ref: 4

FILTER ASSY

€ 36.00

5

1388138B00
ref: 5

TUBE,AIR CLEANER OUTLET

€ 25.50

6

0940272207
ref: 6

CLAMP

€ 7.50

7

0940258208
ref: 7

CLAMP

€ 5.50

8

1389145C30
ref: 8

TUBE,INLET

€ 23.00

9

0940256208
ref: 9

CLAMP

€ 3.50

10

0214205107
ref: 10

SCREW

€ 2.50

11

0158006123
ref: 11

BOLT

€ 2.00

12

0158006553
ref: 12

BOLT

€ 2.50
