REAR BOX

VZ800 2000 (Y)

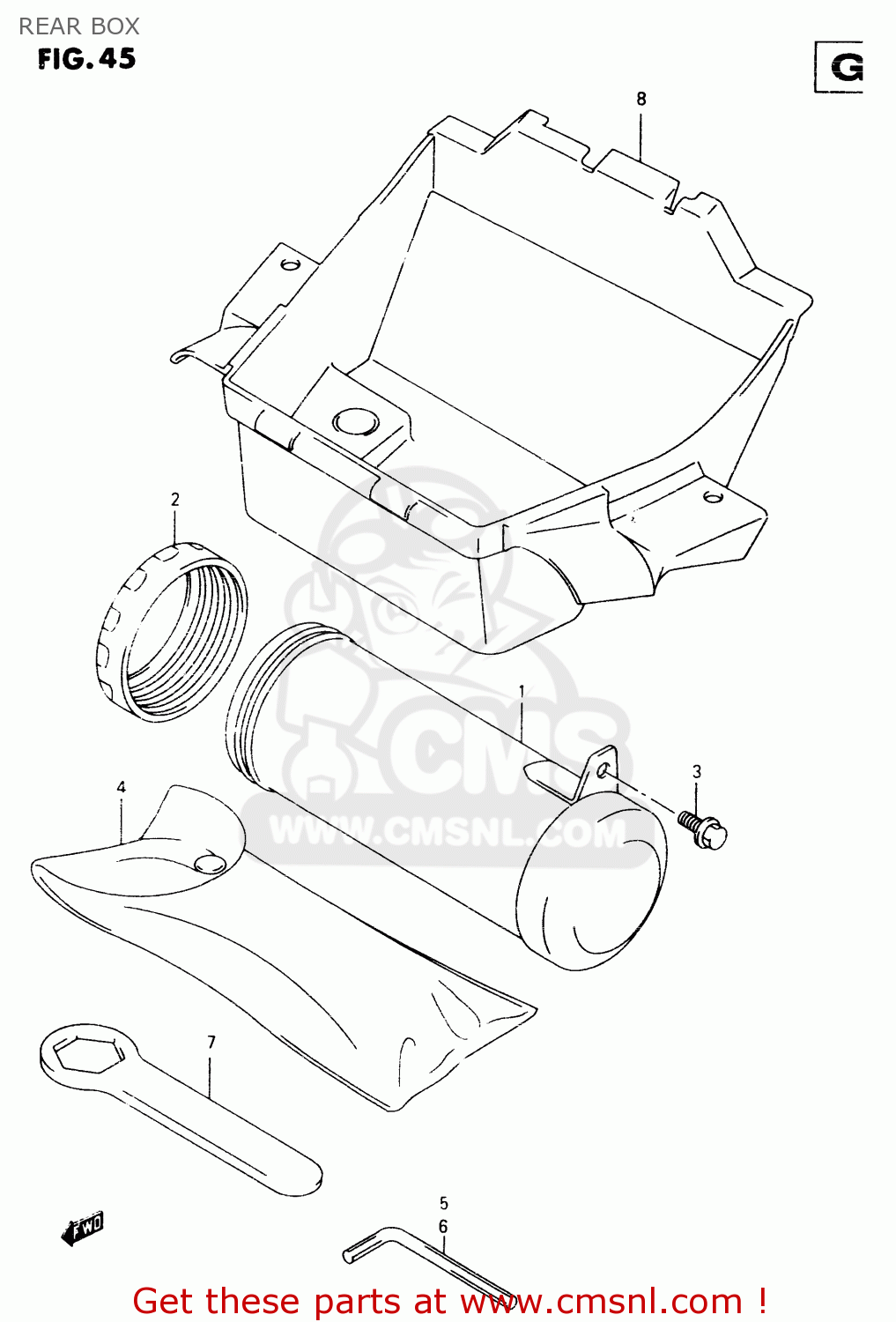

Rear box diagram VZ800 2000 (Y)

REAR BOX VZ800 2000 (Y)

REAR BOX VZ800 2000 (Y)

prices are in EUR

ref

part #

description

quantity

1

4155048E00
ref: 1

HOLDER,TOOL

€ 328.00

2

4155548E00
ref: 2

CAP,TOOL HOLDER

€ 40.00

3

0155006123
ref: 3

BOLT

€ 2.50

4

0980021012
ref: 4

TOOL ASSY

€ 40.00

5

0981600103
ref: 5

SPANNER,HEXAGON(4)

€ 3.00

6

0981600050
ref: 6

SPANNER,HEXAGON(6)

€ 5.50

7

0981700035
ref: 7

RING SPANNER(22)

€ 6.50

8-1

9221148E00
ref: 8-1
MODEL V

BODY,LUGGAGE BOX

€ 28.00

8-2

9221148E01
ref: 8-2
MODEL W

BODY,LUGGAGE BOX

€ 28.00

all assemblies
