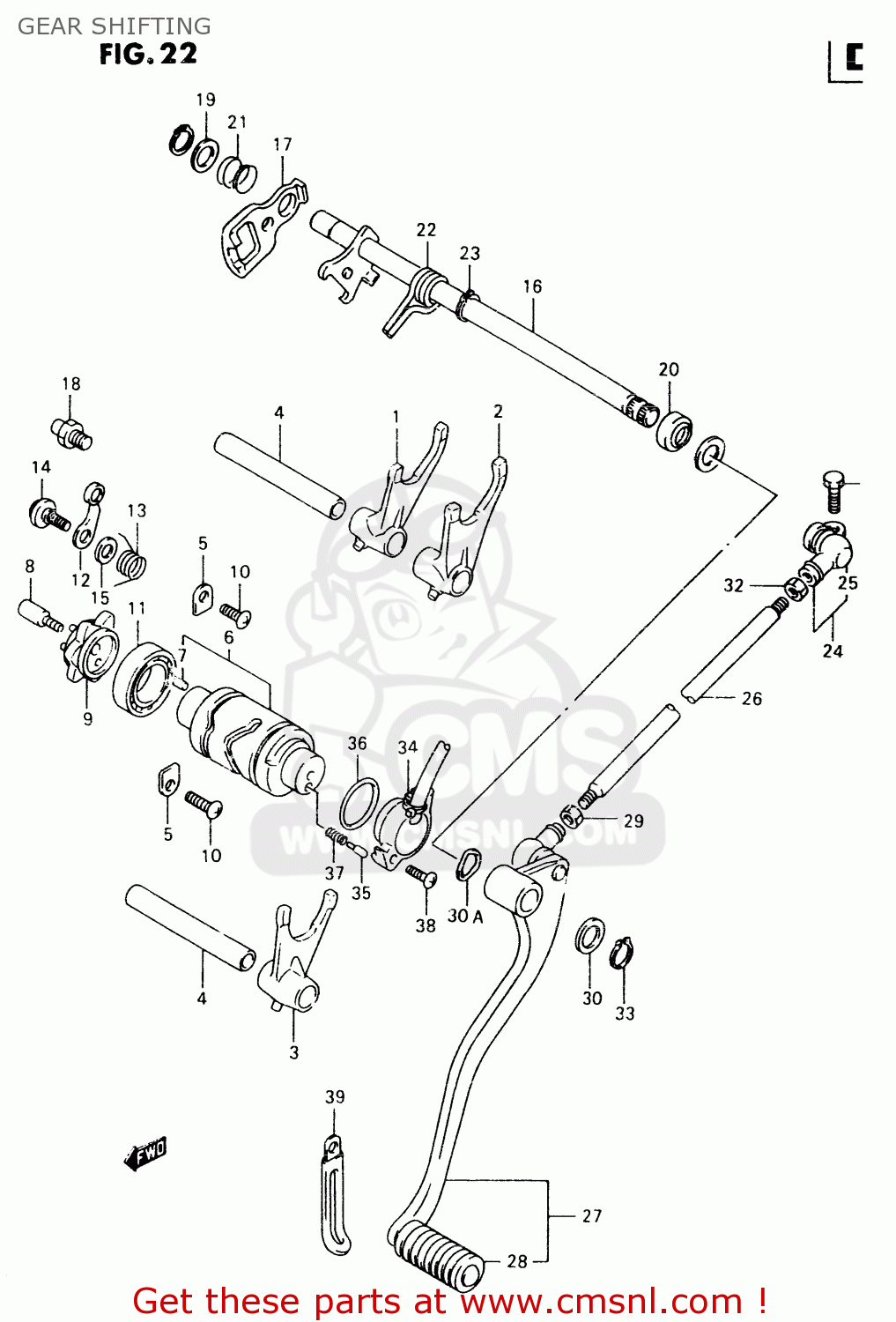

GEAR SHIFTING

ref

part #

description

quantity

1

2521144B00
ref: 1

FORK,GEAR SHIFT NO.1

€ 94.00

2

2522144B00
ref: 2

FORK,GEAR SHIFT NO.2

€ 86.00

3

2523148E00
ref: 3

FORK,GEAR SHIFT NO.3

€ 61.00

4

2541144B00
ref: 4

SHAFT,GEAR SHIFT FORK NO.1

€ 19.50

5

2474121A00
ref: 5

RETAINER

€ 2.00

6

2531048E00
ref: 6

CAM,GEAR SHIFT

€ 153.50

7

0422104089
ref: 7

PIN

€ 1.50

8

2531212C00
ref: 8

PIN,SHIFT CAM DRIVEN GEAR

€ 6.00

9

2538113E10
ref: 9

PLATE,GEAR SHIFT CAM

€ 40.00

10

0211206123
ref: 10

SCREW

€ 1.50

11

0811369050
ref: 11

BEARING

€ 36.00

12

2535026D01
ref: 12

STOPPER,GEAR SHIFT CAM

€ 8.50

13

2535513E10
ref: 13

SPRING,SHIFT CAM STOPPER

€ 4.00

14

0911106041
ref: 14

BOLT(6X14.3)

€ 3.00

15

0821106141
ref: 15

WASHER

€ 2.50

16

2551048E00
ref: 16

SHAFT,GEAR SHIFT

€ 90.50

17-1

2551213E10
ref: 17-1
MODEL V

PLATE,GEAR SHIFT CAM D

€ 18.00

17-2

2551213E11
ref: 17-2
MODEL W

PLATE,GEAR SHIFT CAM DRIVE

€ 18.00

18

2567101000
ref: 18

STOPPER,GEAR SHIFT CAM

€ 3.00

19

0918114167
ref: 19

SHIM(14X22X1)

€ 3.50

20

0928314006
ref: 20

SEAL,OIL(14X22X6)

€ 6.50

21

0944017009
ref: 21

SPRING

€ 1.50

22

0944420001
ref: 22

SPRING

€ 5.00

23

0833131146
ref: 23

CIRCLIP

€ 2.00

24

2552009301
ref: 24

ARM,GEAR SHIFT SHAFT

€ 53.50

25

2552647000
ref: 25

COVER,DUST

€ 3.50

26

2552548E00
ref: 26

ROD,GEAR SHIFT LINK

€ 16.50

27

2560048E00
ref: 27

LEVER ASSY,GEAR SHIFT

€ 74.50

28

2565220C00
ref: 28

RUBBER,GEAR SHIFT PEDAL

€ 8.00

29

0914006011
ref: 29

NUT

€ 1.50

30

0916012011
ref: 30

WASHER(12.5X20X1)

€ 1.50

30A

0916412019
ref: 30A

WASHER

€ 2.00

31

0154706207
ref: 31

BOLT

€ 2.50

32

0831000067
ref: 32

NUT

€ 2.50

33

0833131126
ref: 33

CIRCLIP,12 MM

€ 2.00

34-1

3772048E10
ref: 34-1

BASE ASSY,GEAR SHIFT TERMINAL

€ 102.00

34-2

3772048E20
ref: 34-2
E24

BASE ASSY,NEUTRAL SW TERMINAL

€ 78.00

35

0920905011
ref: 35

PIN(5X15.5)

€ 2.00

36

0928026007
ref: 36

O RING(D:2.4,ID:25.7)

€ 6.50

37

0944004010
ref: 37

SPRING

€ 1.50

38

0211205163
ref: 38

SCREW

€ 2.00

39

0940408417
ref: 39

CLAMP L:62

€ 3.00
