HANDLEBAR

VZ800 2000 (Y)

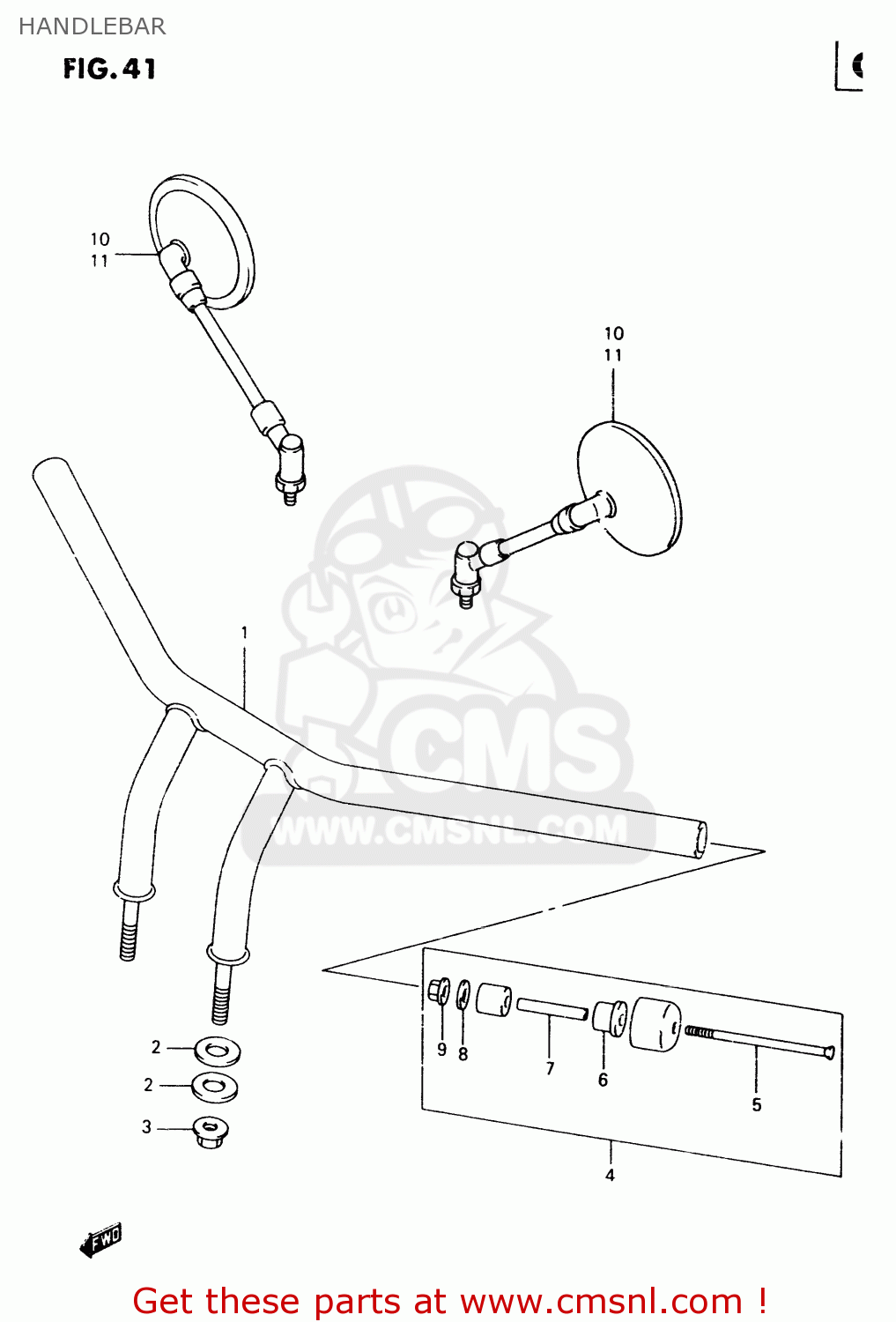

Handlebar diagram VZ800 2000 (Y)

HANDLEBAR VZ800 2000 (Y)

HANDLEBAR VZ800 2000 (Y)

prices are in EUR

ref

part #

description

quantity

1

5611048E00
ref: 1

HANDLEBAR

€ 763.50

2

5624048E01
ref: 2

CUSHION,HANDLEBAR

€ 9.00

3

0831931128
ref: 3

NUT 12MM

€ 4.00

4

5620018831
ref: 4

BALANCER SET, HANDLEBAR

€ 0.00

5

0912706019
ref: 5

SCREW(6X110)

€ 4.50

6

5627226D01
ref: 6

EXPANDER,HANDLE BALANCER NO.2

€ 5.00

7

5627617D00
ref: 7

SPACER,EXPANDER

€ 2.50

8

0916006013
ref: 8

WASHER (6.5X18X2)

€ 10.50

9

0915906024
ref: 9

NUT

€ 2.00

10

5650038AB0
ref: 10

MIRROR ASSEMBLY,REAR VIEW

€ 209.00

11

5650038AC0
ref: 11
E24

MIRROR ASSY,RR VIEW

€ 66.50
