CARBURETOR

XF650 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34)

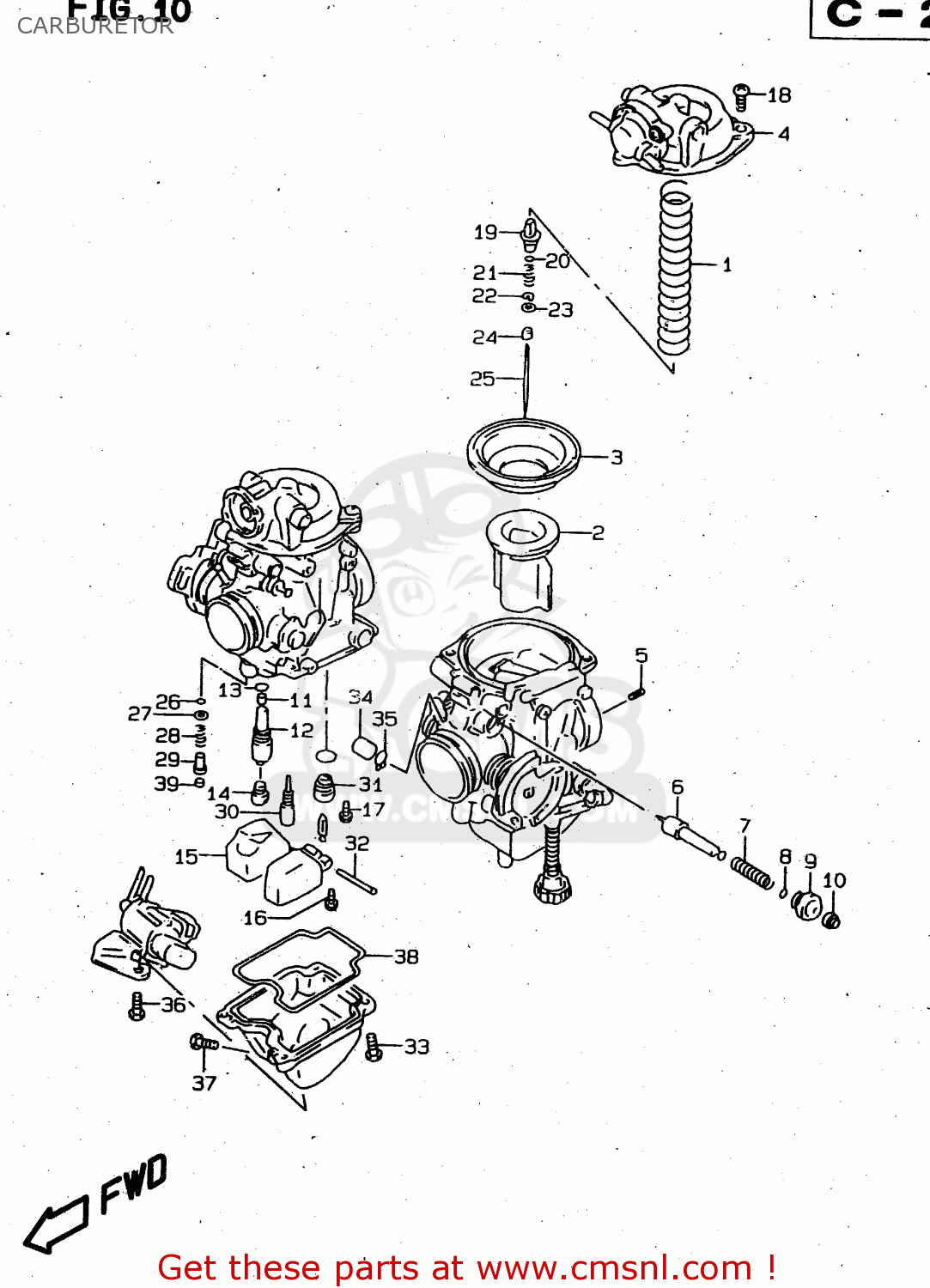

Carburetor diagram XF650 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34)

CARBURETOR XF650 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34)
CARBURETOR XF650 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34)
CARBURETOR XF650 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
0
1320104F00
ref: 0
E2, E4, E17, E24, E2
CARBURETOR ASSY, LH
€ 600.50
0
1320204F00
ref: 0
E2, E4, E17, E24, E2
CARBURETOR ASSY, RH
€ 548.50
0
1320104F10
ref: 0
E18
CARBURETOR ASSY, LH
€ 446.00
0
1320204F10
ref: 0
E18
CARBURETOR ASSY, RH
1320204F10
€ 229.00
0
1320104F30
ref: 0
XF650UV/UW/UX E22
CARBURETOR ASSY, LH
€ 0.00
0
1320204F30
ref: 0
XF650UV/UW/UX E22
CARBURETOR ASSY, RH
€ 0.00
1
1357304F00
ref: 1
SPRING
1357304F00
€ 11.50
2
1350104F00
ref: 2
EXCEPT XF650UV/UW/UX
VALVE,PISTON
1350104F00
€ 87.00
2
1350104F30
ref: 2
XF650UV/UW/UX E22
VALVE,PISTON
1350104F30
€ 42.00
3
1350704F00
ref: 3
DIAPHRAGM
1350704F00
€ 23.50
4
1350204F00
ref: 4
COVER ASSY,DIAPHRAGM,L
€ 71.00
4
1350204F10
ref: 4
COVER ASSY,DIAPHRAGM,R
€ 62.50
5
0949230013
ref: 5
JET,POWER(150)
0949230013
€ 13.00
6
1341104F00
ref: 6
PLUNGER ASSY
1341104F00
€ 18.50
7
1341726D00
ref: 7
SPRING
1341726D00
€ 5.50
8
1327847090
ref: 8
O RING
1327847090
€ 2.00
9
1341844080
ref: 9
GUIDE SCREW,PLUNGER
1341844080
€ 8.00
10
1368231210
ref: 10
CAP,STARTER VALVE
1368231210
€ 5.00
11
0949400907
ref: 11
JET,NEEDLE(P-0)
0949400907
€ 26.50
12
1338504F00
ref: 12
HOLDER,JET
1338504F00
€ 33.00
13
1324643010
ref: 13
O RING
1324643010
€ 4.00
14
0949123012
ref: 14
JET,MAIN(115)
0949123012
€ 11.50
15
1325004F00
ref: 15
FLOAT ASSY
1325004F00
€ 27.50
16
0211204083
ref: 16
SCREW
€ 2.00
17
1360205A10
ref: 17
SCREW
1360205A10
€ 4.00
18
0211205127
ref: 18
SCREW
0211205127
€ 2.50
19
1341833E00
ref: 19
HOLDER
1341833E00
€ 4.50
20
0928005004
ref: 20
O RING(D:1.9,ID:4.8)
0928005004
€ 2.00
21
1348104F00
ref: 21
SPRING
1348104F00
€ 2.50
22
1339417E60
ref: 22
E RING,MULTIPLE JET NOZZLE
1339417E60
€ 1.50
23
1338244030
ref: 23
WASHER
1338244030
€ 3.50
24
1338733E00
ref: 24
RING
€ 5.00
25
1338304F00
ref: 25
NEEDLE,JET(5DH23-53-3)
1338304F00
€ 19.00
26
1329529900
ref: 26
O RING,PILOT AIR SCREW
1329529900
€ 4.00
27
1329129900
ref: 27
WASHER
1329129900
€ 2.00
28
1326848700
ref: 28
SPRING,THROTTLE SCREW
1326848700
€ 3.50
29
1327933E00
ref: 29
ADJUSTER
1327933E00
€ 9.50
30
0949220024
ref: 30
JET,PILOT(20)
0949220024
€ 15.50
31
1337004F00
ref: 31
VALVE ASSY,NEEDLE
1337004F00
€ 67.50
32
1325401010
ref: 32
PIN,FLOAT
1325401010
€ 3.00
33
0211204107
ref: 33
SCREW
0211204107
€ 2.00
34
1327484000
ref: 34
CAP
1327484000
€ 5.50
35
0940106101
ref: 35
CLIP
0940106101
€ 2.50
36
0211204083
ref: 36
SCREW
€ 2.00
37
1324713A00
ref: 37
SCREW,DRAIN
1324713A00
€ 5.50
38
1325804F00
ref: 38
GASKET (NAS)
1325804F00
€ 9.00
39
1328105A00
ref: 39
E18
PLUG
1328105A00
€ 3.50
