CRANKSHAFT

XF650 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34)

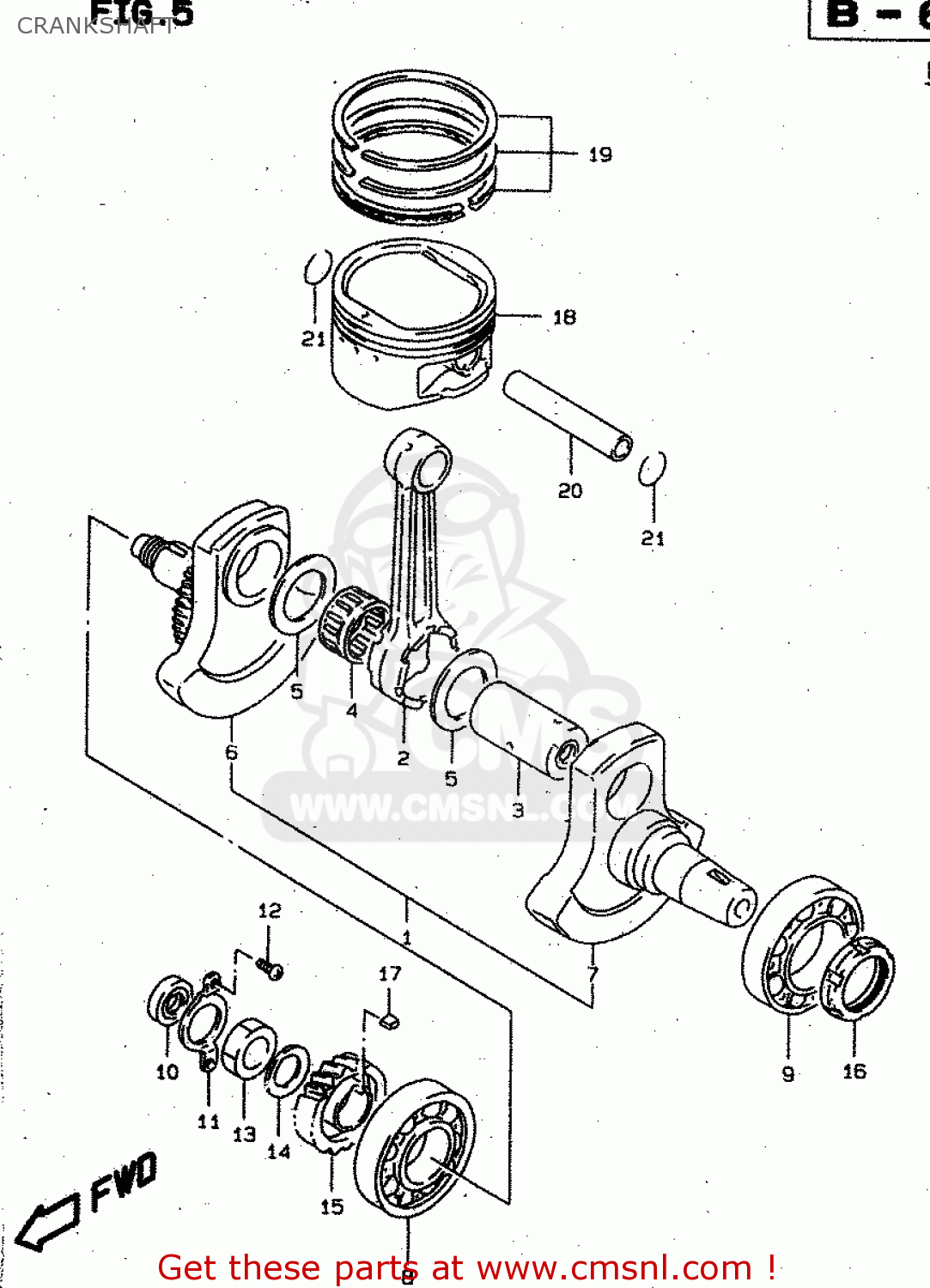

Crankshaft diagram XF650 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34)

CRANKSHAFT XF650 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34)
CRANKSHAFT XF650 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34)
CRANKSHAFT XF650 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1
1200004820
ref: 1
CRANKSHAFT SET
1200004820
€ 944.00
2
1216104F00
ref: 2
CONNECTING ROD
1216104F00
€ 159.50
3
1221132E00
ref: 3
PIN,CRANK
1221132E00
€ 51.00
4
0926337006
ref: 4
BEARING 37X47X25
€ 97.50
5
0916037006
ref: 5
WASHER(37X55X1)
0916037006
€ 8.50
6
1222132810
ref: 6
CRANKSHAFT SET,R
€ 394.50
7
1226132E00
ref: 7
CRANKSHAFT,L
1226132E00
€ 301.50
8
0926240008
ref: 8
BEARING(40X80X18)
0926240008
€ 49.00
9
0926245011
ref: 9
BEARING(45X85X19)
0926245011
€ 50.00
10
0928216002
ref: 10
SEAL,OIL(16X30X6)
0928216002
€ 8.50
11
1254837400
ref: 11
RETAINER,CRANKSHAFT BEARING,R
1254837400
€ 6.50
12
0211205083
ref: 12
SCREW
0211205083
€ 2.00
13
0914020008
ref: 13
NUT (20MM)
0914020008
€ 4.00
14
0916420003
ref: 14
WASHER
0916420003
€ 2.50
15
2111132E00
ref: 15
GEAR,PRIMARY DRIVE(NT:28)
2111132E00
€ 42.00
16
1266404F00
ref: 16
NUT,CRANKSHAFT BRG,L
1266404F00
€ 30.50
17
0942005007
ref: 17
KEY
0942005007
€ 3.00
18
1211104F000F0
ref: 18
PISTON
1211104F000F0
€ 99.00
19
1214032E10
ref: 19
RING SET,PISTON
1214032E10
€ 52.50
20
1215114A01
ref: 20
PIN,PISTON
1215114A01
€ 18.00
21
0938123003
ref: 21
CIRCLIP
0938123003
€ 1.50
