MUFFLER

XF650 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34)

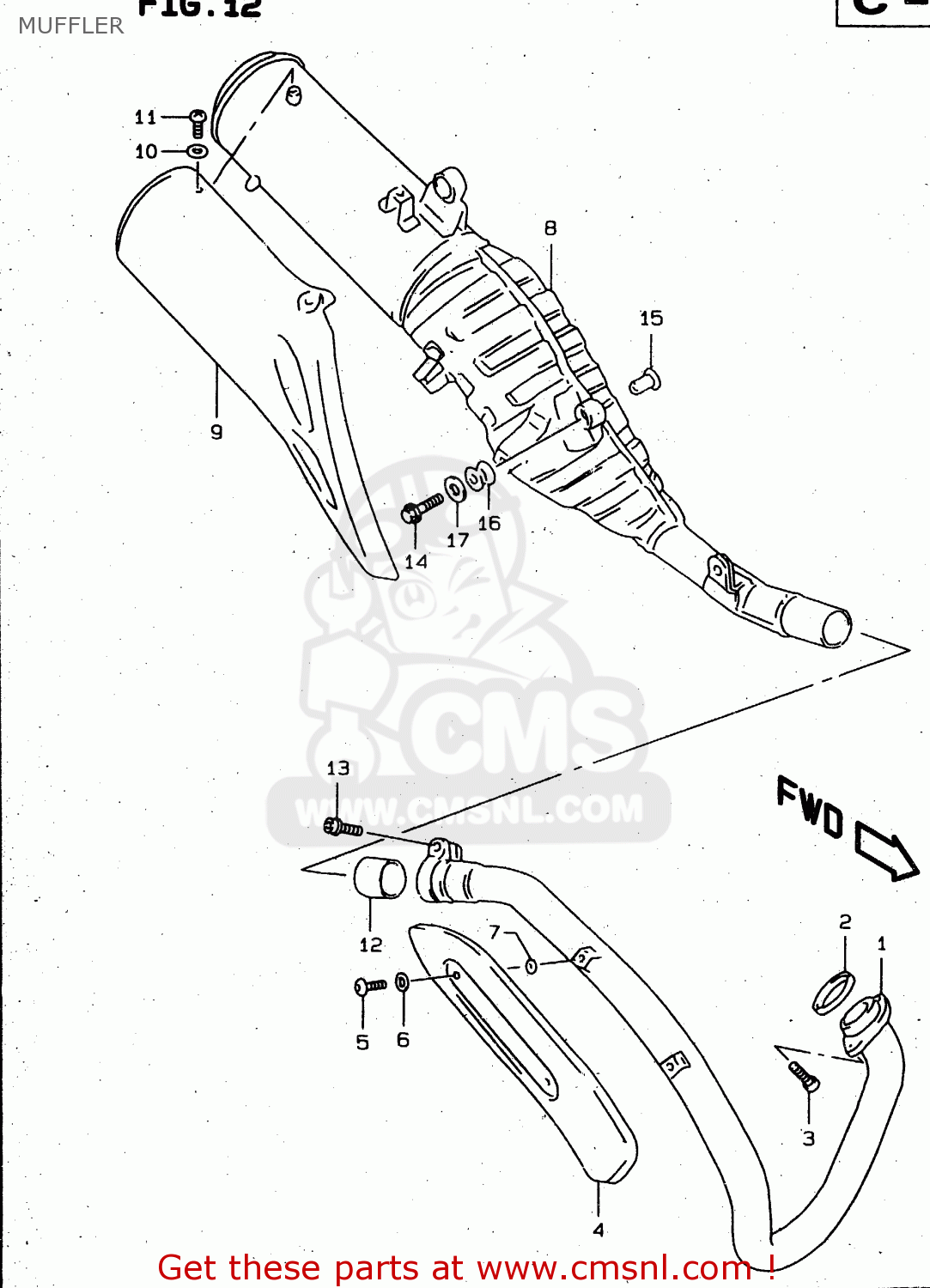

Muffler diagram XF650 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1415004F00
ref: 1

PIPE,EXHAUST

€ 412.50

1418122D01
ref: 2

GASKET,EXHAUST PIPE (NAS)

€ 9.00

0713008253
ref: 3

BOLT

€ 3.50

1418004F00
ref: 4

COVER,EXHAUST PIPE

€ 259.00

0913906078
ref: 5

SCREW(6X10)

€ 3.00

0916006082
ref: 6

WASHER(6.5X13X1.0)

€ 1.50

0916806122
ref: 7

GASKET(6X16X1.4) (NAS)

€ 2.50

1431004F00
ref: 8

BODY, MUFFLER

€ 606.00

1478004F00
ref: 9

COVER ASSY,MUFFLER

€ 116.50

0916006082
ref: 10

WASHER(6.5X13X1.0)

€ 1.50

0913906078
ref: 11

SCREW(6X10)

€ 3.00

1477132E00
ref: 12

CONNECTOR,MUFFLER

€ 12.50

0712008403
ref: 13

BOLT

€ 3.50

0910608131
ref: 14

BOLT(8X30)

€ 3.50

0918008151
ref: 15

SPACER(8.6X12X17.5)

€ 6.00

0932012043
ref: 16

CUSHION

€ 8.00

0916008057
ref: 17
MODEL V

WASHER (8.5X20X1.6)

€ 2.00

0916008135
ref: 17
MODEL W/X

WASHER(8.5X28X1.6)

€ 2.00
