SPEEDOMETER

XF650 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34)

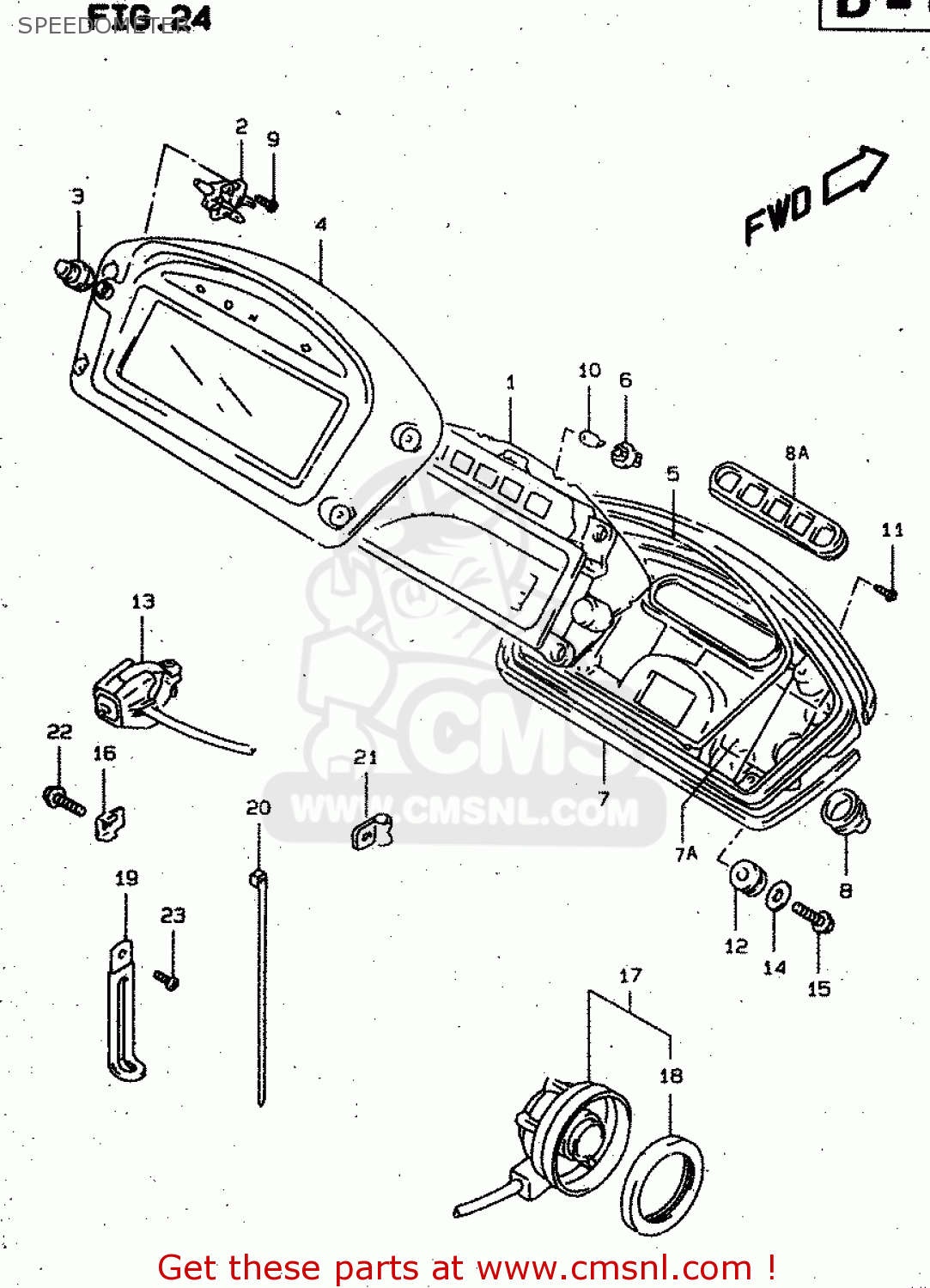

Speedometer diagram XF650 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34)

SPEEDOMETER XF650 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34)
SPEEDOMETER XF650 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34)
SPEEDOMETER XF650 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1
3412004F10
ref: 1
SPEED & TACHOMETER ASSY
€ 558.50
1
3412004F00
ref: 1
E4, E17, E18, E22, E
SPEED & TACHOMETER ASSY
3412004F00
€ 530.50
2
3412333E00
ref: 2
ATTACHMENT,SWITCH
3412333E00
€ 6.50
3
3412433E00
ref: 3
SWITCH,GUM
3412433E00
€ 5.50
4
3415004F00
ref: 4
VISOR
€ 60.50
5
3415304F00
ref: 5
PACKING
€ 7.50
6
3417233E00
ref: 6
SOCKET(T:6.5)
3417233E00
€ 5.00
7A
3411104F00
ref: 7A
CASE
€ 51.50
7
3418804F00
ref: 7
PACKING
€ 13.00
8
3419833E00
ref: 8
CAP,BLIND NO.1
3419833E00
€ 3.50
8A
3419804F00
ref: 8A
CAP,BLIND
€ 7.00
9
0913203005
ref: 9
SCREW(3X10)
0913203005
€ 1.50
10
0947112108
ref: 10
BULB(12V1.7W,T6.5)
0947112108
€ 2.00
11
0354104203
ref: 11
SCREW
0354104203
€ 2.50
12
3495533E00
ref: 12
CUSHION,METER
3495533E00
€ 3.00
13
3791004F00
ref: 13
E2
SWITCH ASSY,SPEEDOMETER
3791004F00
€ 38.00
14
0916005037
ref: 14
WASHER(5.5X16X1.2)
0916005037
€ 1.50
15
0216205083
ref: 15
SCREW
0216205083
€ 2.00
16
3493804F00
ref: 16
GUIDE,SENSOR LEAD
€ 3.00
17
3499004F00
ref: 17
SENSOR ,SPEED
€ 217.00
18
0928543001
ref: 18
OIL SEAL (43X58X7)
0928543001
€ 10.00
19
0940406432
ref: 19
<-09404-06429
CLAMP(L:65)
0940406432
€ 2.50
20
0940714407
ref: 20
CLAMP(L:145)
0940714407
€ 4.00
21
0940307401
ref: 21
CLAMP
0940307401
€ 3.00
22
0155005163
ref: 22
BOLT
€ 2.00
23
0214206103
ref: 23
SCREW 6X10
0214206103
€ 2.00
