TURNSIGNAL LAMP

XF650 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34)

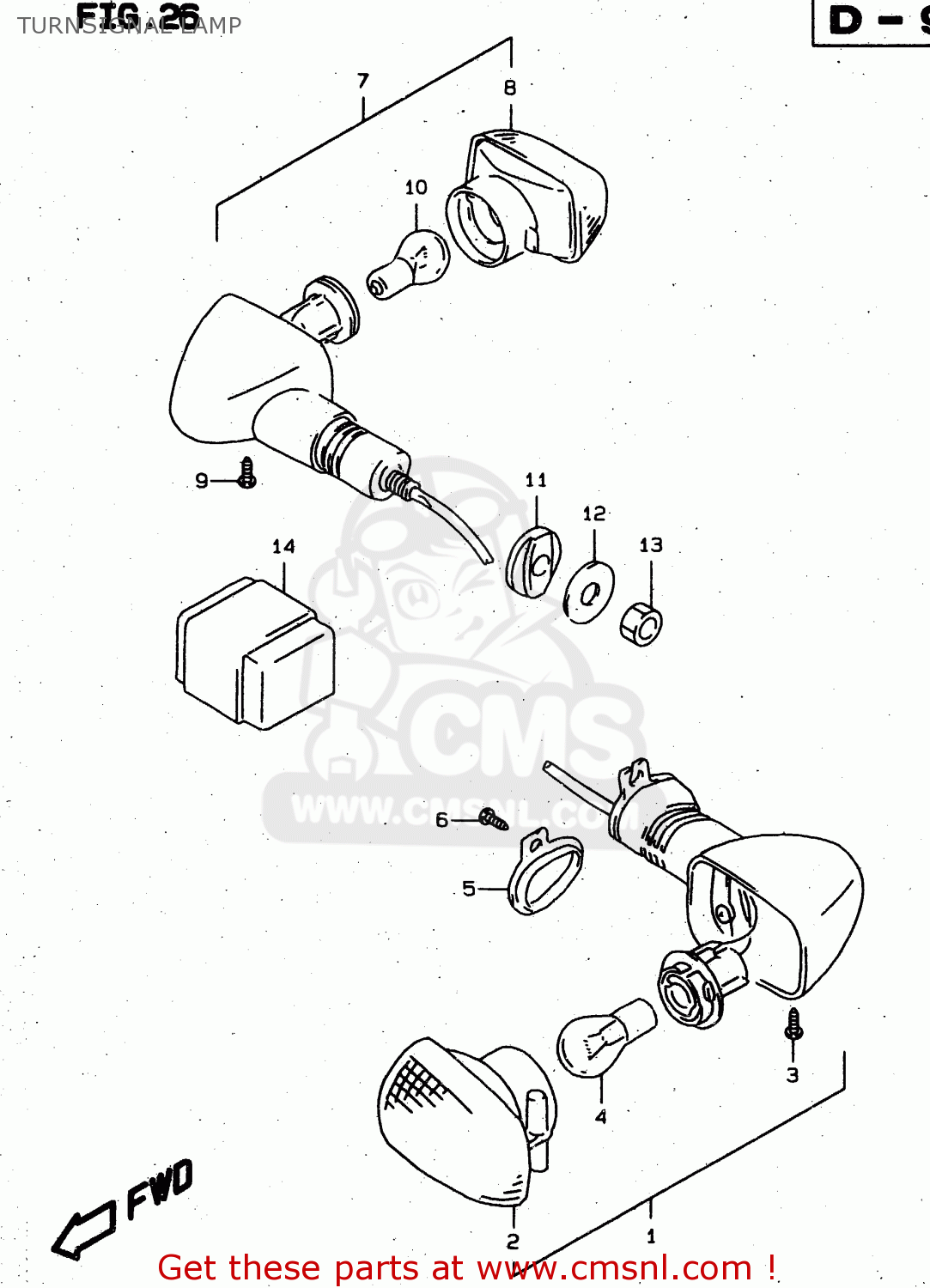

Turnsignal lamp diagram XF650 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

3560133E00
ref: 1

LAMP ASSEMBLY,FRONT TURN SIGNAL

€ 84.00

3560233E00
ref: 1

LAMP ASSEMBLY,FRONT TURN SIGNAL

€ 84.00

3561033E00
ref: 2

LAMP UNIT

€ 31.00

0324204123
ref: 3

SCREW

€ 2.00

0947112045
ref: 4

BULB(12V21W)

€ 5.00

3562933E00
ref: 5

PLATE,FR TURNSIGNAL LAMP

€ 25.50

0351105103
ref: 6

SCREW

€ 2.00

3560333E30
ref: 7

LAMP ASSY,RR TURNSIGNAL,R

€ 70.50

3560433E30
ref: 7

LAMP ASSY,RR TURNSIGNAL,L

€ 70.50

3561033E00
ref: 8

LAMP UNIT

€ 31.00

0324204123
ref: 9

SCREW

€ 2.00

0947112045
ref: 10

BULB(12V21W)

€ 5.00

3569517C00
ref: 11

SPACER,RR TURNSIGNAL

€ 3.00

0916010501
ref: 12

WASHER(10.5X30X2.3)

€ 2.50

0831000103
ref: 13

NUT

€ 2.00

3861045D01
ref: 14
MODEL V

RELAY ASSY,TURNSIGNAL LAMP

€ 68.50

3861026E00
ref: 14
MODEL W/X

RELAY ASSY

€ 47.00
