HEADLAMP (E4, E17, E18, E22, E25, E34, P9)

XF650 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34)

Headlamp (e4, e17, e18, e22, e25, e34, p9) diagram XF650 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34)

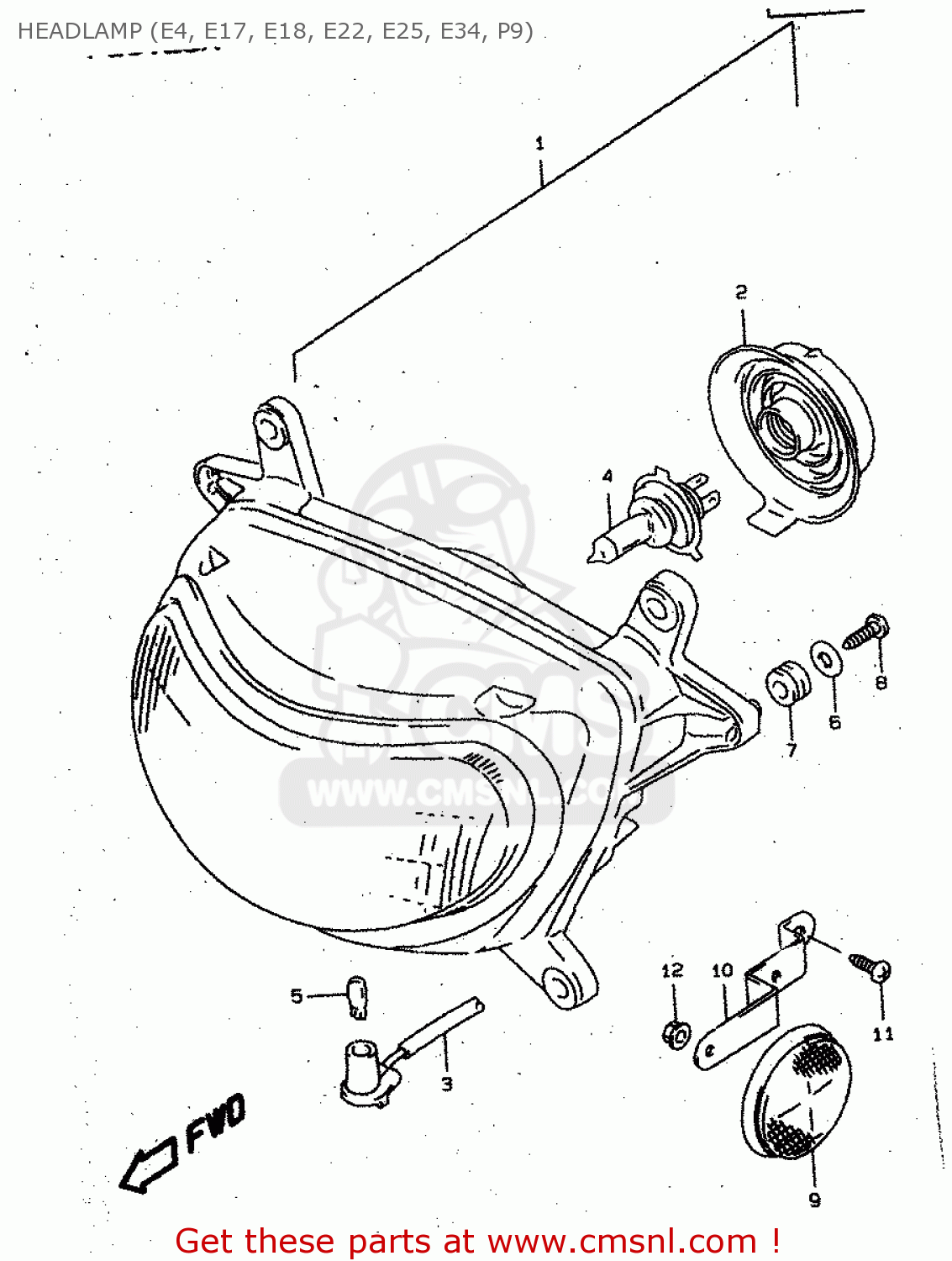

HEADLAMP (E4, E17, E18, E22, E25, E34, P9) XF650 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34)

HEADLAMP (E4, E17, E18, E22, E25, E34, P9) XF650 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

3510004F50999
ref: 1

HEADLAMP ASSY

€ 338.00

2

3517342E00
ref: 2

COVER

€ 20.50

3

3611804F20
ref: 3

CORD ASSY

€ 16.50

4

0947112185
ref: 4

BULB(12V60/55W,H4)

€ 8.00

5

0947112081
ref: 5

BULB(12V5W)

€ 1.50

6

0916005045
ref: 6
<-09160-05003

WASHER(5.5X18X1)

€ 2.00

7

0932008051
ref: 7

CUSHION

€ 7.50

8

0351205163
ref: 8

SCREW

€ 2.50

9

3595014A10
ref: 9
E18

REFLECTOR,REFLEX

€ 11.00

10

3595604F00
ref: 10
E18

BRACKET,FR SIDE RR

€ 0.00

11

0351105163
ref: 11
E18

SCREW,SIDE HOL

€ 2.50

12

0831610053
ref: 12
E18

NUT

€ 2.50
