STEERING STEM

XF650 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34)

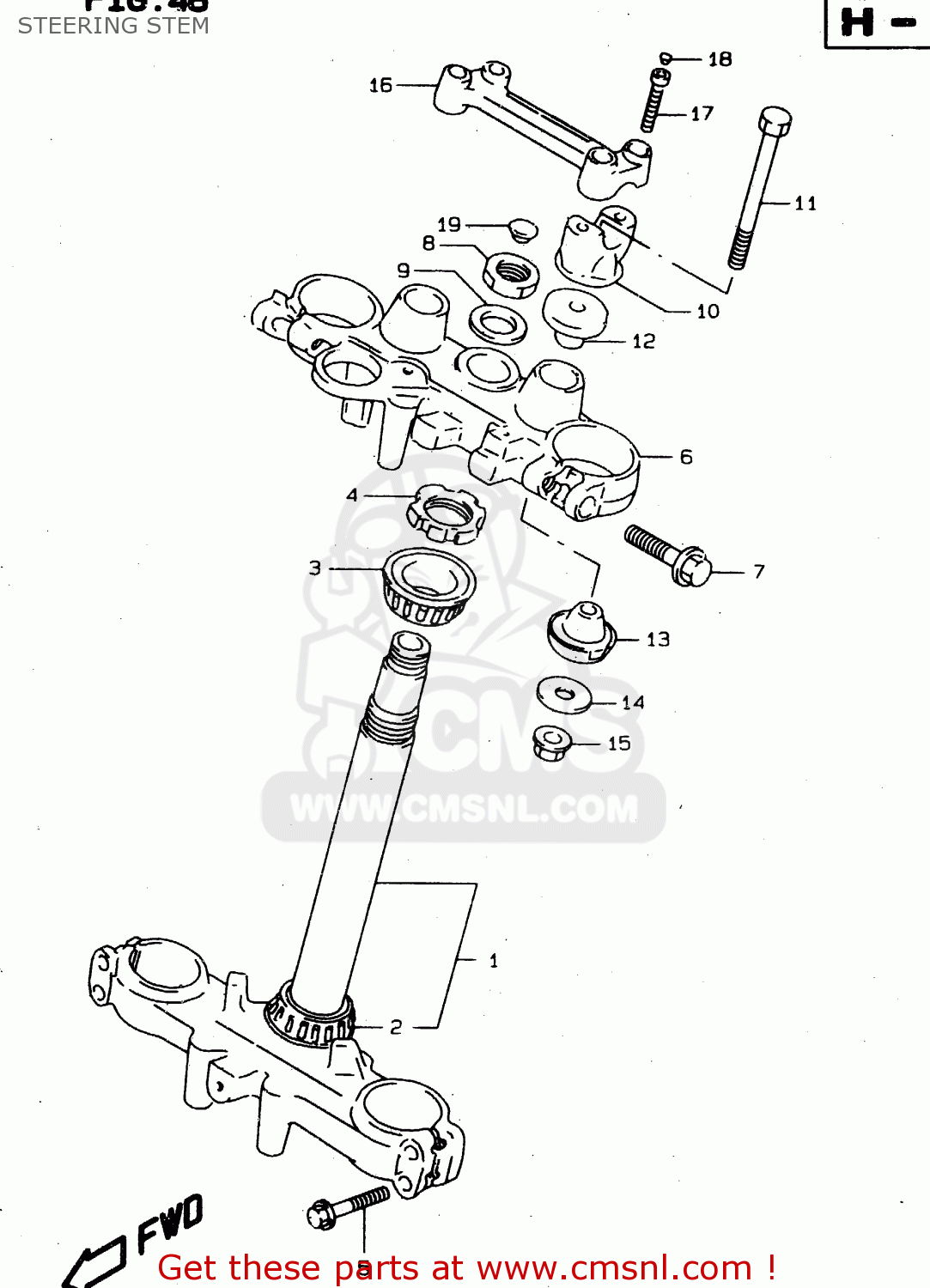

Steering stem diagram XF650 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

5141004F00
ref: 1

STEM,STEERING

€ 731.50

0926530014
ref: 2

BEARING(30X52X16)

€ 49.50

0926530014
ref: 3

BEARING(30X52X16)

€ 49.50

5163128E00
ref: 4

NUT,STEERING

€ 11.00

0155008407
ref: 5

BOLT

€ 3.50

5131104F00
ref: 6

HEAD,STEERING STEM

€ 269.50

0155010407
ref: 7

BOLT

€ 3.50

5135304F00
ref: 8

NUT

€ 25.00

5135627C00
ref: 9

WASHER,STEM HEAD(24.5X34X1.6)

€ 2.50

5622112E00
ref: 10

HOLDER,HANDLE LWR

€ 33.50

5632128C00
ref: 11

BOLT

€ 6.50

5624114200
ref: 12

DAMPER,UPR

€ 32.00

5624214200
ref: 13

DAMPER,LWR

€ 21.50

5135640400
ref: 14

WASHER,HANDLEBAR HOLDER

€ 2.00

0831931107
ref: 15

NUT

€ 3.00

5621104F01
ref: 16

HOLDER,HANDLE UPR

€ 44.00

0713008307
ref: 17

BOLT

€ 4.50

0925006009
ref: 18

CAP(OD:14.5)

€ 3.50

0925012006
ref: 19

CAP(OD:20)

€ 3.00
