HANDLE SWITCH

XF650 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34)

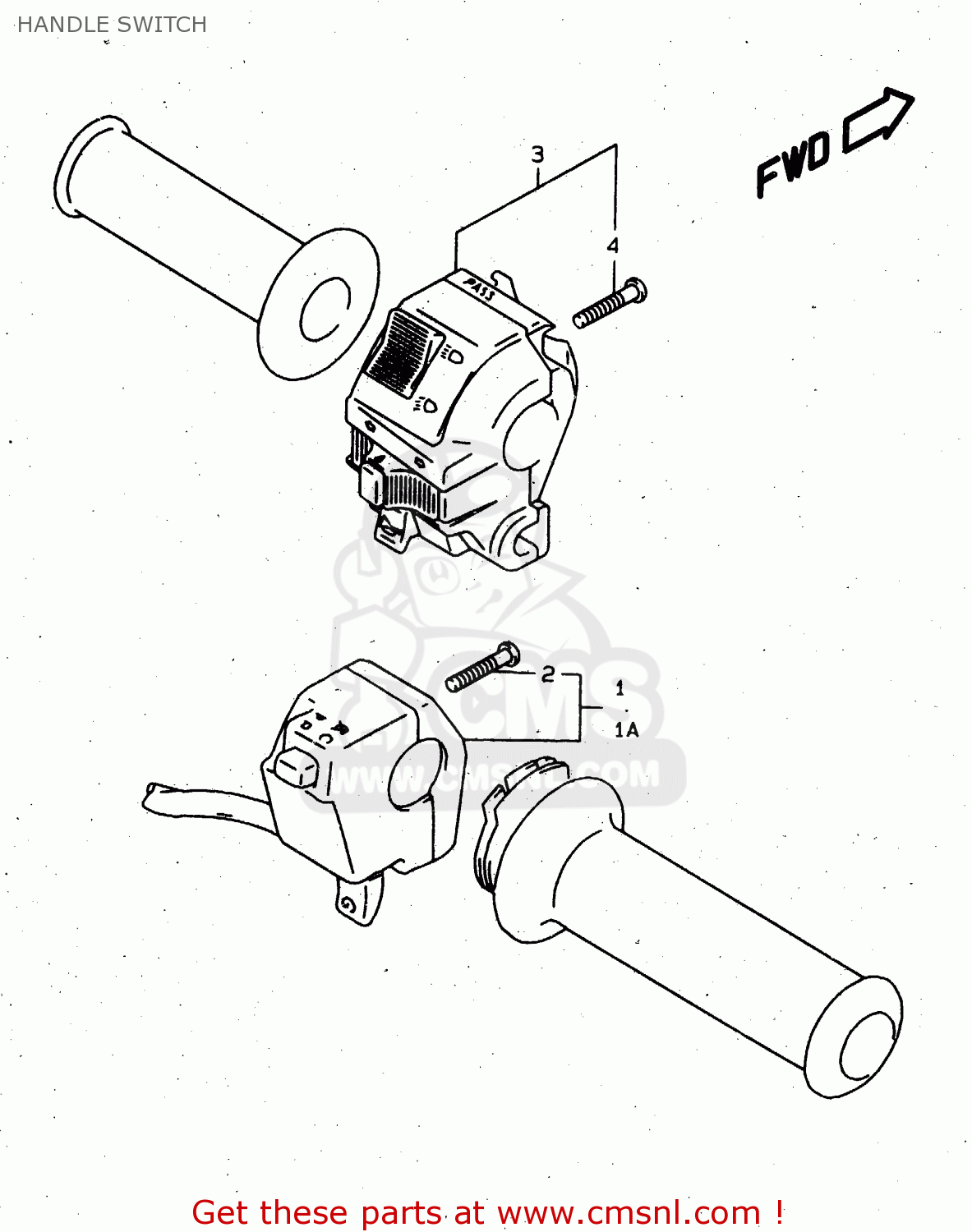

Handle switch diagram XF650 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34)

HANDLE SWITCH XF650 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34)

HANDLE SWITCH XF650 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

3720004F00
ref: 1

SWITCH ASSY,HANDLE,R

€ 118.50

1A

3720004F10
ref: 1A
E24

SWITCH ASSY,HANDLE,R

€ 0.00

2

0912505066
ref: 2

SCREW(5X25)

€ 2.00

3

3740004F00
ref: 3

SWITCH ASSY,HANDLE,L

€ 118.50

4

0211205305
ref: 4

SCREW

€ 1.50
