OIL COOLER

XF650 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34)

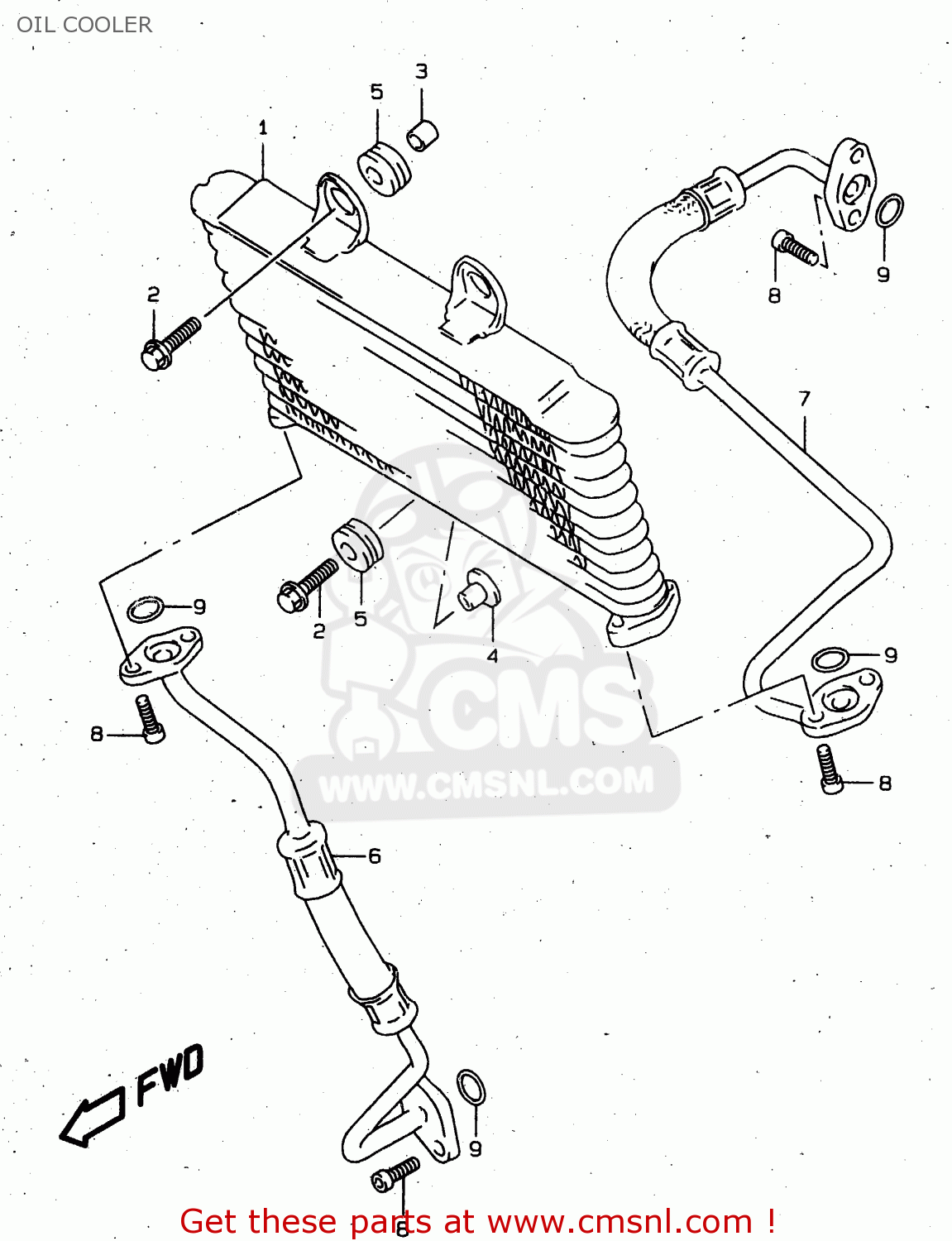

Oil cooler diagram XF650 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34)

OIL COOLER XF650 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34)

OIL COOLER XF650 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

1660004F00
ref: 1

COOLER ASSY,OIL

€ 759.00

2

0911606129
ref: 2

BOLT(6X30)

€ 2.00

3

0918006310
ref: 3

SPACER(6.5X10X10)

€ 2.00

4

0918006319
ref: 4

SPACER(6.5X10X11.6)

€ 3.50

5

0932010015
ref: 5

CUSHION

€ 2.50

6

1646004F00
ref: 6

HOSE,OIL COOLER,R

€ 173.00

7

1647004F00
ref: 7

HOSE,OIL COOLER,L

€ 82.00

8

0713006163
ref: 8

BOLT,OIL FILLE

€ 3.00

9

0928012008
ref: 9

O RING(D:2.4,ID:12.3)

€ 3.00
