AIR CLEANER

DR-Z125 2012 (L2) USA (E03) DRZ125 DR Z125

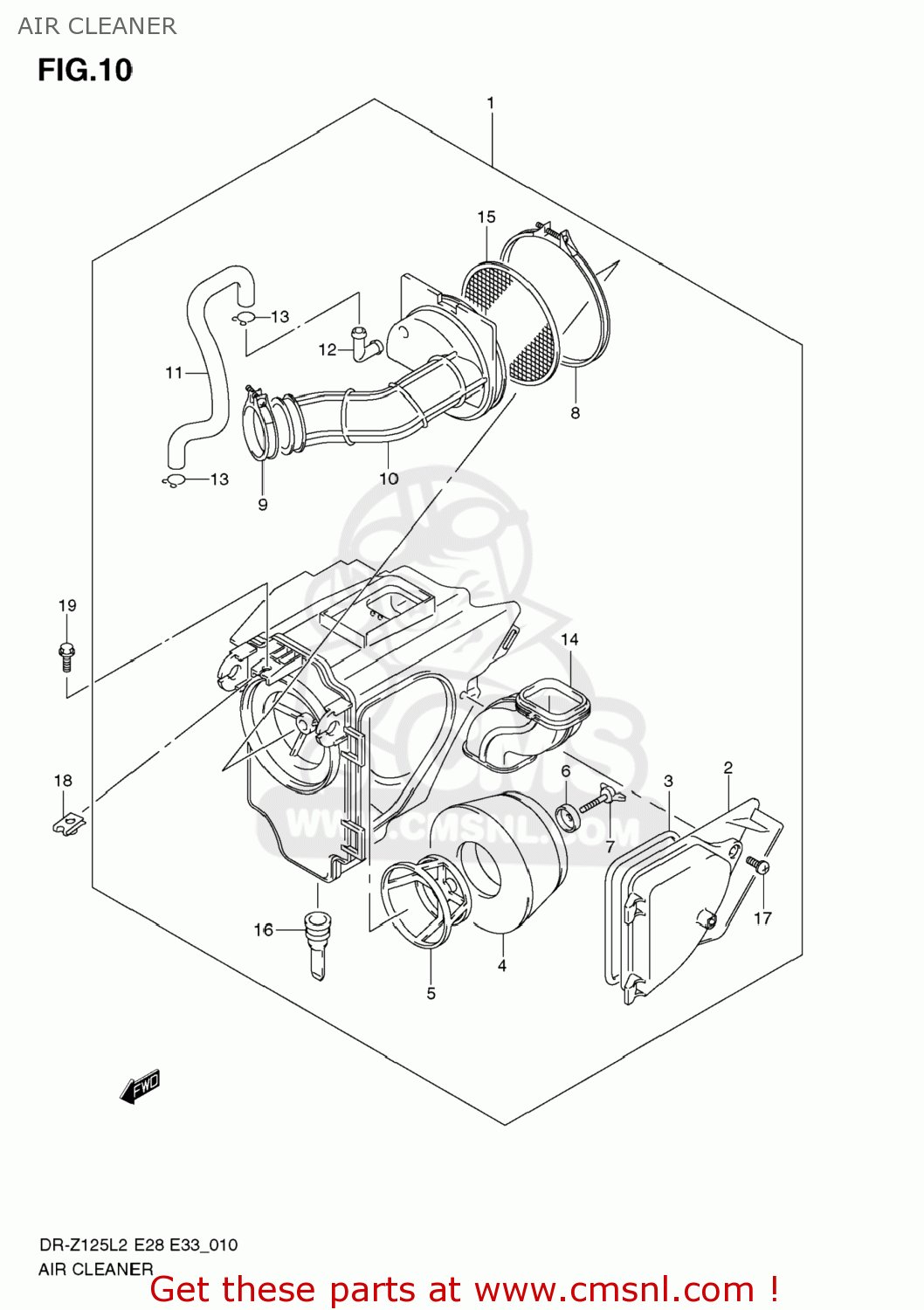

Air cleaner diagram DR-Z125 2012 (L2) USA (E03) DRZ125 DR Z125

AIR CLEANER DR-Z125 2012 (L2) USA (E03) DRZ125 DR Z125

AIR CLEANER DR-Z125 2012 (L2) USA (E03) DRZ125 DR Z125

prices are in EUR

ref

part #

description

quantity

1

1370008G01
ref: 1

CLEANER ASSY,AIR

€ 161.00

2

1374008G01
ref: 2

CAP,AIR CLEANER

€ 17.00

3

1374608G00
ref: 3

GASKET (NAS)

€ 5.50

4

1378008G00
ref: 4

FILTER

€ 28.50

5

1379108G00
ref: 5

HOLDER,FILTER

€ 8.50

6

1379213A01
ref: 6

WASHER,AIR CLEANER

€ 3.00

7

1383131G00
ref: 7

BOLT,WING

€ 5.00

8

1382614D01
ref: 8

CLAMP,OUTLET TUBE

€ 7.50

9

0940248208
ref: 9

CLAMP

€ 4.50

10

1388108G00
ref: 10

TUBE,OUTLET

€ 35.50

11

1385308G00
ref: 11

TUBE,BREATHER

€ 14.50

12

1385814D20
ref: 12

JOINT

€ 6.00

13

0940114301
ref: 13

CLIP

€ 2.00

14

1389108G00
ref: 14

TUBE,INLET

€ 17.00

15

1381003G00
ref: 15

TRAP,FLAME

€ 7.00

16

1368119B00
ref: 16

CAP,DRAIN

€ 3.00

17

021420516B
ref: 17

SCREW

€ 2.50

18

0914806021
ref: 18

NUT

€ 3.00

19

015500612B
ref: 19

BOLT

€ 2.50
