FUEL TANK

DR-Z125 2012 (L2) USA (E03) DRZ125 DR Z125

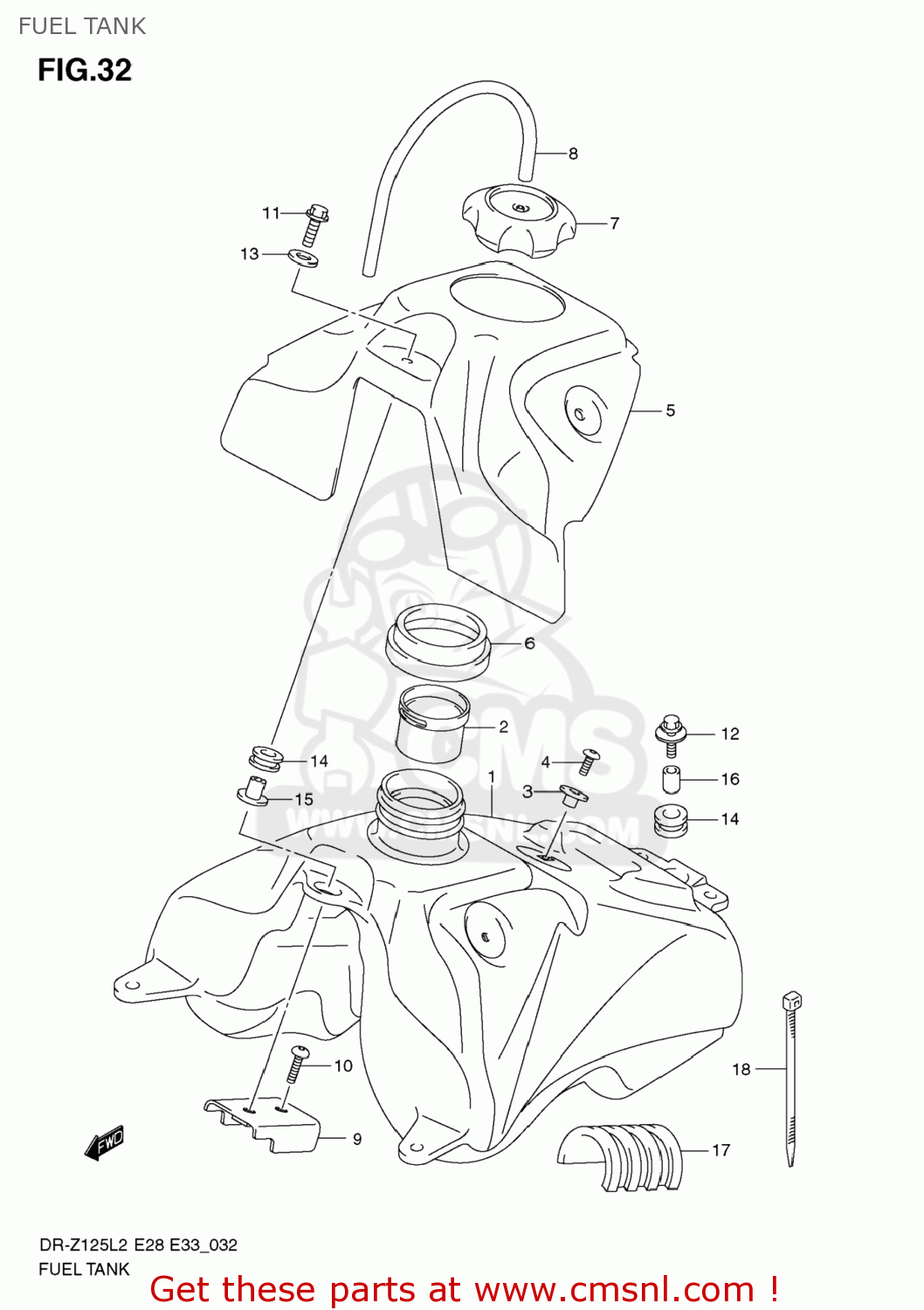

Fuel tank diagram DR-Z125 2012 (L2) USA (E03) DRZ125 DR Z125

FUEL TANK DR-Z125 2012 (L2) USA (E03) DRZ125 DR Z125
FUEL TANK DR-Z125 2012 (L2) USA (E03) DRZ125 DR Z125
FUEL TANK DR-Z125 2012 (L2) USA (E03) DRZ125 DR Z125
prices are in EUR
ref
part #
description
quantity
1
4411008GA0
ref: 1
TANK,FUEL
€ 315.00
2
4419919A00
ref: 2
TUBE,FILLER INLET
4419919A00
€ 4.00
3
4413227C01
ref: 3
HOOK,SEAT FR
4413227C01
€ 39.00
4
0913906148
ref: 4
BOLT(6X20)
0913906148
€ 2.50
5
4429108GA0
ref: 5
COVER,FUEL TANK UPR
€ 25.50
6
4426114H00
ref: 6
RUBBER,FUEL TANK INLET
€ 6.50
7
4420029F00
ref: 7
CAP ASSY,FUEL TANK FILLER
4420029F00
€ 42.50
8
0935250823600
ref: 8
44420-44AR0
HOSE(5X8.2X600)
0935250823600
€ 13.00
9
4452108GA0
ref: 9
BRACKET,FUEL TANK UPR
€ 3.50
10
0913906172
ref: 10
SCREW(6X10)
0913906172
€ 3.00
11
015470630A
ref: 11
BOLT
015470630A
€ 2.50
12
0911606186
ref: 12
BOLT(6X25)
0911606186
€ 2.50
13
0916006134
ref: 13
WASHER(6.5X24X1.6)
0916006134
€ 1.50
14
4451108G10
ref: 14
CUSHION,FUEL TANK
€ 4.00
15
4451223H00
ref: 15
WASHER,FUEL TANK FR
€ 11.50
16
0918006293
ref: 16
SPACER(6.5X10X14)
0918006293
€ 2.00
17
4454113E10
ref: 17
CUSHION,FUEL TANK
4454113E10
€ 13.00
18
0940730402
ref: 18
CLAMP(L:300)
0940730402
€ 3.50
