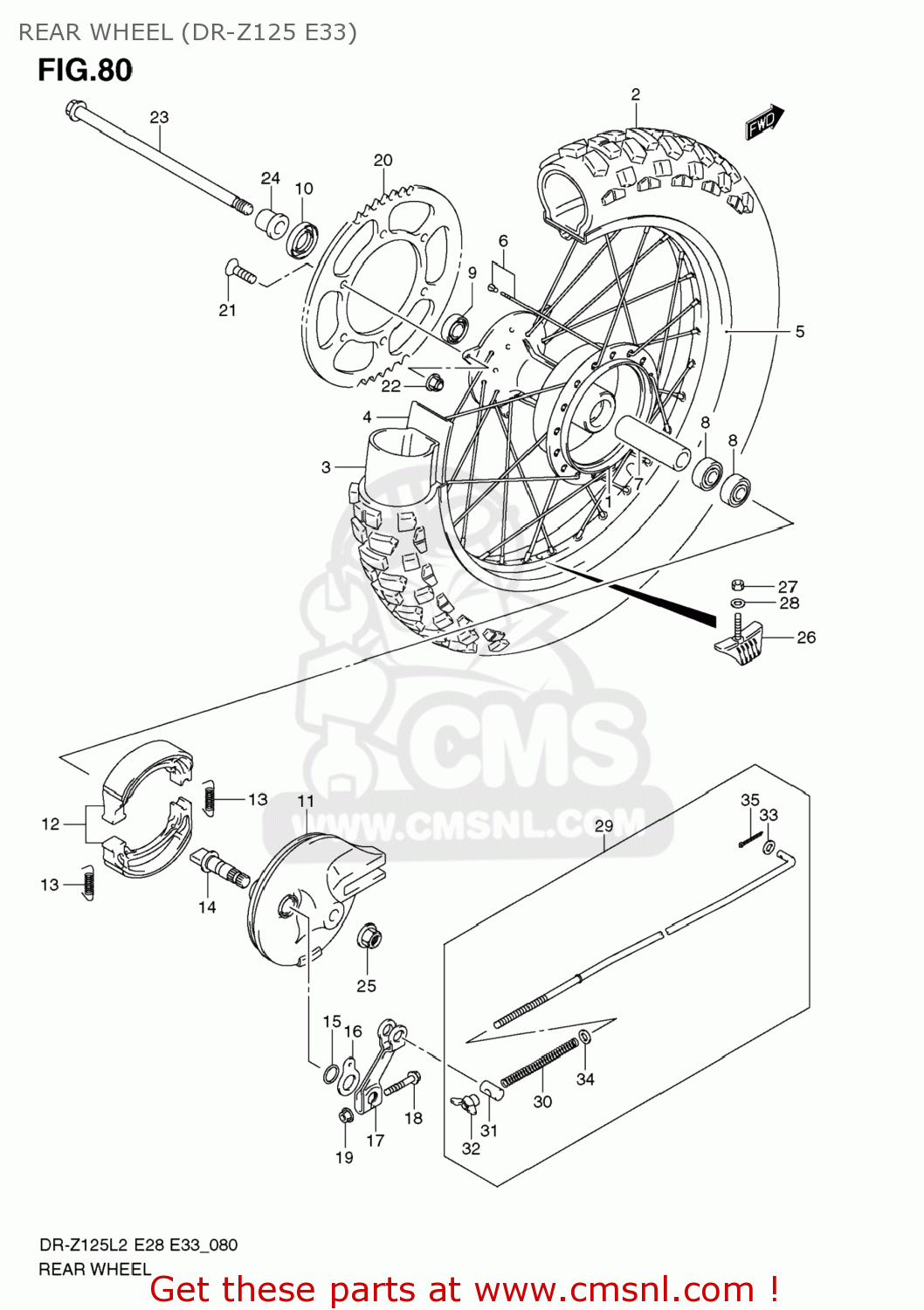

REAR WHEEL (DR-Z125 E33)

ref

part #

description

quantity

1

6411008G10
ref: 1

HUB,RR WHEEL

€ 224.50

2

6511008G00
ref: 2

TIRE,RR

€ 72.50

3

6520008G00
ref: 3

TUBE ASSY,WHEEL INNER

€ 25.00

4

5526109D00
ref: 4

PROTECTOR,WHL INR TUBE

€ 3.50

5

6531108G20
ref: 5

RIM,RR WHEEL(14X1.60)

€ 184.50

6

6532008G20
ref: 6

SPOKE SET,RR WHEEL

€ 55.50

7

0918012151
ref: 7

SPACER(12.5X19X45.5)

€ 5.50

8

0814362017
ref: 8

BEARING

€ 11.50

9

0812363017
ref: 9

BEARING

€ 13.50

10

0928320025
ref: 10

SEAL,OIL(20X37X7)

€ 6.50

11

6421008G00
ref: 11

PANEL,RR BRAKE ANCHOR

€ 85.00

12

5440143840
ref: 12

SHOE SET,BRAKE (NAS)

€ 24.00

13

0944307044
ref: 13

SPRING

€ 3.00

14

6444113G00
ref: 14

CAM,RR BRAKE

€ 12.50

15

0928014011
ref: 15

O RING(D:2.5,ID:13.8)

€ 3.50

16

5449213G00
ref: 16

PLATE,BRAKE LINING INDICATOR

€ 5.50

17

6445108G00
ref: 17

LEVER,RR BRAKE CAM

€ 13.50

18

015500635A
ref: 18

BOLT

€ 2.50

19

083161006A
ref: 19

NUT

€ 2.50

20

6451108G00
ref: 20

SPROCKET,RR(51T-428)

€ 43.50

21

0912008010
ref: 21

BOLT(8X30.5)

€ 2.50

22

083193108A
ref: 22

NUT

€ 2.50

23

6471108G00
ref: 23

AXLE,RR

€ 24.50

24

6475108G00
ref: 24

SPACER,RR AXLE

€ 10.00

25

083193112A
ref: 25

NUT

€ 4.00

26

6527008G00
ref: 26

STOPPER,BEAD

€ 34.00

27

083100008A
ref: 27

NUT

€ 2.00

28

083220108A
ref: 28

WASHER

€ 2.00

29

4330008G00
ref: 29

ROD ASSY,RR BRAKE

€ 13.00

30

0944009004
ref: 30

SPRING

€ 2.00

31

0920911002
ref: 31

PIN(11X18)

€ 2.00

32

0914406005
ref: 32

NUT

€ 2.50

33

083220105A
ref: 33

WASHER

€ 2.50

34

083220106A
ref: 34

WASHER

€ 2.00

35

041112020A
ref: 35

PIN

€ 1.50
