Buy Suzuki unknown Parts Online


CRANKCASE COVER

DR-Z125 2012 (L2) USA (E03) DRZ125 DR Z125

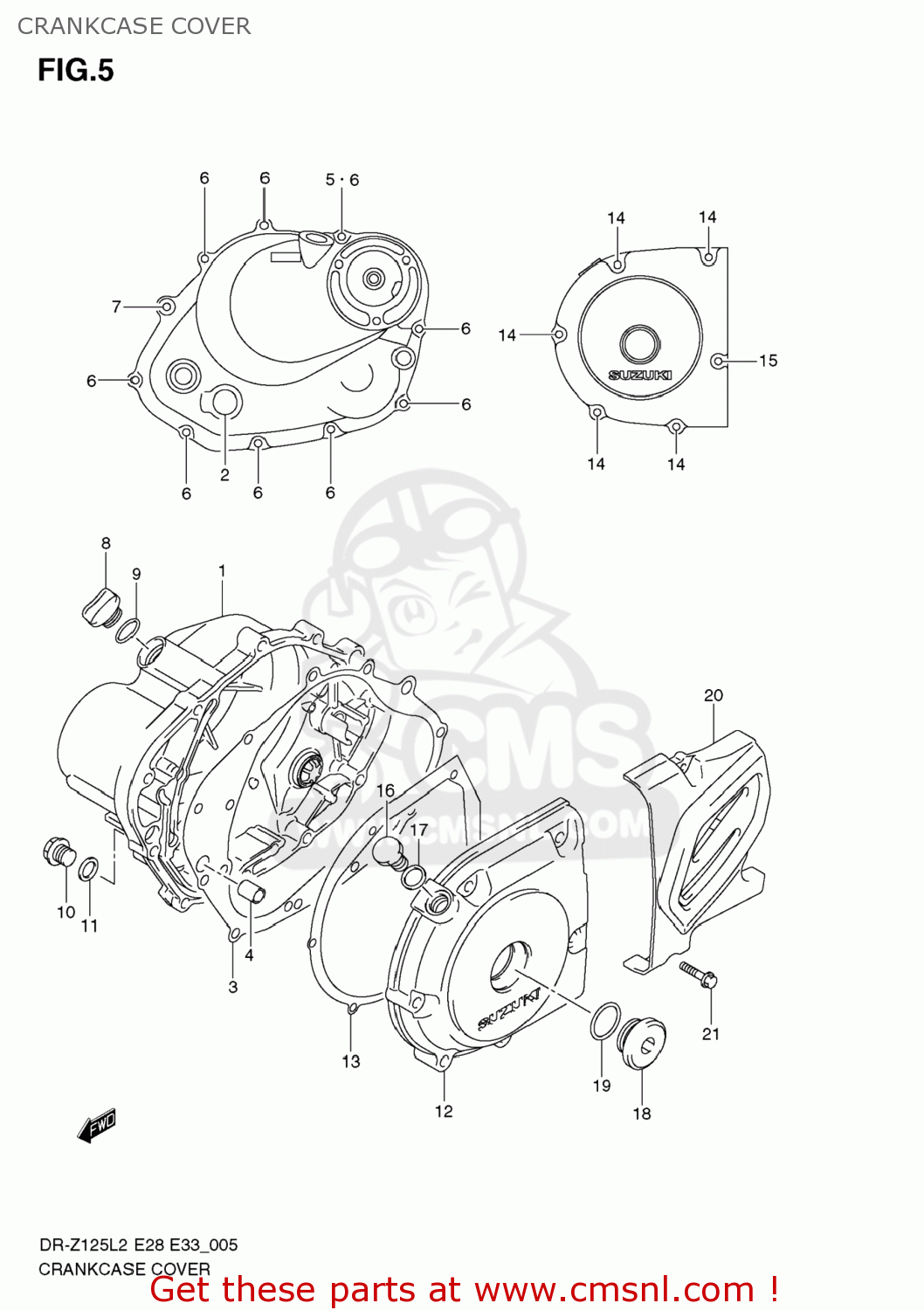

Crankcase cover diagram DR-Z125 2012 (L2) USA (E03) DRZ125 DR Z125

CRANKCASE COVER DR-Z125 2012 (L2) USA (E03) DRZ125 DR Z125
CRANKCASE COVER DR-Z125 2012 (L2) USA (E03) DRZ125 DR Z125
CRANKCASE COVER DR-Z125 2012 (L2) USA (E03) DRZ125 DR Z125
prices are in EUR
ref
part #
description
quantity
1
1134042A30
ref: 1
COVER,CLUTCH
€ 118.50
2
1197145010
ref: 2
LENS,OIL LEVEL CHECK
1197145010
€ 13.00
3
1148205211
ref: 3
GASKET,CLUTCH COVER (NAS)
1148205211
€ 13.00
4
0421113189
ref: 4
PIN
0421113189
€ 2.50
5
0916806023
ref: 5
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
6
015470630A
ref: 6
BOLT
015470630A
€ 2.50
7
015470645A
ref: 7
BOLT
015470645A
€ 2.50
8
1197125D00
ref: 8
PLUG,ENGINE OIL FILLER
1197125D00
€ 5.50
9
0928017003
ref: 9
O RING(D:3.1,ID:16.8)
0928017003
€ 2.00
10
0924714026
ref: 10
PLUG(14X12)
0924714026
€ 3.50
11
0916814002
ref: 11
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
12
1135108G30
ref: 12
COVER,MAGNETO
€ 78.50
13
1148305210
ref: 13
GASKET,MAGNETO COVER (NAS)
1148305210
€ 7.50
14
015470630A
ref: 14
BOLT
015470630A
€ 2.50
15
015470640A
ref: 15
BOLT
015470640A
€ 2.50
16
0924712103
ref: 16
PLUG(12X9)
0924712103
€ 3.50
17
0916812002
ref: 17
GASKET(12.1X16.2X3.7) (NAS)
0916812002
€ 2.00
18
0925926011
ref: 18
PLUG(26X9)
0925926011
€ 8.50
19
0928022008
ref: 19
O RING(D:3.1,ID:22.7)
0928022008
€ 2.50
20
1136008G00
ref: 20
COVER,ENGINE SPROCKET
€ 37.50
21
015470530A
ref: 21
BOLT
015470530A
€ 2.00
