SEAT

DR-Z125 2012 (L2) USA (E03) DRZ125 DR Z125

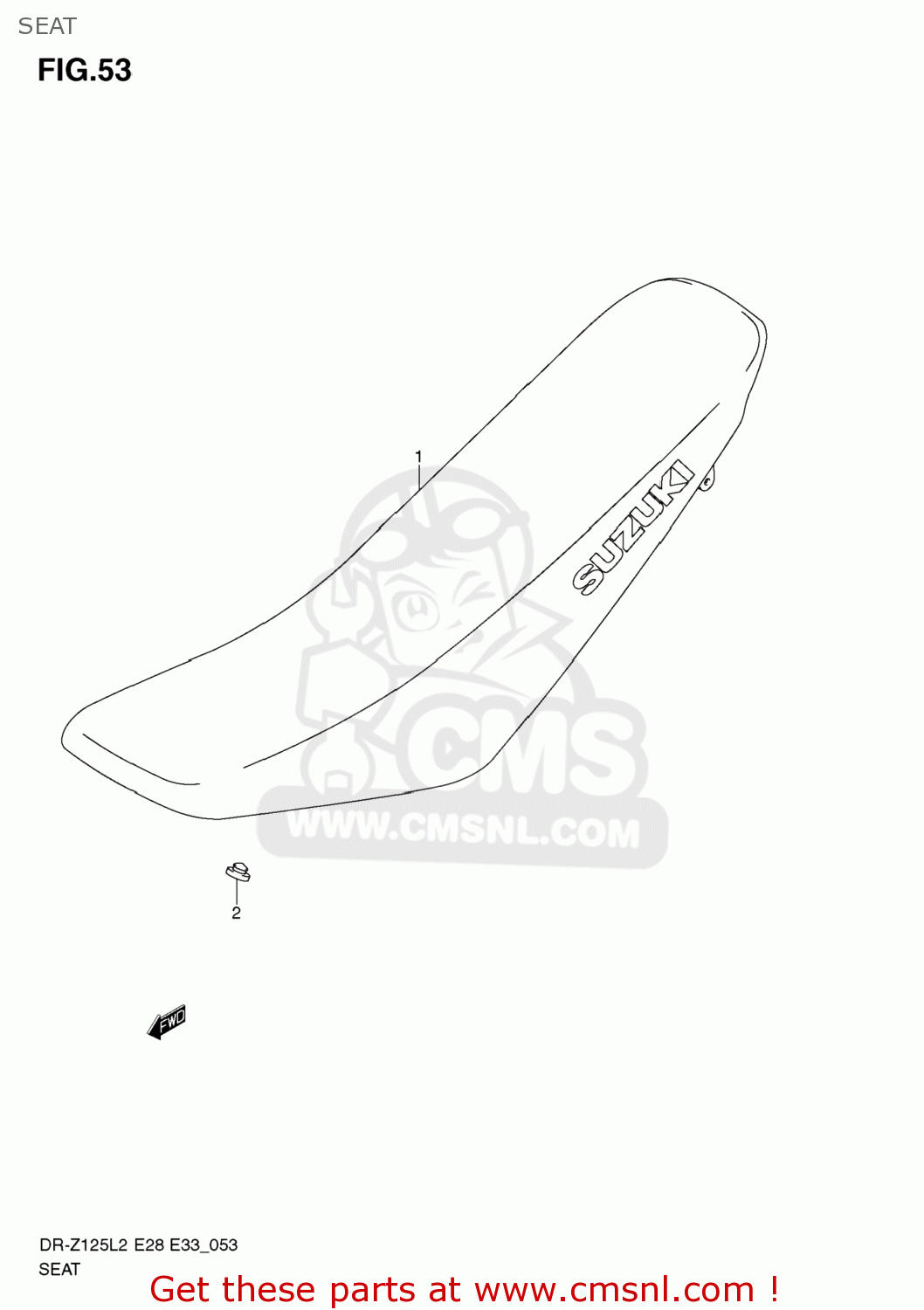

Seat diagram DR-Z125 2012 (L2) USA (E03) DRZ125 DR Z125

SEAT DR-Z125 2012 (L2) USA (E03) DRZ125 DR Z125
SEAT DR-Z125 2012 (L2) USA (E03) DRZ125 DR Z125
SEAT DR-Z125 2012 (L2) USA (E03) DRZ125 DR Z125
prices are in EUR
ref
part #
description
quantity
1
4510008G20GHA
ref: 1
SEAT ASSY (GRAY)
€ 0.00
2
0932910001
ref: 2
CUSHION
0932910001
€ 2.50
