MAGNETO

DR-Z125 2012 (L2) USA (E03) DRZ125 DR Z125

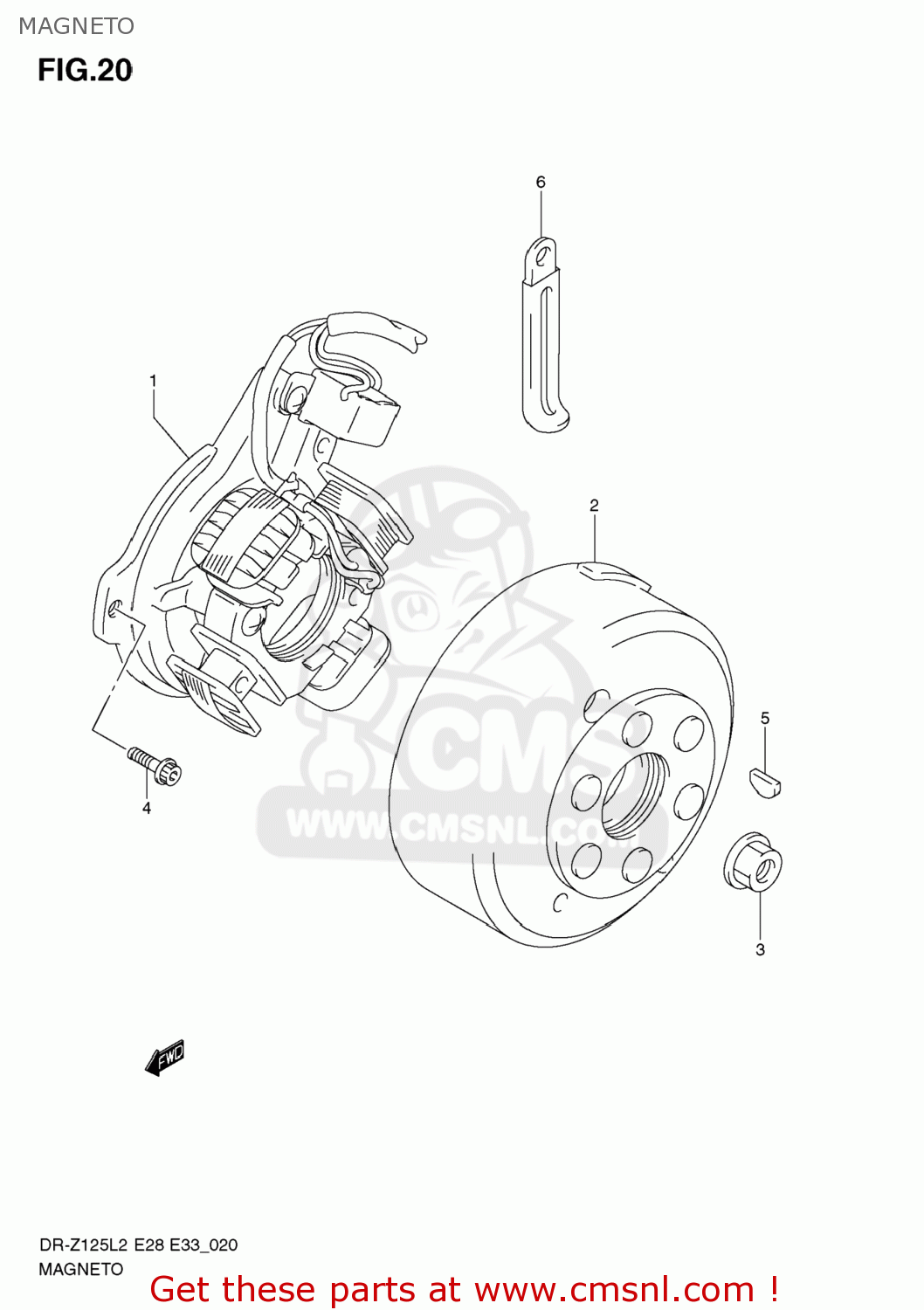

Magneto diagram DR-Z125 2012 (L2) USA (E03) DRZ125 DR Z125

MAGNETO DR-Z125 2012 (L2) USA (E03) DRZ125 DR Z125
MAGNETO DR-Z125 2012 (L2) USA (E03) DRZ125 DR Z125
MAGNETO DR-Z125 2012 (L2) USA (E03) DRZ125 DR Z125
prices are in EUR
ref
part #
description
quantity
1
3210108G00
ref: 1
STARTER ASSY
€ 217.00
2
3210208G00
ref: 2
ROTOR ASSY
€ 217.00
3
0915910110
ref: 3
NUT
0915910110
€ 2.00
4
071200512A
ref: 4
BOLT
€ 2.00
5
0834131039
ref: 5
KEY
0834131039
€ 2.00
6
0940406433
ref: 6
CLAMP(L:80)
0940406433
€ 3.00
