KICK STARTER

DR-Z125 2012 (L2) USA (E03) DRZ125 DR Z125

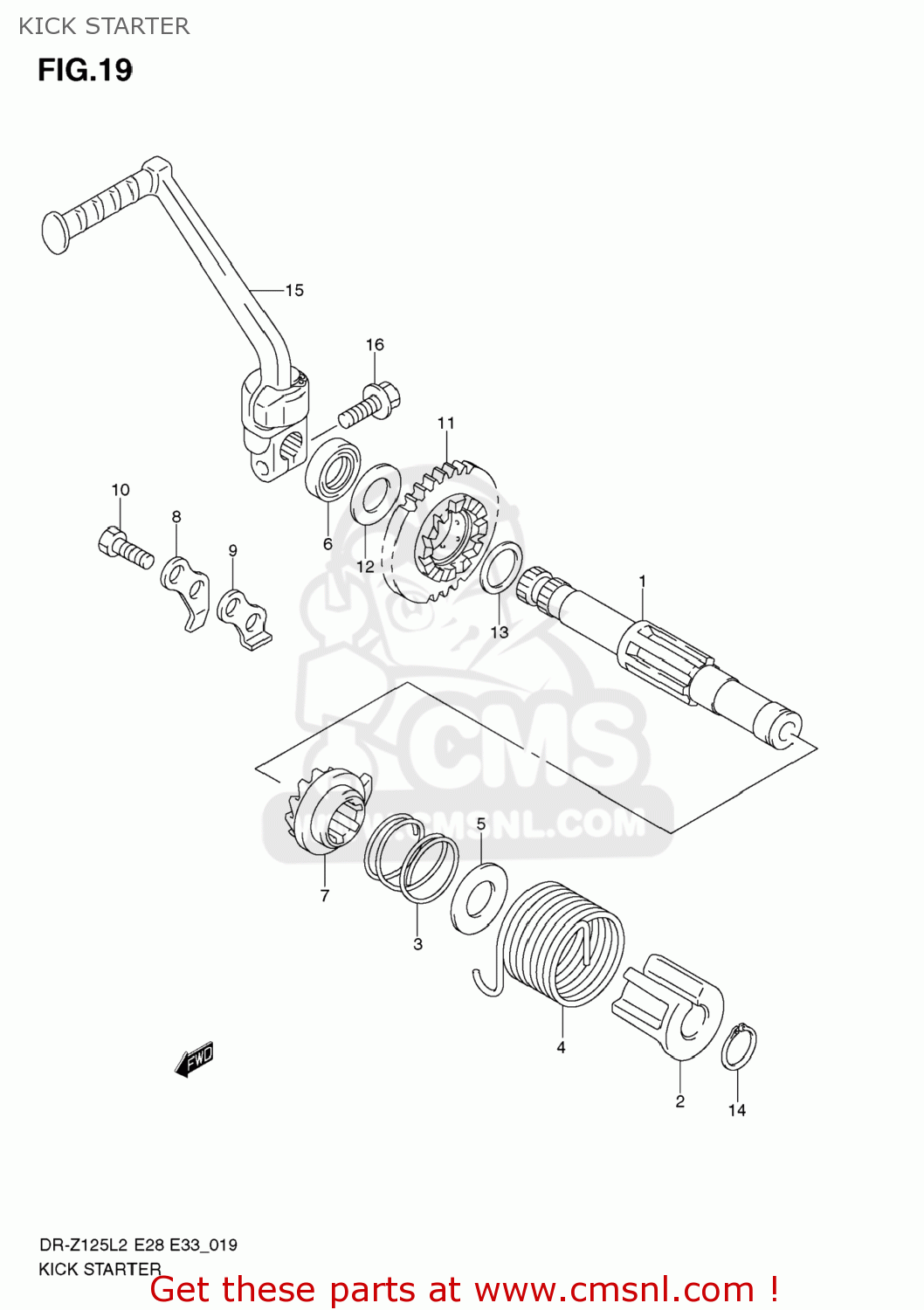

Kick starter diagram DR-Z125 2012 (L2) USA (E03) DRZ125 DR Z125

KICK STARTER DR-Z125 2012 (L2) USA (E03) DRZ125 DR Z125
KICK STARTER DR-Z125 2012 (L2) USA (E03) DRZ125 DR Z125
KICK STARTER DR-Z125 2012 (L2) USA (E03) DRZ125 DR Z125
prices are in EUR
ref
part #
description
quantity
1
2621105220
ref: 1
SHAFT,KICK STARTER
€ 66.00
2
2622105200
ref: 2
GUIDE,KICK STARTER SFT SPRING
2622105200
€ 4.50
3
0944032006
ref: 3
SPRING
0944032006
€ 1.50
4
0944845003
ref: 4
SPRING
0944845003
€ 4.50
5
0821117341
ref: 5
WASHER
0821117341
€ 2.00
6
0928516003
ref: 6
SEAL,OIL(16X24X5)
0928516003
€ 3.00
7
2623138202
ref: 7
STARTER,KICK
€ 25.50
8
2623238200
ref: 8
GUIDE,KICK STARTER
2623238200
€ 4.00
9
2623332400
ref: 9
STOPPER,KICK STARTER
2623332400
€ 3.00
10
0910008240
ref: 10
09100-08299
BOLT(8X20)
0910008240
€ 3.50
11
2624005202
ref: 11
GEAR,KICK STARTER DRIIVE
2624005202
€ 54.00
12
0916016003
ref: 12
WASHER(16X30X1)
0916016003
€ 2.50
13
0918120139
ref: 13
SHIM(20X26X1)
0918120139
€ 2.50
14
083313117A
ref: 14
CIRCLIP
083313117A
€ 2.00
15
2630042A20
ref: 15
LEVER ASSY,KICK STARTER
€ 67.50
16
015000825B
ref: 16
BOLT
€ 2.00
