REAR SWINGING ARM (DR-Z125L E28)

DR-Z125 2012 (L2) USA (E03) DRZ125 DR Z125

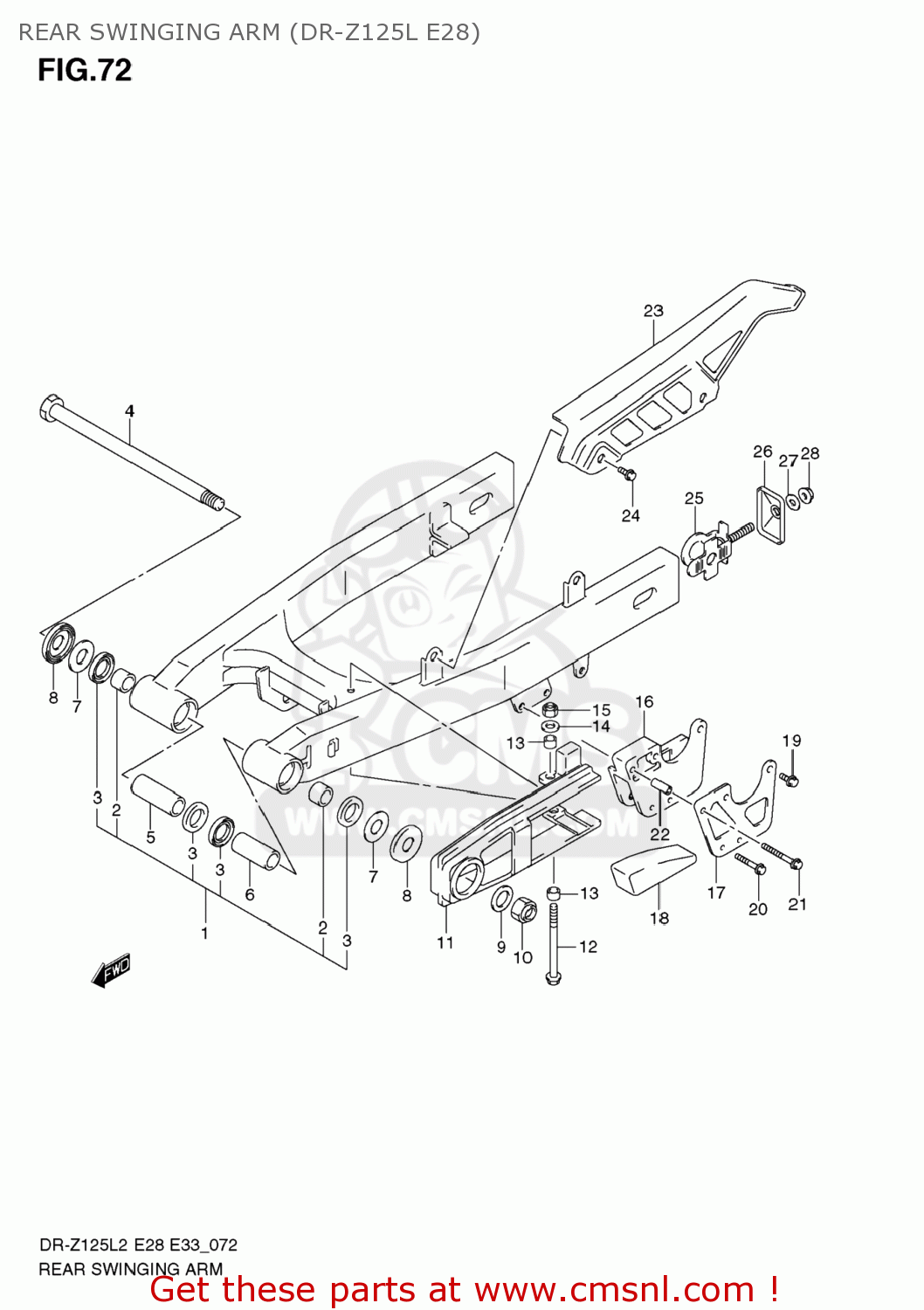

Rear swinging arm (dr-z125l e28) diagram DR-Z125 2012 (L2) USA (E03) DRZ125 DR Z125

REAR SWINGING ARM (DR-Z125L E28) DR-Z125 2012 (L2) USA (E03) DRZ125 DR Z125
REAR SWINGING ARM (DR-Z125L E28) DR-Z125 2012 (L2) USA (E03) DRZ125 DR Z125
REAR SWINGING ARM (DR-Z125L E28) DR-Z125 2012 (L2) USA (E03) DRZ125 DR Z125
prices are in EUR
ref
part #
description
quantity
1
6100008G0013L
ref: 1
SWINGINGARM ASSY,RR
€ 301.50
2
6126113700
ref: 2
BUSHING,RR SWGARM PIVOT
6126113700
€ 8.00
3
0928320031
ref: 3
SEAL,OIL(20X27X5)
0928320031
€ 5.00
4
6121144A11
ref: 4
SHAFT,RR SWINGINGARM PIVOT
6121144A11
€ 28.50
5
6125108G00
ref: 5
SPACER,RR SWGARM PIVOT,R
6125108G00
€ 11.50
6
6125142A00
ref: 6
SPACER,RR SWGARM PVT
6125142A00
€ 9.50
7
0821114321
ref: 7
WASHER
0821114321
€ 4.00
8
6126240400
ref: 8
COVER,RR SWGARM DUST SEAL
6126240400
€ 4.00
9
0916014057
ref: 9
WASHER(14.5X24X2.3)
0916014057
€ 2.50
10
0915914019
ref: 10
NUT
0915914019
€ 8.50
11
6127308G00
ref: 11
BUFFER,CHAIN TOUCH DEFENSE
€ 16.00
12
015600665B
ref: 12
BOLT
€ 3.00
13
0918006257
ref: 13
SPACER(6.5X9X6.5)
0918006257
€ 2.50
14
083220106B
ref: 14
WASHER
083220106B
€ 2.00
15
083192106B
ref: 15
NUT
083192106B
€ 2.50
16
6134302B40
ref: 16
GUIDE,CHAIN
6134302B40
€ 19.00
17
6134202B40
ref: 17
PLATE,GUIDE CHAIN OUTER
6134202B40
€ 15.00
18
6134808G00
ref: 18
DEFENSE,CHAIN GUIDE
€ 9.50
19
0910306234
ref: 19
BOLT(6X16)
0910306234
€ 2.50
20
0910306241
ref: 20
BOLT(6X40)
0910306241
€ 2.50
21
0910306251
ref: 21
BOLT(6X30)
0910306251
€ 2.50
22
0918006333
ref: 22
SPACER(6.5X10X23.5)
€ 2.50
23
6131101A03
ref: 23
CASE,CHAIN
6131101A03
€ 33.50
24
0911606096
ref: 24
BOLT(6X10)
0911606096
€ 2.00
25
6141008G00
ref: 25
ADJUSTER,CHAIN
€ 14.00
26
6142138200
ref: 26
PLATE,CHAIN ADJUSTER
6142138200
€ 3.50
27
0916012085
ref: 27
WASHER(12.5X26X2.3)
€ 2.00
28
083193108A
ref: 28
NUT
083193108A
€ 2.50
