BRAKE PEDAL

DR-Z125L 2013 (L3) USA (E03) DRZ125L DR Z125L

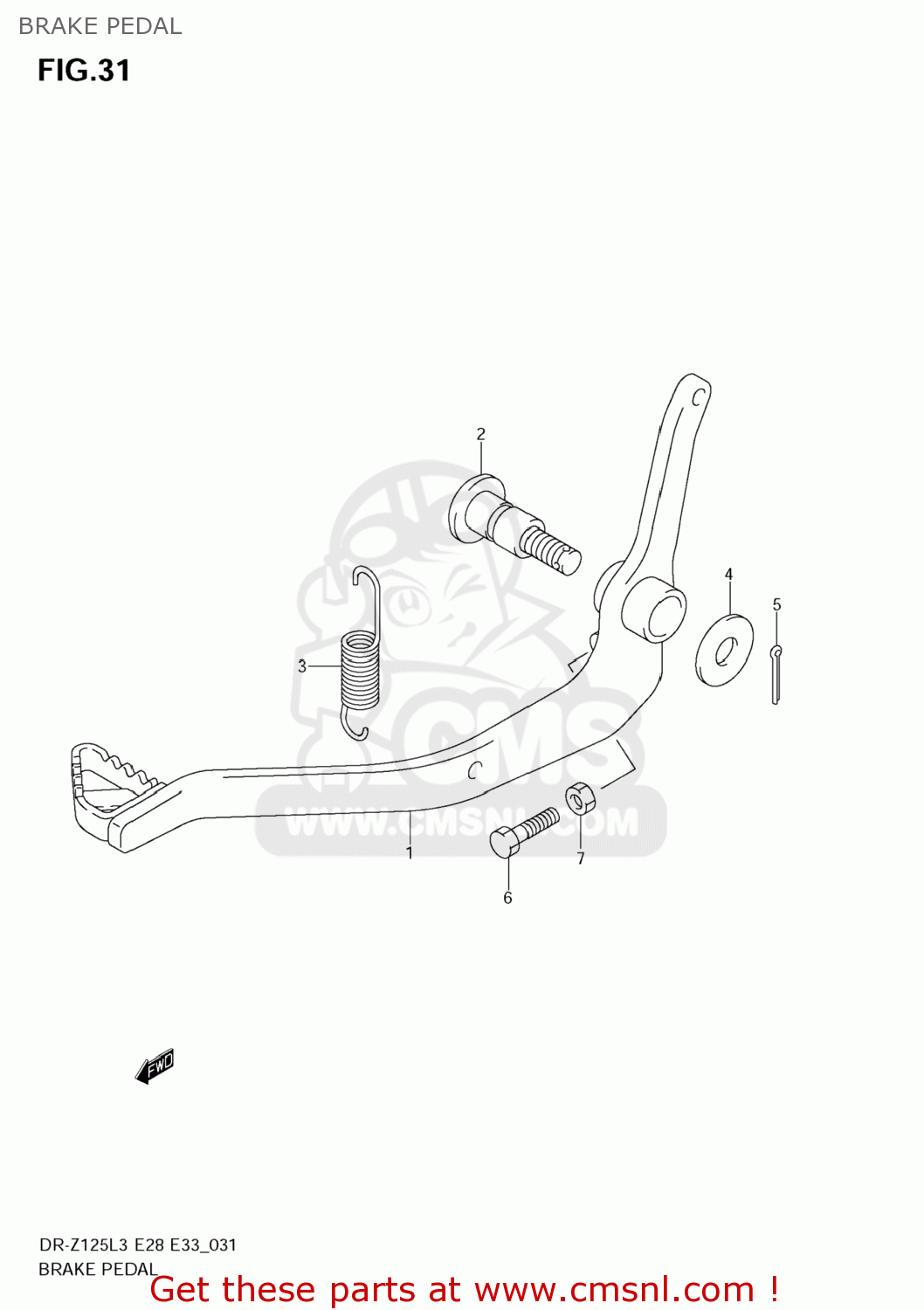

Brake pedal diagram DR-Z125L 2013 (L3) USA (E03) DRZ125L DR Z125L

BRAKE PEDAL DR-Z125L 2013 (L3) USA (E03) DRZ125L DR Z125L
BRAKE PEDAL DR-Z125L 2013 (L3) USA (E03) DRZ125L DR Z125L
BRAKE PEDAL DR-Z125L 2013 (L3) USA (E03) DRZ125L DR Z125L
prices are in EUR
ref
part #
description
quantity
1
4311008G00
ref: 1
PEDAL,BRAKE
€ 48.00
2
4314227C00
ref: 2
SHAFT,BRAKE PEDAL
4314227C00
€ 15.00
3
0944313029
ref: 3
SPRING
0944313029
€ 5.00
4
0821110261
ref: 4
WASHER
0821110261
€ 2.50
5
041112020A
ref: 5
PIN
041112020A
€ 1.50
6
0910006064
ref: 6
BOLT(6X18)
0910006064
€ 1.50
7
083100006B
ref: 7
NUT
€ 2.00
