FRAME

DR-Z125L 2013 (L3) USA (E03) DRZ125L DR Z125L

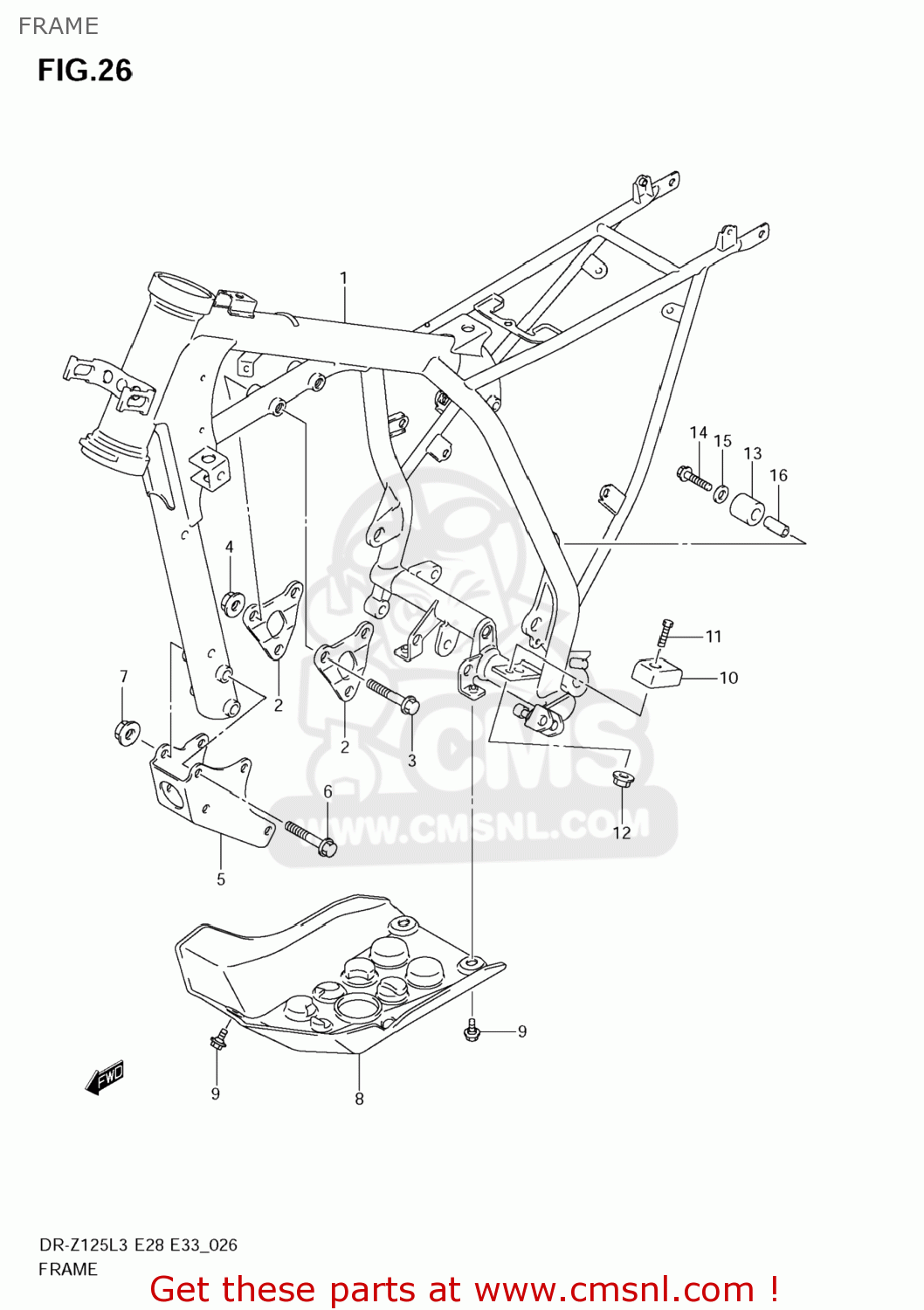

Frame diagram DR-Z125L 2013 (L3) USA (E03) DRZ125L DR Z125L

FRAME DR-Z125L 2013 (L3) USA (E03) DRZ125L DR Z125L
FRAME DR-Z125L 2013 (L3) USA (E03) DRZ125L DR Z125L
FRAME DR-Z125L 2013 (L3) USA (E03) DRZ125L DR Z125L
prices are in EUR
ref
part #
description
quantity
1
4110008G11YPT
ref: 1
FRAME(GRAY)
€ 1,080.50
2
4199108G00
ref: 2
PLATE,ENG MTG UPR
€ 6.00
3
0910308332
ref: 3
BOLT(8X53)
0910308332
€ 3.50
4
083193108A
ref: 4
NUT
083193108A
€ 2.50
5
4199208G00YPT
ref: 5
PLATE,ENG MTG LWR
€ 19.00
6
0910308354
ref: 6
BOLT(8X65)
0910308354
€ 4.00
7
083193108A
ref: 7
NUT
083193108A
€ 2.50
8
4251108G00
ref: 8
PROTECTOR,ENGINE
€ 30.50
9
0911106107
ref: 9
BOLT(6X12)
0911106107
€ 3.00
10
4391242A00
ref: 10
GUIDE,CH LENGTH CONTROL LWR
€ 13.50
11
0912806088
ref: 11
BOLT(6X16)
€ 2.50
12
083193106B
ref: 12
NUT
083193106B
€ 2.50
13
4391113E10
ref: 13
ROLLER,CHAIN CONTROL UPR
4391113E10
€ 17.00
14
0910308178
ref: 14
BOLT(8X38)
0910308178
€ 5.00
15
0821108201
ref: 15
WASHER
0821108201
€ 2.00
16
0918008215
ref: 16
SPACER(8.6X12.2X26.5)
0918008215
€ 4.00
