FUEL TANK COVER

DR-Z125L 2013 (L3) USA (E03) DRZ125L DR Z125L

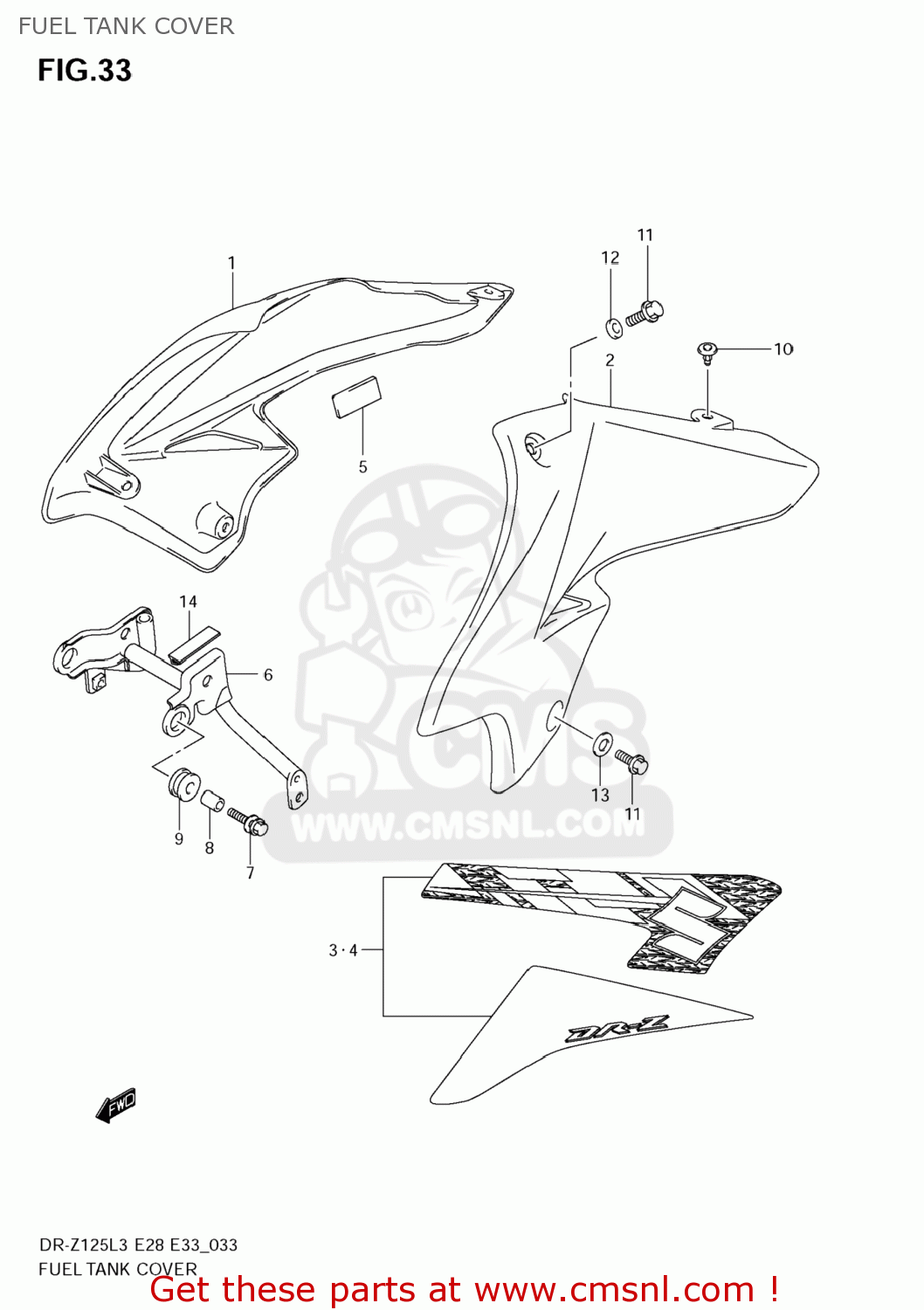

Fuel tank cover diagram DR-Z125L 2013 (L3) USA (E03) DRZ125L DR Z125L

FUEL TANK COVER DR-Z125L 2013 (L3) USA (E03) DRZ125L DR Z125L
FUEL TANK COVER DR-Z125L 2013 (L3) USA (E03) DRZ125L DR Z125L
FUEL TANK COVER DR-Z125L 2013 (L3) USA (E03) DRZ125L DR Z125L
prices are in EUR
ref
part #
description
quantity
1
4427108GA0YU1
ref: 1
COVER,FUEL TANK,R
€ 26.50
2
4428108GA0YU1
ref: 2
COVER,FUEL TANK,L
€ 26.50
3
6811008G90AGB
ref: 3
TAPE SET,FUEL TANK COVER,R
€ 88.50
3
6811008G90AGB
ref: 3
TAPE SET,FUEL TANK COVER,R
€ 88.50
4
6812008G90AGB
ref: 4
TAPE SET,FUEL TANK COVER,L
€ 26.00
4
6812008G90AGB
ref: 4
TAPE SET,FUEL TANK COVER,L
€ 26.00
5
4429414H00
ref: 5
CUSHION,FUEL TANK COVER
€ 3.00
6
4416008GA0
ref: 6
BRACKET,FUEL TANK FR
€ 83.00
7
0911606186
ref: 7
BOLT(6X25)
0911606186
€ 2.50
8
0918006268
ref: 8
SPACER(6.5X9X13.5)
0918006268
€ 2.00
9
4451204F00
ref: 9
CUSHION,FUEL TANK SIDE
4451204F00
€ 3.00
10
09409083085ES
ref: 10
CLIP(BLACK)
09409083085ES
€ 2.00
11
015470616A
ref: 11
BOLT
015470616A
€ 2.00
12
0916906081
ref: 12
WASHER
€ 2.50
13
0916906053
ref: 13
WASHER
0916906053
€ 2.00
14
6824104X50300
ref: 14
MOLDING
6824104X50300
€ 6.00
