Buy Suzuki unknown Parts Online

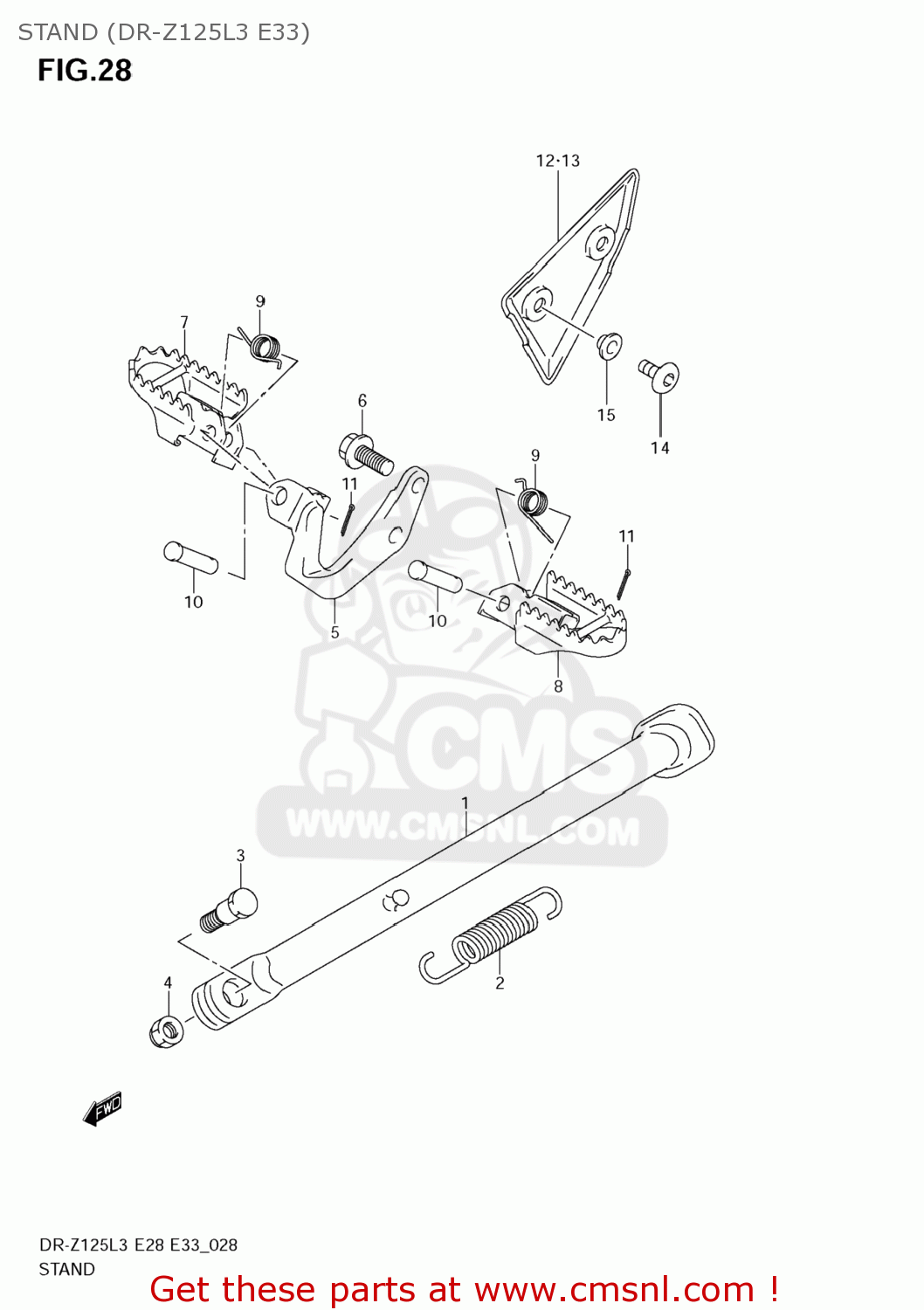

STAND (DR-Z125L3 E33)

DR-Z125L 2013 (L3) USA (E03) DRZ125L DR Z125L

Stand (dr-z125l3 e33) diagram DR-Z125L 2013 (L3) USA (E03) DRZ125L DR Z125L

STAND (DR-Z125L3 E33) DR-Z125L 2013 (L3) USA (E03) DRZ125L DR Z125L
STAND (DR-Z125L3 E33) DR-Z125L 2013 (L3) USA (E03) DRZ125L DR Z125L
STAND (DR-Z125L3 E33) DR-Z125L 2013 (L3) USA (E03) DRZ125L DR Z125L
prices are in EUR
ref
part #
description
quantity
1
4231008G10
ref: 1
STAND,PROP
€ 43.00
2
0944317006
ref: 2
SPRING
0944317006
€ 4.50
3
0911110060
ref: 3
BOLT(10X33)
0911110060
€ 3.50
4
4232103FK0
ref: 4
NUT,PROP STAND
4232103FK0
€ 4.50
5
4351008G00
ref: 5
BRACKET,FR FOOTREST,R
€ 47.50
6
015501025B
ref: 6
BOLT
015501025B
€ 3.00
7
4355003B00019
ref: 7
FOOTREST,FR,R
4355003B00019
€ 17.50
8
4356003B00019
ref: 8
FOOTREST,FR,L
4356003B00019
€ 17.50
9
0944815004
ref: 9
SPRING
0944815004
€ 2.50
10
0920010013
ref: 10
PIN
0920010013
€ 2.50
11
041112015A
ref: 11
PIN
041112015A
€ 1.50
12
4357108G00
ref: 12
GUARD,FR FOOTREST,R
€ 10.50
13
4357208G00
ref: 13
GUARD,FR FOOTREST,L
€ 10.50
14
0913906115
ref: 14
SCREW(6X12)
0913906115
€ 4.50
15
0916906071
ref: 15
WASHER
0916906071
€ 2.50
