CRANKCASE

DR-Z125L 2013 (L3) USA (E03) DRZ125L DR Z125L

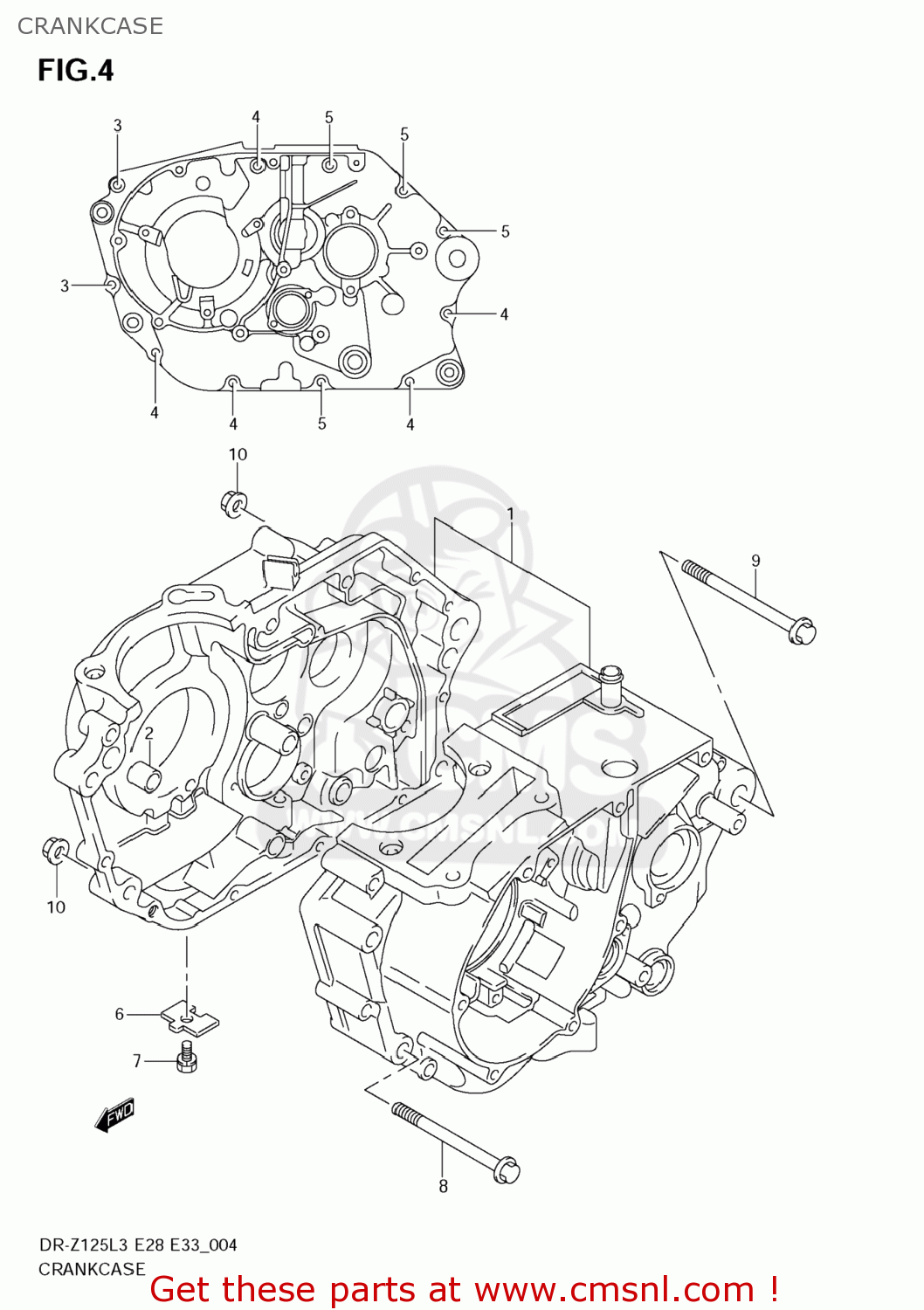

Crankcase diagram DR-Z125L 2013 (L3) USA (E03) DRZ125L DR Z125L

CRANKCASE DR-Z125L 2013 (L3) USA (E03) DRZ125L DR Z125L
CRANKCASE DR-Z125L 2013 (L3) USA (E03) DRZ125L DR Z125L
CRANKCASE DR-Z125L 2013 (L3) USA (E03) DRZ125L DR Z125L
prices are in EUR
ref
part #
description
quantity
1
1130008G20
ref: 1
CRANKCASE ASSY
€ 461.50
2
0421113189
ref: 2
PIN
0421113189
€ 2.50
3
015470645A
ref: 3
BOLT
015470645A
€ 2.50
4
015470660A
ref: 4
BOLT
015470660A
€ 2.50
5
015470675A
ref: 5
BOLT
015470675A
€ 2.00
6
1131905200
ref: 6
PLATE,OIL GALLERY PLUG
1131905200
€ 2.50
7
015000610A
ref: 7
BOLT
015000610A
€ 2.00
8
0910308016
ref: 8
BOLT(8X80)
0910308016
€ 8.00
9
0910308010
ref: 9
BOLT(8X88)
0910308010
€ 55.50
10
083193108A
ref: 10
NUT
083193108A
€ 2.50
