HANDLE LEVER (DR-Z125L3 E33)

DR-Z125L 2013 (L3) USA (E03) DRZ125L DR Z125L

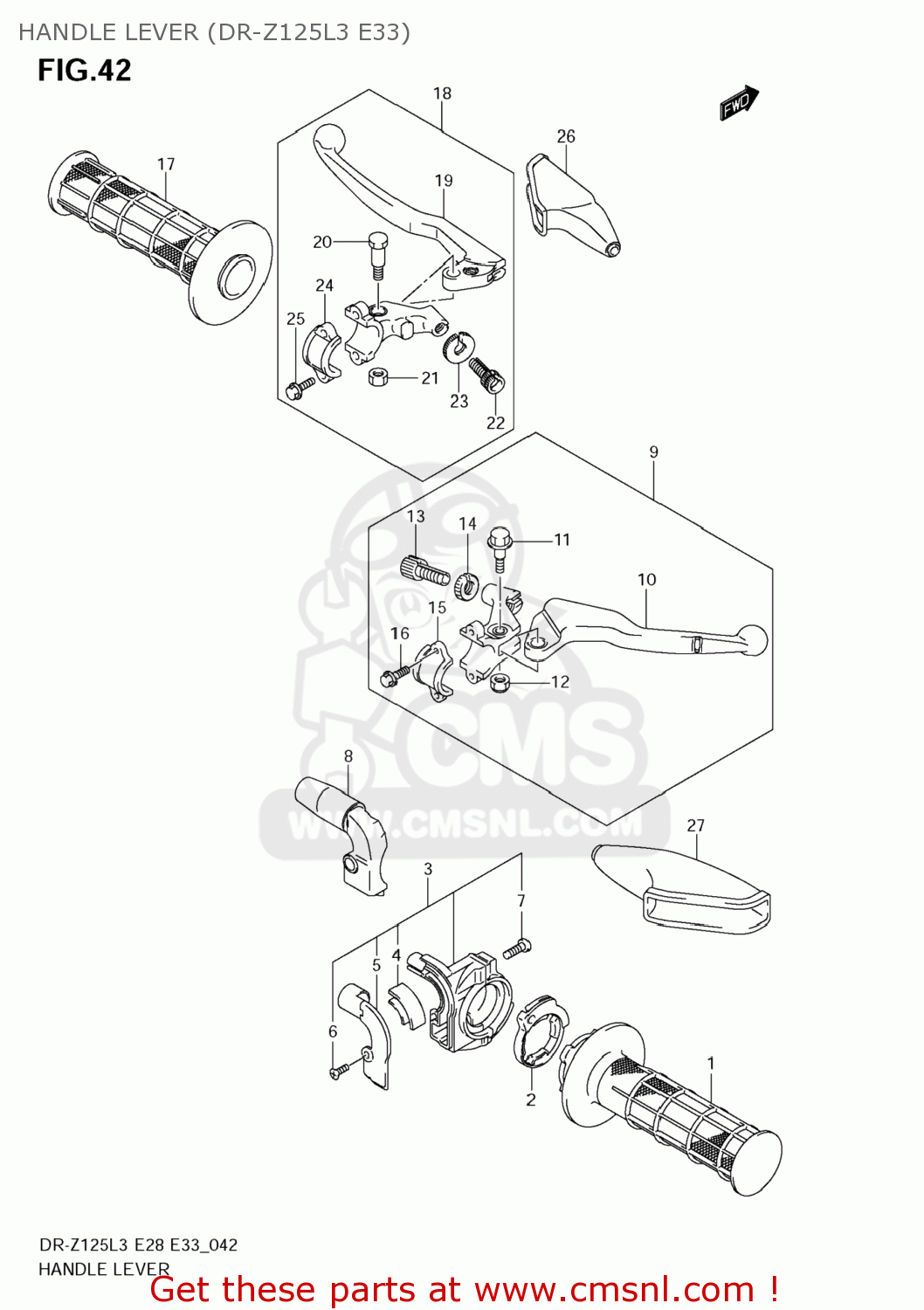

Handle lever (dr-z125l3 e33) diagram DR-Z125L 2013 (L3) USA (E03) DRZ125L DR Z125L

HANDLE LEVER (DR-Z125L3 E33) DR-Z125L 2013 (L3) USA (E03) DRZ125L DR Z125L

HANDLE LEVER (DR-Z125L3 E33) DR-Z125L 2013 (L3) USA (E03) DRZ125L DR Z125L

prices are in EUR

ref

part #

description

quantity

1

5711027C00
ref: 1

GRIP,THROTTLE

€ 25.00

2

5711420430
ref: 2

ROTER,THROTTLE

€ 5.50

3

5710003D10
ref: 3

CASE ASSY,THROTTLE

€ 30.00

4

5712203D10
ref: 4

GUIDE

€ 9.50

5

5712903D10
ref: 5

COVER

€ 13.00

6

021320406B
ref: 6

SCREW

€ 5.00

7

021120516A
ref: 7

SCREW

€ 2.00

8

5712908G00
ref: 8

COVER,THROTTLE CASE

€ 12.50

9

5730014320
ref: 9

LEVER ASSY,BRAKE

€ 64.00

10

5742014320
ref: 10

LEVER,BRAKE

€ 31.00

11

5743114320
ref: 11

BOLT,LEVER PIVOT

€ 13.00

12

083192106A
ref: 12

NUT

€ 2.00

13

5744145C00
ref: 13

ADJUSTER,WIRE

€ 8.50

14

5744245C00
ref: 14

NUT,LOCK

€ 7.50

15

5751237F00
ref: 15

HOLDER

€ 13.50

16

0154706207
ref: 16

BOLT

€ 2.50

17

5721127C00
ref: 17

GRIP,L

€ 11.00

18

5750014320
ref: 18

LEVER ASSY,CLUTCH

€ 45.50

19

5762113E00
ref: 19

LEVER,CLUTCH

€ 17.00

20

5743121D11
ref: 20

BOLT,LEVER PIVOT

€ 10.50

21

083192106A
ref: 21

NUT

€ 2.00

22

5744129F00
ref: 22

ADJUSTER,WIRE

€ 8.50

23

5744245C00
ref: 23

NUT,LOCK

€ 7.50

24

5751228C00
ref: 24

BRACKET,CLUTCH LEVER HOLDER

€ 13.00

25

5751329F10
ref: 25

BOLT,BRACKET

€ 4.50

26

5734129F01
ref: 26

COVER,CLUTCH CABLE DUST

€ 8.00

27

5734140002
ref: 27

COVER,CLUTCH LEVER

€ 7.50
