FRAME COVER

DR-Z125L 2013 (L3) USA (E03) DRZ125L DR Z125L

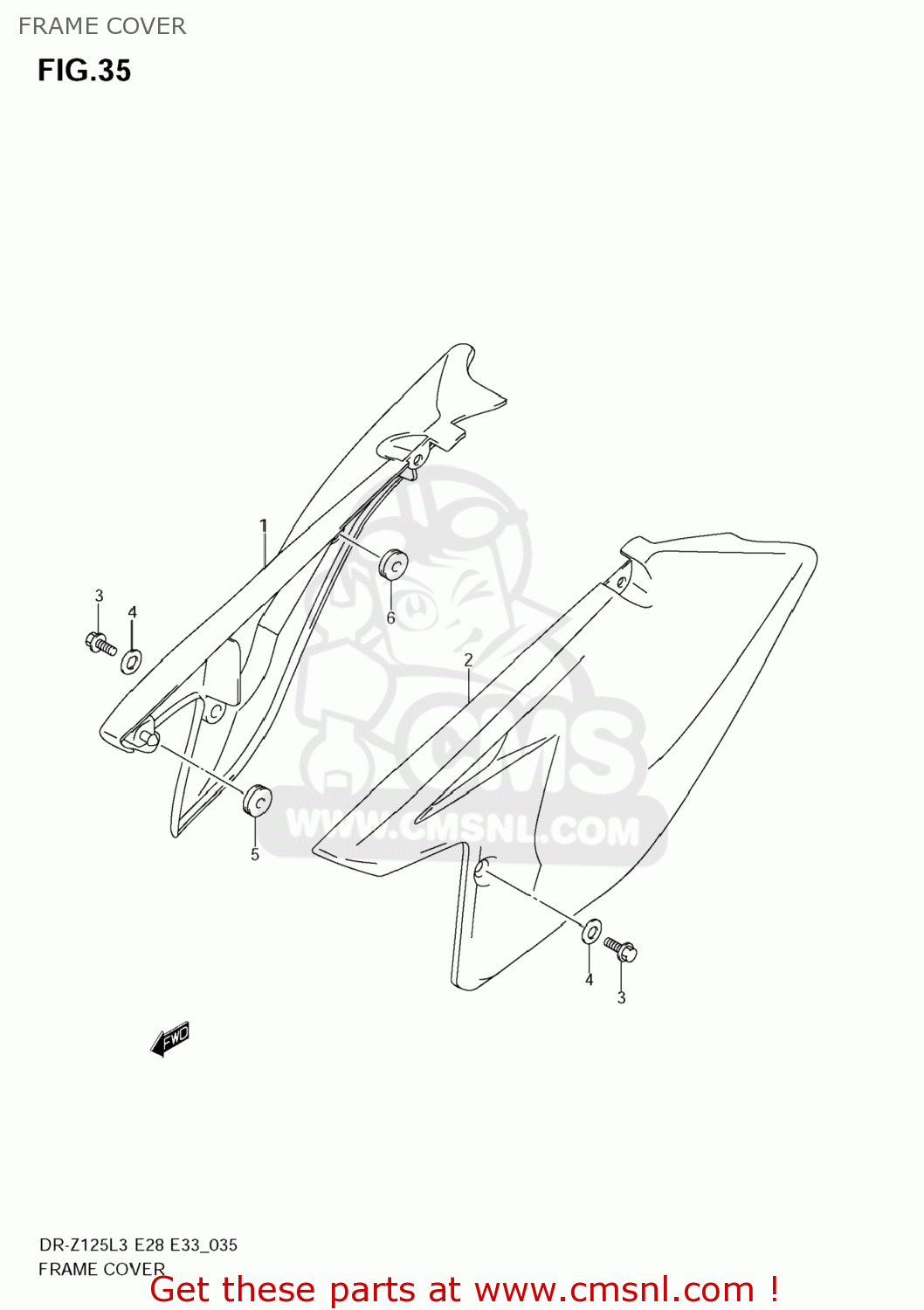

Frame cover diagram DR-Z125L 2013 (L3) USA (E03) DRZ125L DR Z125L

FRAME COVER DR-Z125L 2013 (L3) USA (E03) DRZ125L DR Z125L

FRAME COVER DR-Z125L 2013 (L3) USA (E03) DRZ125L DR Z125L

prices are in EUR

ref

part #

description

quantity

1

4711108G5030H
ref: 1

COVER,FRAME,R(WHITE)

€ 40.00

2

4721108G5030H
ref: 2

COVER,FRAME,L(WHITE)

€ 40.00

3

015470616A
ref: 3

BOLT

€ 2.00

4

0916906031
ref: 4
09169-06041

WASHER

€ 2.00

5

0932008028
ref: 5

CUSHION

€ 2.50

6

4716108G00
ref: 6

CUSHION

€ 5.00
