FRONT CALIPER (DR-Z125LL3 E33)

DR-Z125L 2013 (L3) USA (E03) DRZ125L DR Z125L

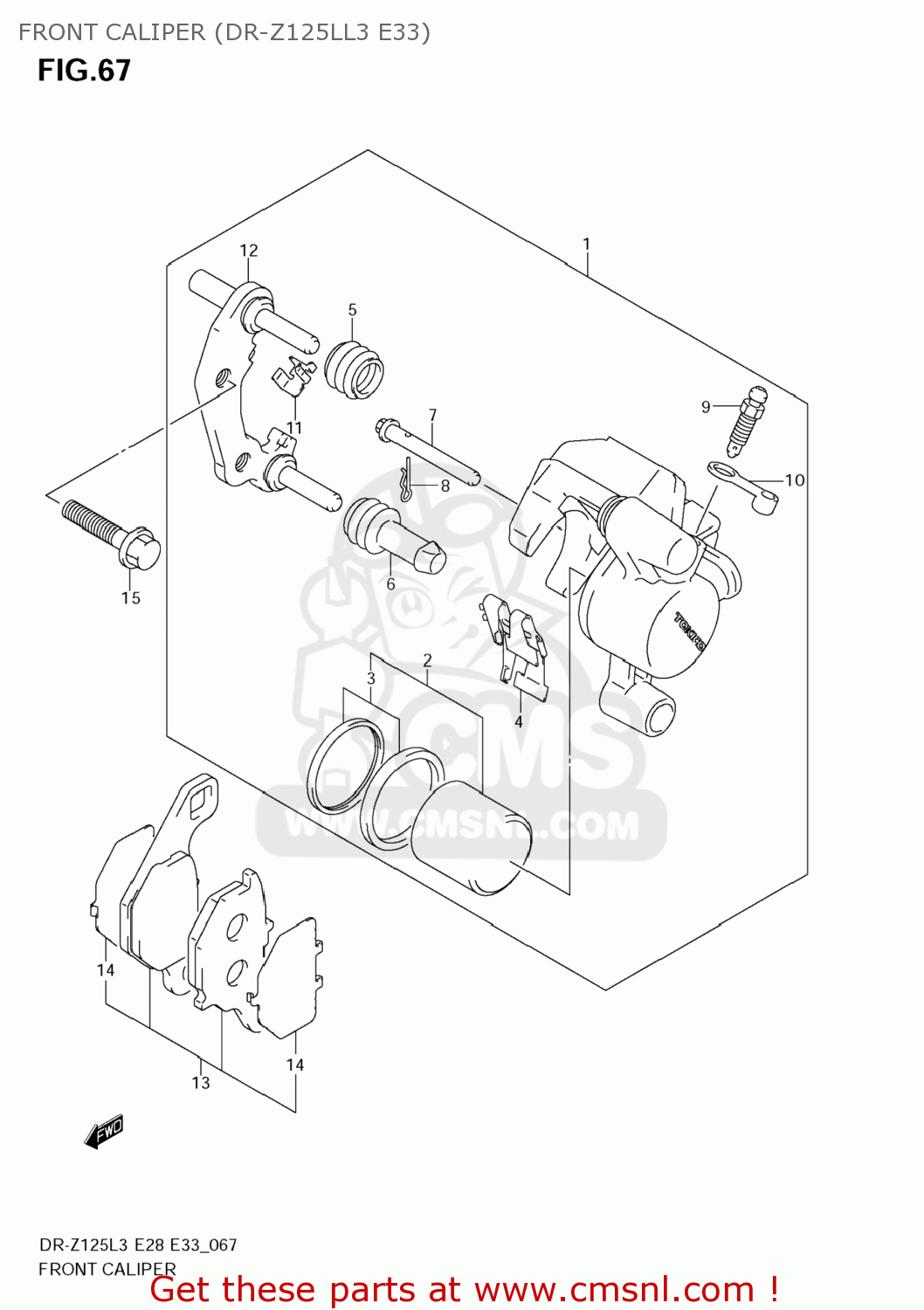

Front caliper (dr-z125ll3 e33) diagram DR-Z125L 2013 (L3) USA (E03) DRZ125L DR Z125L

FRONT CALIPER (DR-Z125LL3 E33) DR-Z125L 2013 (L3) USA (E03) DRZ125L DR Z125L
FRONT CALIPER (DR-Z125LL3 E33) DR-Z125L 2013 (L3) USA (E03) DRZ125L DR Z125L
FRONT CALIPER (DR-Z125LL3 E33) DR-Z125L 2013 (L3) USA (E03) DRZ125L DR Z125L
prices are in EUR
ref
part #
description
quantity
1
5930003B10999
ref: 1
59300-03B11-999
CALIPER ASSY,FR,L
€ 223.00
2
5930120830
ref: 2
PISTON SET
5930120830
€ 20.00
3
5930035830
ref: 3
SEAL SET,PISTON
5930035830
€ 11.50
4
5931520E00
ref: 4
SPRING,PAD
5931520E00
€ 8.00
5
5931236500
ref: 5
BOOT,AXLE
5931236500
€ 4.00
6
5931336500
ref: 6
INSULATOR,AXLE
5931336500
€ 5.50
7
6914144B02
ref: 7
PIN,PAD
6914144B02
€ 8.00
8
6914245000
ref: 8
CLIP,PAD PIN
6914245000
€ 4.50
9
5912118410
ref: 9
BLEEDER
5912118410
€ 8.00
10
5912202B40
ref: 10
55156-66310
CAP,BLEEDER
€ 6.00
11
5911620E00
ref: 11
GUIDE,PAD
5911620E00
€ 4.00
12
5935020E00
ref: 12
59350-03B00
CARRIER,CALIPER,L
€ 46.00
13
5930120870
ref: 13
PAD & SHIM SET (NAS)
€ 42.00
14
5937120E00
ref: 14
SHIM,PAD
5937120E00
€ 7.00
15
015500835A
ref: 15
BOLT
015500835A
€ 3.50
