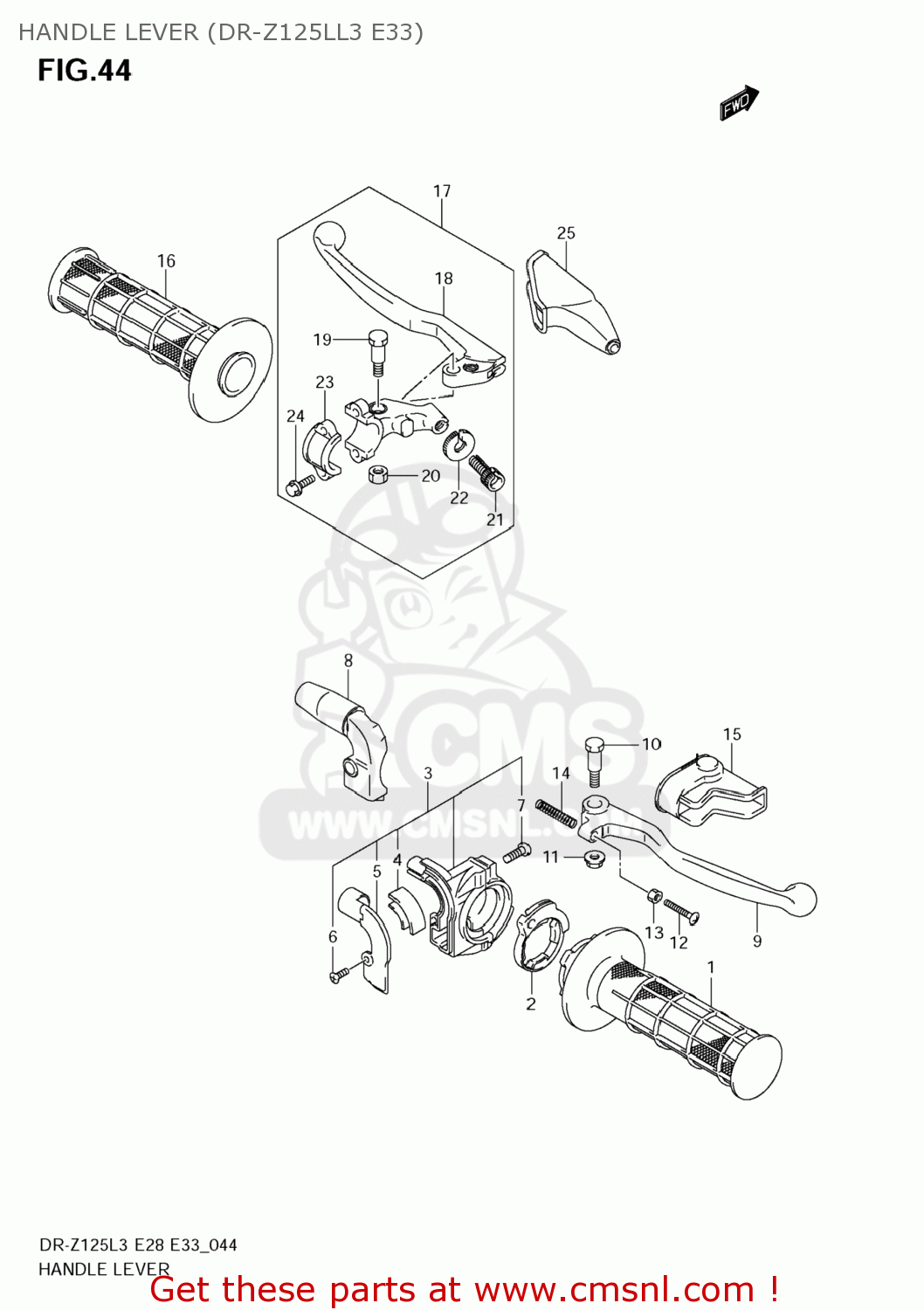

HANDLE LEVER (DR-Z125LL3 E33)

DR-Z125L 2013 (L3) USA (E03) DRZ125L DR Z125L

Handle lever (dr-z125ll3 e33) diagram DR-Z125L 2013 (L3) USA (E03) DRZ125L DR Z125L

HANDLE LEVER (DR-Z125LL3 E33) DR-Z125L 2013 (L3) USA (E03) DRZ125L DR Z125L

HANDLE LEVER (DR-Z125LL3 E33) DR-Z125L 2013 (L3) USA (E03) DRZ125L DR Z125L

prices are in EUR

ref

part #

description

quantity

1

5711027C00
ref: 1

GRIP,THROTTLE

€ 25.00

2

5711420430
ref: 2

ROTER,THROTTLE

€ 5.50

3

5710003D10
ref: 3

CASE ASSY,THROTTLE

€ 30.00

4

5712203D10
ref: 4

GUIDE

€ 9.50

5

5712903D10
ref: 5

COVER

€ 13.00

6

021320406B
ref: 6

SCREW

€ 5.00

7

021220516A
ref: 7

SCREW

€ 2.00

8

5712908G00
ref: 8

COVER,THROTTLE CASE

€ 12.50

9

5742127C00
ref: 9

LEVER,BRAKE

€ 11.00

10

5743114500
ref: 10

BOLT,BRAKE LEVER

€ 4.00

11

083161006B
ref: 11

NUT

€ 2.50

12

5743114511
ref: 12

BOLT,ADJUST

€ 3.50

13

083100005A
ref: 13

NUT

€ 2.50

14

5731814502
ref: 14

SPRING,RETURN

€ 3.00

15

5734114501
ref: 15

COVER,BRAKE LEVER

€ 5.00

16

5721127C00
ref: 16

GRIP,L

€ 11.00

17

5750014320
ref: 17

LEVER ASSY,CLUTCH

€ 45.50

18

5762113E00
ref: 18

LEVER,CLUTCH

€ 17.00

19

5743121D11
ref: 19

BOLT,LEVER PIVOT

€ 10.50

20

083192106A
ref: 20

NUT

€ 2.00

21

5744129F00
ref: 21

ADJUSTER,WIRE

€ 8.50

22

5744245C00
ref: 22

NUT,LOCK

€ 7.50

23

5751228C00
ref: 23

BRACKET,CLUTCH LEVER HOLDER

€ 13.00

24

5751329F10
ref: 24

BOLT,BRACKET

€ 4.50

25

5734129F01
ref: 25

COVER,CLUTCH CABLE DUST

€ 8.00
