CRANKCASE COVER

DR-Z250 2006 (K6) USA (E03) DRZ250 DR Z250

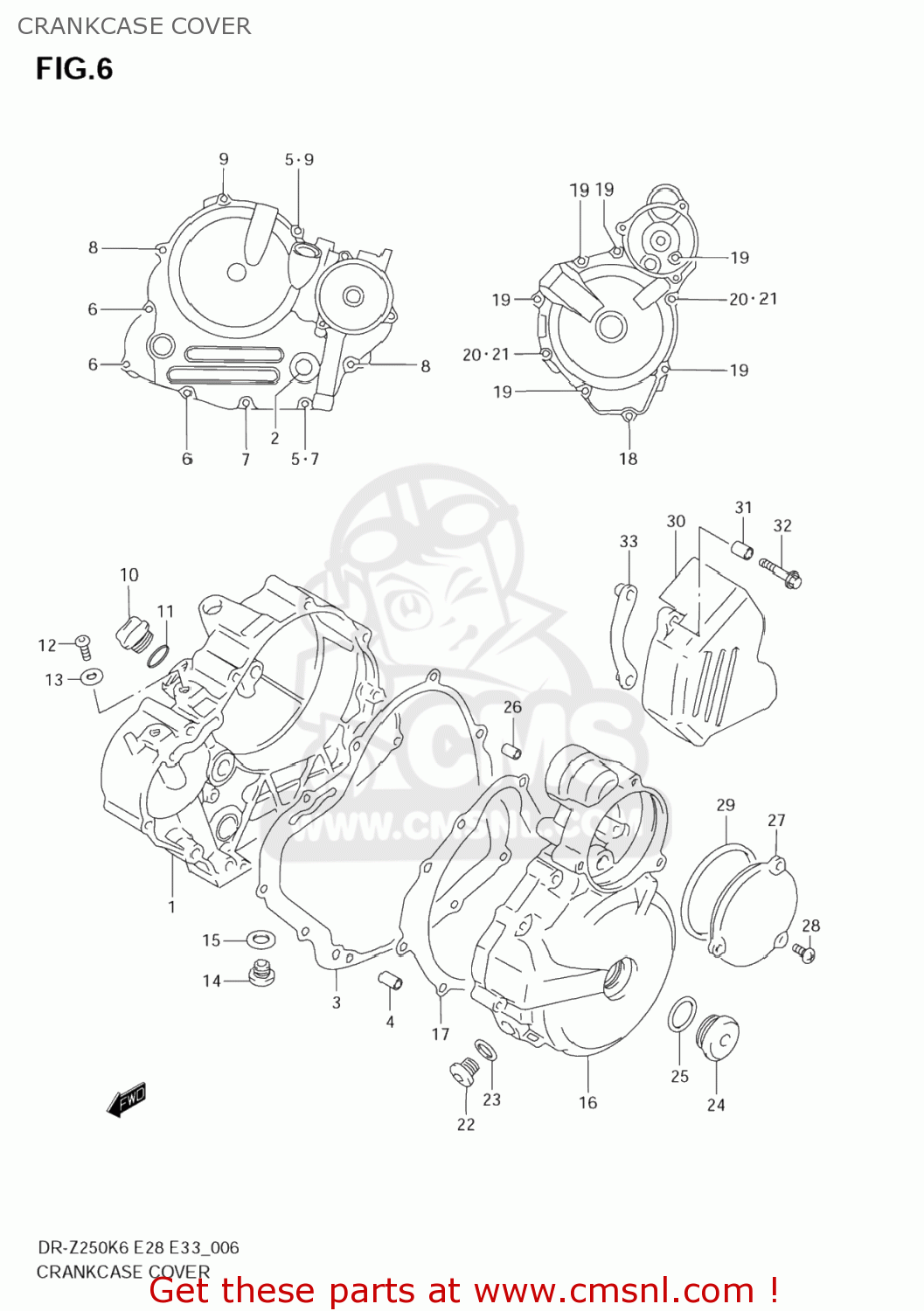

Crankcase cover diagram DR-Z250 2006 (K6) USA (E03) DRZ250 DR Z250

CRANKCASE COVER DR-Z250 2006 (K6) USA (E03) DRZ250 DR Z250
CRANKCASE COVER DR-Z250 2006 (K6) USA (E03) DRZ250 DR Z250
CRANKCASE COVER DR-Z250 2006 (K6) USA (E03) DRZ250 DR Z250
prices are in EUR
ref
part #
description
quantity
1
1134013E00
ref: 1
COVER,CLUTCH
€ 195.00
2
1197145010
ref: 2
LENS,OIL LEVEL CHECK
1197145010
€ 13.00
3
1148213E00
ref: 3
GASKET,CLUTCH COVER
1148213E00
€ 24.50
4
0421109149
ref: 4
PIN
0421109149
€ 2.00
5
0916806023
ref: 5
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
6-1
0154706253
ref: 6-1
01547-0625B
SCREW
0154706253
€ 2.50
6-2
015470625A
ref: 6-2
BOLT
015470625A
€ 2.50
7-1
0154706353
ref: 7-1
01547-0635B
BOLT
0154706353
€ 3.00
7-2
015470635A
ref: 7-2
BOLT
015470635A
€ 3.00
8-1
0154706403
ref: 8-1
01547-0640B
BOLT
0154706403
€ 3.00
8-2
015470640A
ref: 8-2
BOLT
015470640A
€ 2.50
9-1
0154706603
ref: 9-1
01547-0660B
BOLT
€ 3.50
9-2
015470660A
ref: 9-2
BOLT
015470660A
€ 2.50
10
0925920019
ref: 10
PLUG
0925920019
€ 9.50
11
0928017003
ref: 11
O RING(D:3.1,ID:16.8)
0928017003
€ 2.00
12
0924814005
ref: 12
PLUG,14X12
0924814005
€ 5.00
13
0916814002
ref: 13
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
14
0924810010
ref: 14
PLUG(10X10)
0924810010
€ 4.00
15
0916810002
ref: 15
GASKET(10X14X3.6) (NAS)
0916810002
€ 2.00
16
1135113E00
ref: 16
COVER,MAGNETO
€ 185.00
17
1148313E00
ref: 17
GASKET,MAGNETO COVER
€ 14.50
18-1
0154706253
ref: 18-1
01547-0625B
SCREW
0154706253
€ 2.50
18-2
015470625A
ref: 18-2
BOLT
015470625A
€ 2.50
19-1
0154706353
ref: 19-1
01547-0635B
BOLT
0154706353
€ 3.00
19-2
015470635A
ref: 19-2
BOLT
015470635A
€ 3.00
20-1
0154706453
ref: 20-1
01547-0645B
BOLT
0154706453
€ 3.00
20-2
015470645A
ref: 20-2
BOLT
015470645A
€ 2.50
21
0916806023
ref: 21
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
22
0924814005
ref: 22
PLUG,14X12
0924814005
€ 5.00
23
0916814002
ref: 23
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
24
0925926011
ref: 24
PLUG(26X9)
0925926011
€ 8.50
25
0928022008
ref: 25
O RING(D:3.1,ID:22.7)
0928022008
€ 2.50
26
0421109149
ref: 26
PIN
0421109149
€ 2.00
27
1135213E00
ref: 27
COVER,STARTER IDLE GEAR
1135213E00
€ 15.00
28-1
0214206123
ref: 28-1
02142-0612A
SCREW 6X12
0214206123
€ 2.00
28-2
021420612A
ref: 28-2
SCREW
021420612A
€ 2.00
29-1
0928071004
ref: 29-1
O RING(D:2.6,ID:69.6)
0928071004
€ 19.00
29-2
0928071008
ref: 29-2
O RING(D:2.6,ID:67.1)
0928071008
€ 6.50
30
1136013E00
ref: 30
COVER,ENGINE SPROCKET
€ 63.00
31
0918006289
ref: 31
SPACER(6.5X10X11.5)
0918006289
€ 2.50
32-1
0154706353
ref: 32-1
01547-0635B
BOLT
0154706353
€ 3.00
32-2
015470635A
ref: 32-2
BOLT
015470635A
€ 3.00
33
2764013E10
ref: 33
PLATE,FR CHAIN GUIDE
€ 0.00
