REAR COMBINATION LAMP

DR-Z250 2006 (K6) USA (E03) DRZ250 DR Z250

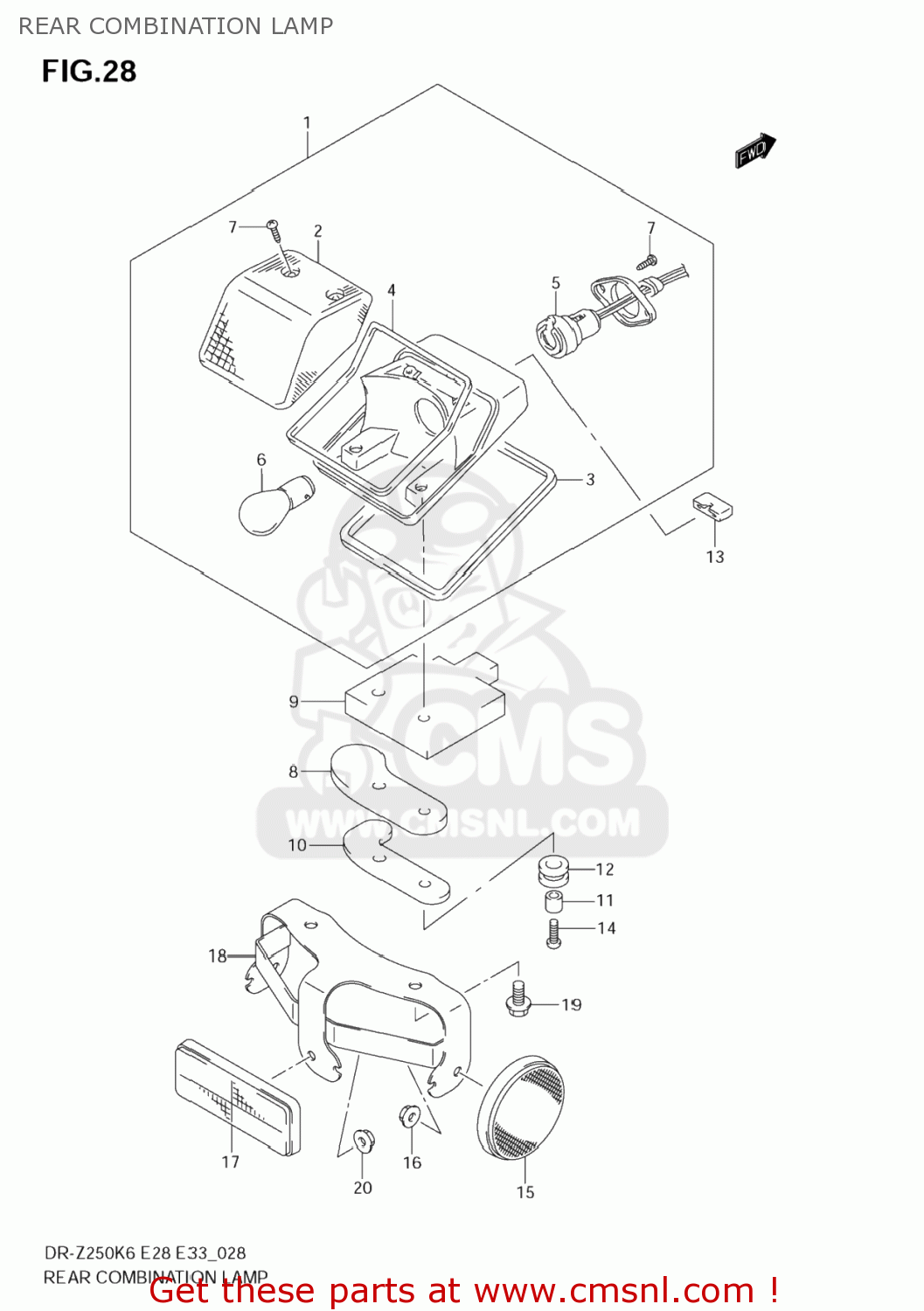

Rear combination lamp diagram DR-Z250 2006 (K6) USA (E03) DRZ250 DR Z250

prices are in EUR

ref

part #

description

quantity

3571013E10
ref: 1

LAMP ASSY, REAR COMB

€ 123.50

3571213E00
ref: 2

LENS

€ 14.00

3571313E00
ref: 3

GASKET

€ 4.00

3571313E10
ref: 4

GASKET

€ 0.00

3571813E00
ref: 5

SOCKET & CORD

€ 0.00

0947112083
ref: 6
09471-12128

BULB(12V21/5W)

€ 6.00

0321104123
ref: 7
03211-0412A

SCREW

€ 1.50

3578113E00
ref: 8

CUSHION,BRACKET

€ 0.00

3578113E10
ref: 9

CUSHION,LWR

€ 0.00

3579313E00
ref: 10

BRACKET,RR COMBI LAMP LWR

€ 0.00

0918006267
ref: 11

SPACER(6.5X9X12.5)

€ 3.00

0932009016
ref: 12

CUSHION

€ 2.50

0932902002
ref: 13

CUSHION

€ 1.50

021120620A
ref: 14

SCREW

€ 1.50

3597030910
ref: 15

REFLEX REFLECTOR,RR

€ 47.50

083161005A
ref: 16

NUT

€ 2.50

3597007F00
ref: 17
35970-07F01

REFLECTOR ASSEMBLY,REAR

€ 20.50

3597413E00
ref: 18

BRACKET,SIDE & RR RR

€ 0.00

015500612A
ref: 19

BOLT

€ 2.50

083161005A
ref: 20

NUT

€ 2.50
