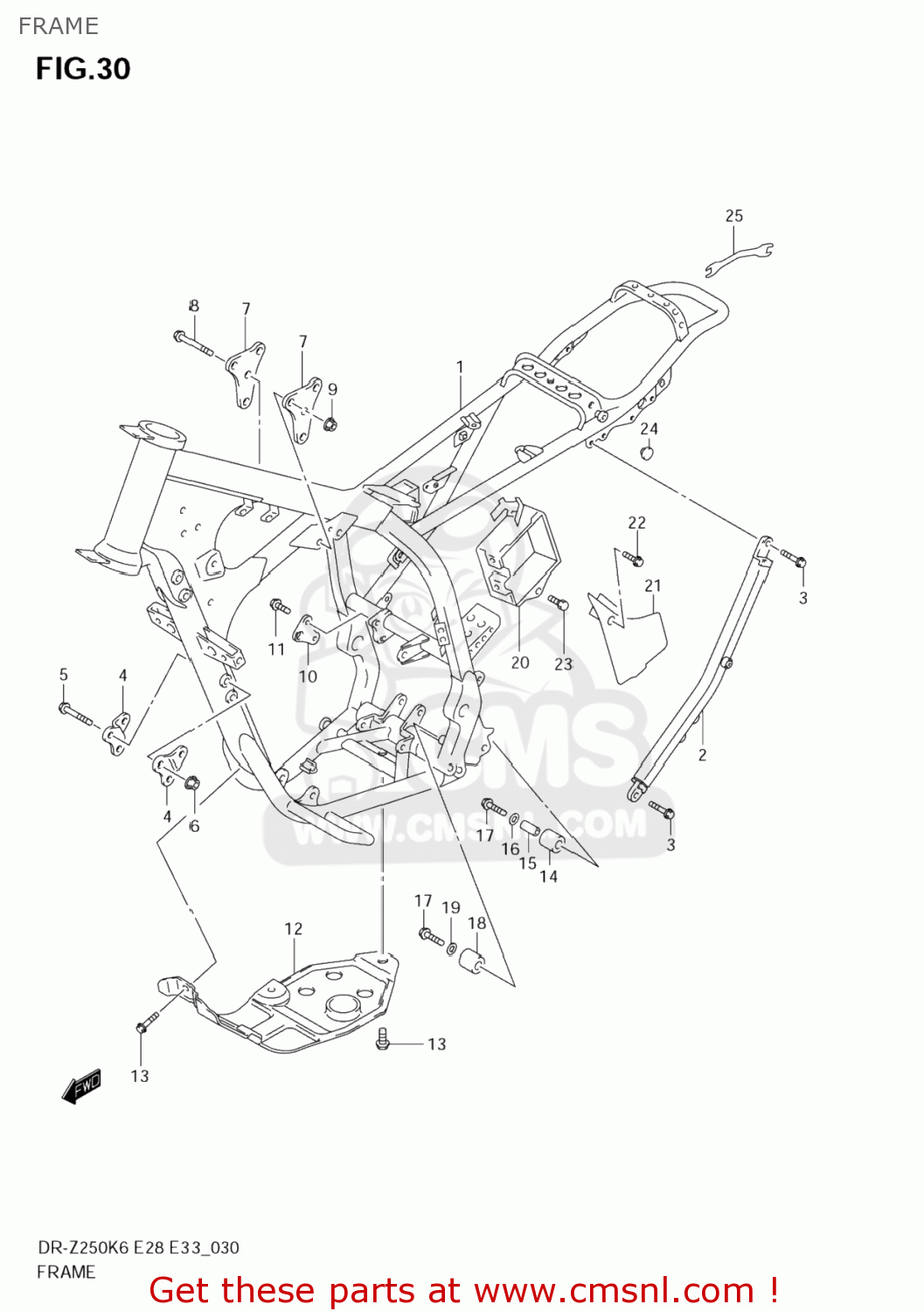

FRAME

ref

part #

description

quantity

1

4110013E40YU8
ref: 1

FRAME(SILVER)

€ 0.00

2

4167013E10
ref: 2

TUBE,FRAME SIDE,L

€ 0.00

3-1

0910308266
ref: 3-1

BOLT(8X20)

€ 2.50

3-2

0910308430
ref: 3-2

BOLT(8X20)

€ 2.00

4

4191113E00
ref: 4

PLATE,HEAD MTG FR

€ 0.00

5

0910308141
ref: 5

BOLT(8X65)

€ 0.00

6

0915908034
ref: 6

NUT

€ 2.00

7

4199313E02
ref: 7

PLATE,HEAD MOUNT RR

€ 0.00

8

0910308170
ref: 8
09103-08339

BOLT

€ 3.50

9

0831931088
ref: 9
08319-3108A

NUT

€ 2.50

10

4192113E01
ref: 10

PLATE,ENGINE MOUNT RR,R

€ 0.00

11

0910308283
ref: 11
09103-08283-A05

BOLT(8X16)

€ 2.50

12

4251013E00
ref: 12

PROTECTOR,ENGINE

€ 0.00

13

0155006123
ref: 13
01550-0612A

BOLT

€ 2.50

14

4391113E00
ref: 14

ROLLER,CHAIN CONTROL UPR

€ 10.00

15-1

0918008156
ref: 15-1

SPACER(8.6X12X27.1)

€ 6.50

15-2

0918008119
ref: 15-2
09180-08156

SPACER(8.6X12X25.5)

€ 6.50

16

0821108201
ref: 16

WASHER

€ 2.00

17

0910308178
ref: 17

BOLT(8X38)

€ 5.00

18

4391027C11
ref: 18

ROLLER,CHAIN

€ 36.50

19

0918108111
ref: 19

SHIM(8X12X1)

€ 2.00

20

4154013E00
ref: 20

HOLDER,BATTERY

€ 0.00

21

4154513E01
ref: 21

CAP,BATTERY HOLDER

€ 10.50

22

0911306001
ref: 22

BOLT(6X16)

€ 3.00

23

0911106057
ref: 23

BOLT(6X17.5)

€ 4.50

24

0925008005
ref: 24

CAP(OD:20)

€ 2.50

25

0981300039
ref: 25

SPANNER,OPEN

€ 8.00
