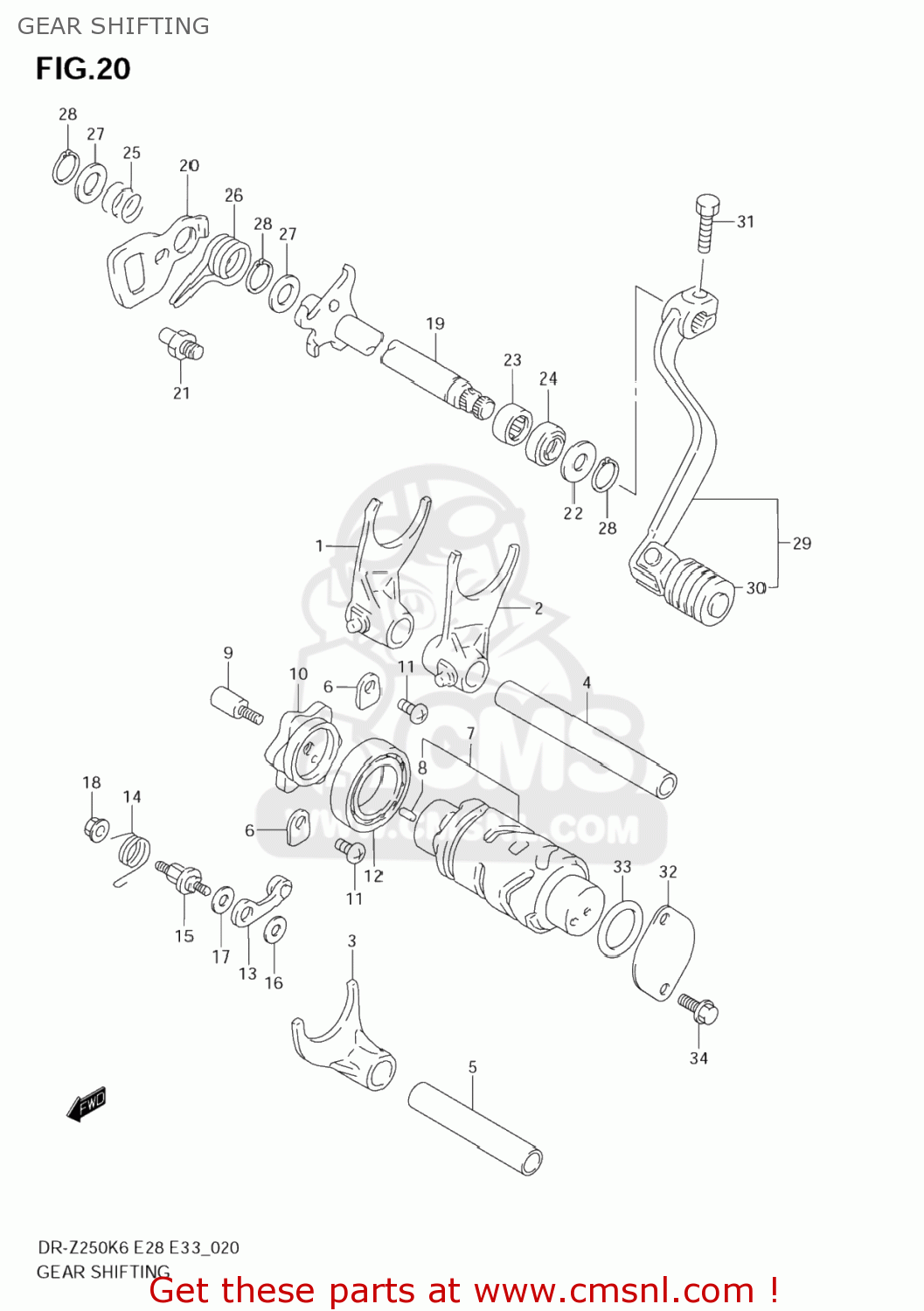

GEAR SHIFTING

ref

part #

description

quantity

1

2521114D02
ref: 1

FORK,GEAR SHIFT NO.1

€ 71.50

2

2522114D03
ref: 2

FORK,GEAR SHIFT NO.2

€ 71.50

3

2523114D02
ref: 3

FORK,GEAR SHIFT NO.3

€ 71.50

4

2541137F20
ref: 4

SHAFT,GEAR SHIFT FORK(L:95)

€ 11.50

5

2542114D00
ref: 5

SHAFT,GEAR SHIFT FORK(L:70)

€ 18.00

6

2474121A00
ref: 6

RETAINER

€ 2.00

7

2531014D10
ref: 7

CAM,GEAR SHIFT

€ 0.00

8

0422104089
ref: 8

PIN

€ 1.50

9

2531212C00
ref: 9

PIN,SHIFT CAM DRIVEN GEAR

€ 6.00

10

2538113E10
ref: 10

PLATE,GEAR SHIFT CAM

€ 40.00

11

0912506110
ref: 11

BOLT(6X12)

€ 2.50

12

0811369050
ref: 12

BEARING

€ 36.00

13

2535024B00
ref: 13

STOPPER,GEAR SHIFT CAM

€ 8.00

14

2535513E00
ref: 14
25355-13E10

SPRING,SHIFT CAM STOPPER

€ 4.00

15

2535612C00
ref: 15

SUPPORT,CAM STOPPER ARM

€ 9.50

16

0821106141
ref: 16

WASHER

€ 2.50

17

0821206203
ref: 17

WASHER

€ 2.50

18

083161006A
ref: 18

NUT

€ 2.50

19

2551013E01
ref: 19

SHAFT,GEAR SHIFT

€ 90.50

20

2551213E11
ref: 20

PLATE,GEAR SHIFT CAM DRIVE

€ 18.00

21

2567101011
ref: 21

STOPPER,GEAR SHIFT ARM

€ 3.00

22

0916014033
ref: 22
09160-14062

WASHER

€ 3.00

23

0926314027
ref: 23

BEARING(14X20X12)

€ 11.00

24

0928314006
ref: 24

SEAL,OIL(14X22X6)

€ 6.50

25

0944017009
ref: 25

SPRING

€ 1.50

26

0944420001
ref: 26

SPRING

€ 5.00

27

0918114167
ref: 27

SHIM(14X22X1)

€ 3.50

28

0833131146
ref: 28
08331-3114A

CIRCLIP

€ 2.00

29

2560013E10
ref: 29

LEVER ASSY,GEAR SHIFT

€ 34.50

30

2565203D00
ref: 30

RUBBER,GEAR SHIFT PEDAL

€ 3.50

31

015000620A
ref: 31

BOLT

€ 2.00

32

1145146000
ref: 32

CAP,GEAR SHIFT CAM PIVOT

€ 2.50

33

0928026005
ref: 33

O RING(D:2.4,ID:26.2)

€ 2.50

34

015470510A
ref: 34

BOLT

€ 2.00
