MAGNETO

DR-Z250 2006 (K6) USA (E03) DRZ250 DR Z250

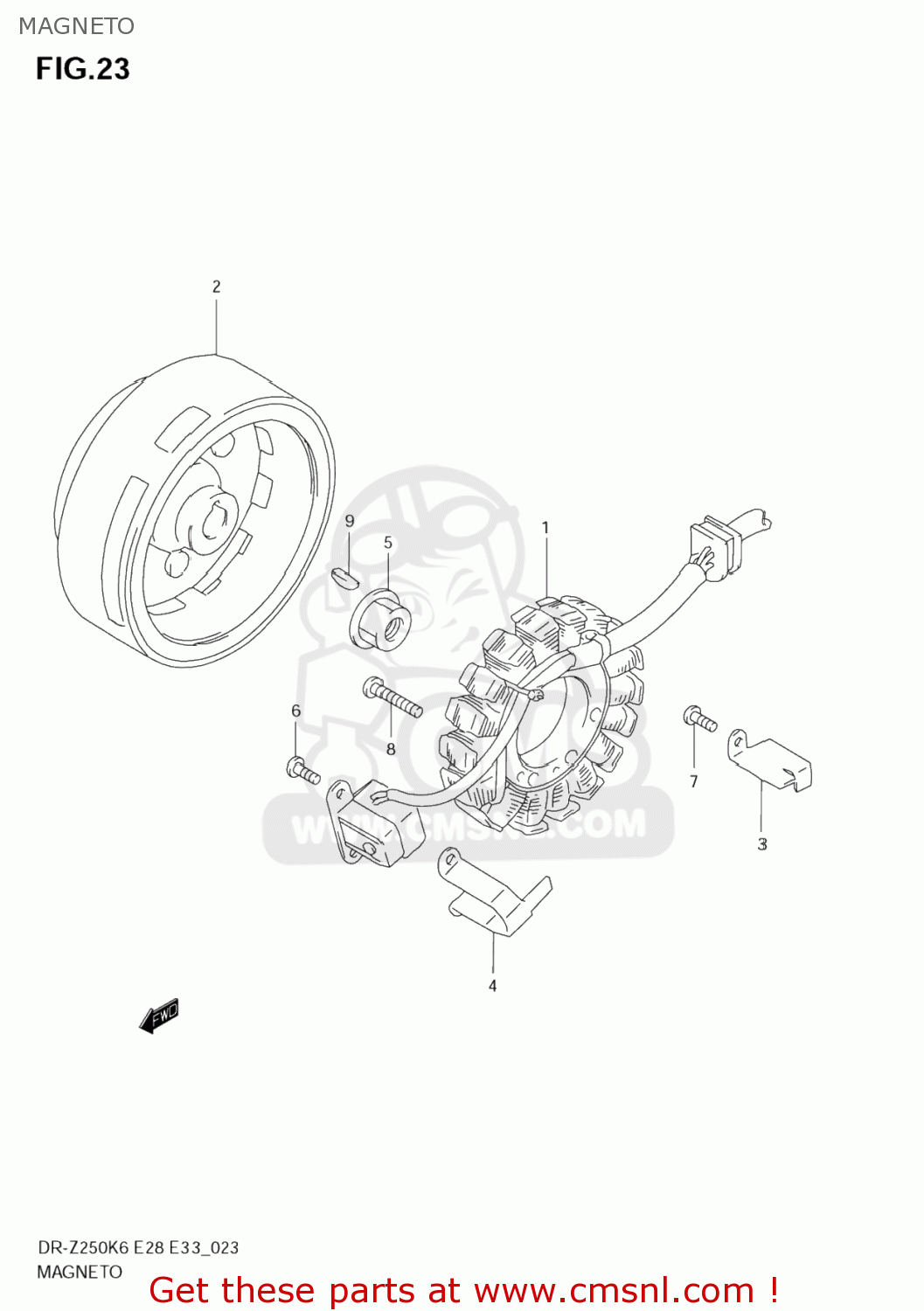

Magneto diagram DR-Z250 2006 (K6) USA (E03) DRZ250 DR Z250

MAGNETO DR-Z250 2006 (K6) USA (E03) DRZ250 DR Z250

MAGNETO DR-Z250 2006 (K6) USA (E03) DRZ250 DR Z250

prices are in EUR

ref

part #

description

quantity

1

3210113E02
ref: 1

STARTER ASSY

€ 633.00

2

3210213E00
ref: 2

ROTOR ASSY

€ 409.50

3

3237113E10
ref: 3

CLAMP,MAGNETO LEAD

€ 8.00

4

3237114D01
ref: 4

CLAMP,MAGNETO LEAD WIRE

€ 3.50

5

083161012A
ref: 5

NUT

€ 2.50

6

021120510A
ref: 6

SCREW

€ 2.00

7

021120510A
ref: 7

SCREW

€ 2.00

8

0211205253
ref: 8
02112-0525A

SCREW

€ 1.50

9

0942004008
ref: 9

KEY

€ 3.50
