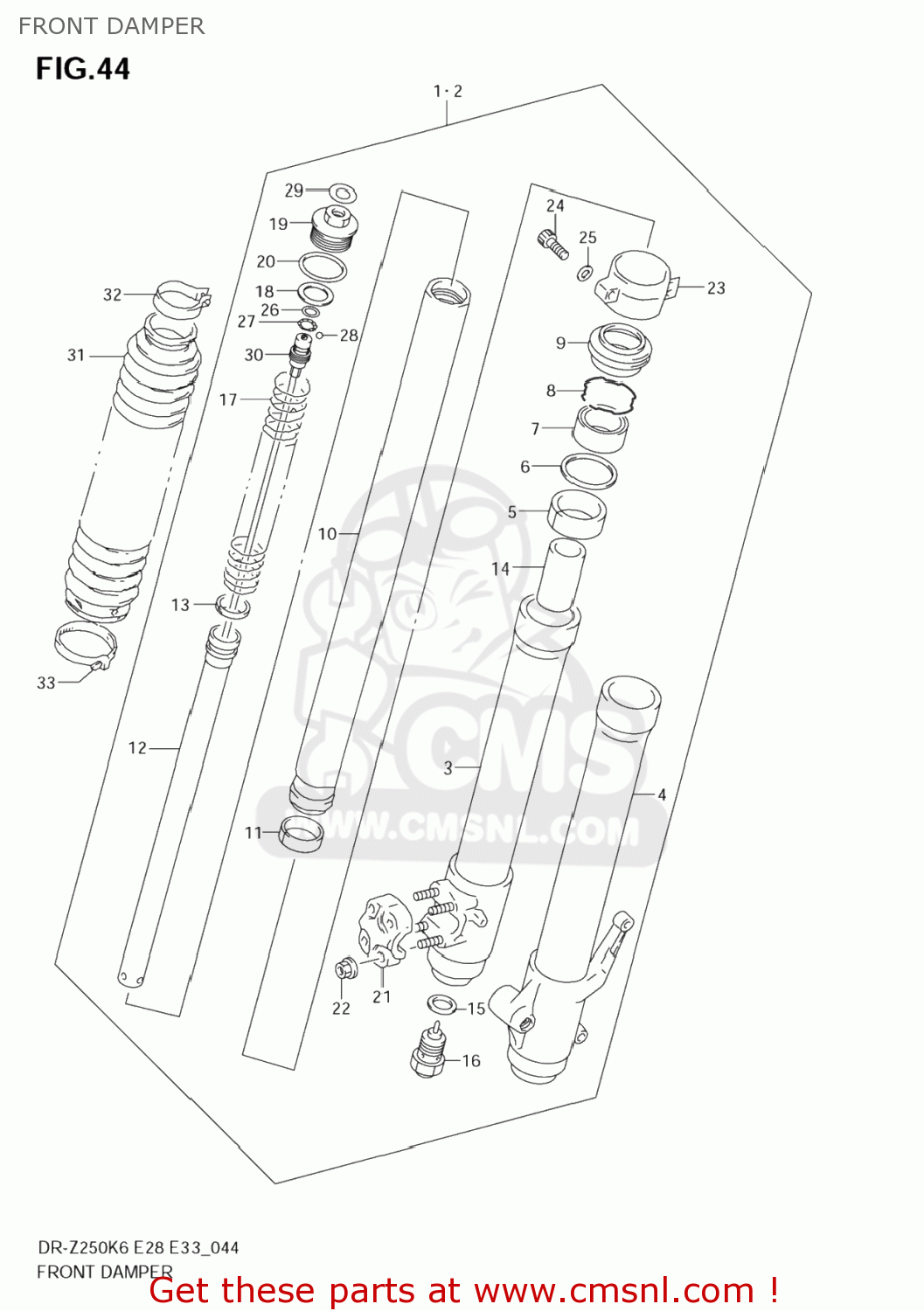

FRONT DAMPER

ref

part #

description

quantity

1

5110313EB0
ref: 1

DAMPER ASSY,FR FORK,R

€ 0.00

2

5110413EB0
ref: 2

DAMPER ASSY,FR FORK,L

€ 0.00

3

5113013EB0
ref: 3

TUBE,OUTER,R

€ 0.00

4

5114013EB0
ref: 4

TUBE,OUTER,L

€ 0.00

5

5115213E00
ref: 5

BUSH,GUIDE

€ 23.50

6

5116817C00
ref: 6

SPACER,SEAL

€ 5.00

7

5115314D00
ref: 7

SEAL,OIL

€ 20.50

8

5155638B00
ref: 8

CIRCLIP,FORK OIL SEAL

€ 4.50

9

5117314D00
ref: 9

DUST SEAL

€ 19.50

10

5111013EB0
ref: 10

TUBE,INNER

€ 0.00

11

5112113E00
ref: 11

BUSH,SLIDE

€ 18.00

12

5119013EB0
ref: 12

ROD,FR DAMPER

€ 0.00

13

5119714E30
ref: 13

BUSH,SLIDE

€ 8.50

14

5119513E00
ref: 14

PIECE,OIL LOCK

€ 0.00

15

5114808D00
ref: 15

GASKET (NAS)

€ 5.50

16

5117008D00
ref: 16

CTR BOLT

€ 72.50

17

5117113EB0
ref: 17

SPRING,FR

€ 0.00

18

5118617C00
ref: 18

SEAT,SPRING LWR

€ 4.50

19

5135114E90
ref: 19

BOLT,FORK

€ 45.50

20

5111717C00
ref: 20

O RING

€ 3.50

21

5113213E00
ref: 21

HOLDER,AXLE

€ 26.50

22

0831931067
ref: 22

NUT

€ 2.50

23

5120313E00
ref: 23

HOLDER

€ 29.00

24

0713005207
ref: 24

BOLT

€ 2.00

25

0916005044
ref: 25

WASHER(5.5X10X1)

€ 1.50

26

0928014011
ref: 26

O RING(D:2.5,ID:13.8)

€ 3.50

27

5183617C00
ref: 27

EXPANDER

€ 3.50

28

5183517C00
ref: 28

BALL

€ 3.00

29

5114934E00
ref: 29

LABEL

€ 4.50

30

5138913E00
ref: 30

CASE,ADJUSTER

€ 0.00

31

5157114D00019
ref: 31

BOOT(BLACK)

€ 0.00

32

5157514D00
ref: 32

BAND,BOOT UPR

€ 8.50

33

5157642AA0
ref: 33

BAND,BOOT LWR

€ 5.00
