FUEL COCK

DR-Z250 2006 (K6) USA (E03) DRZ250 DR Z250

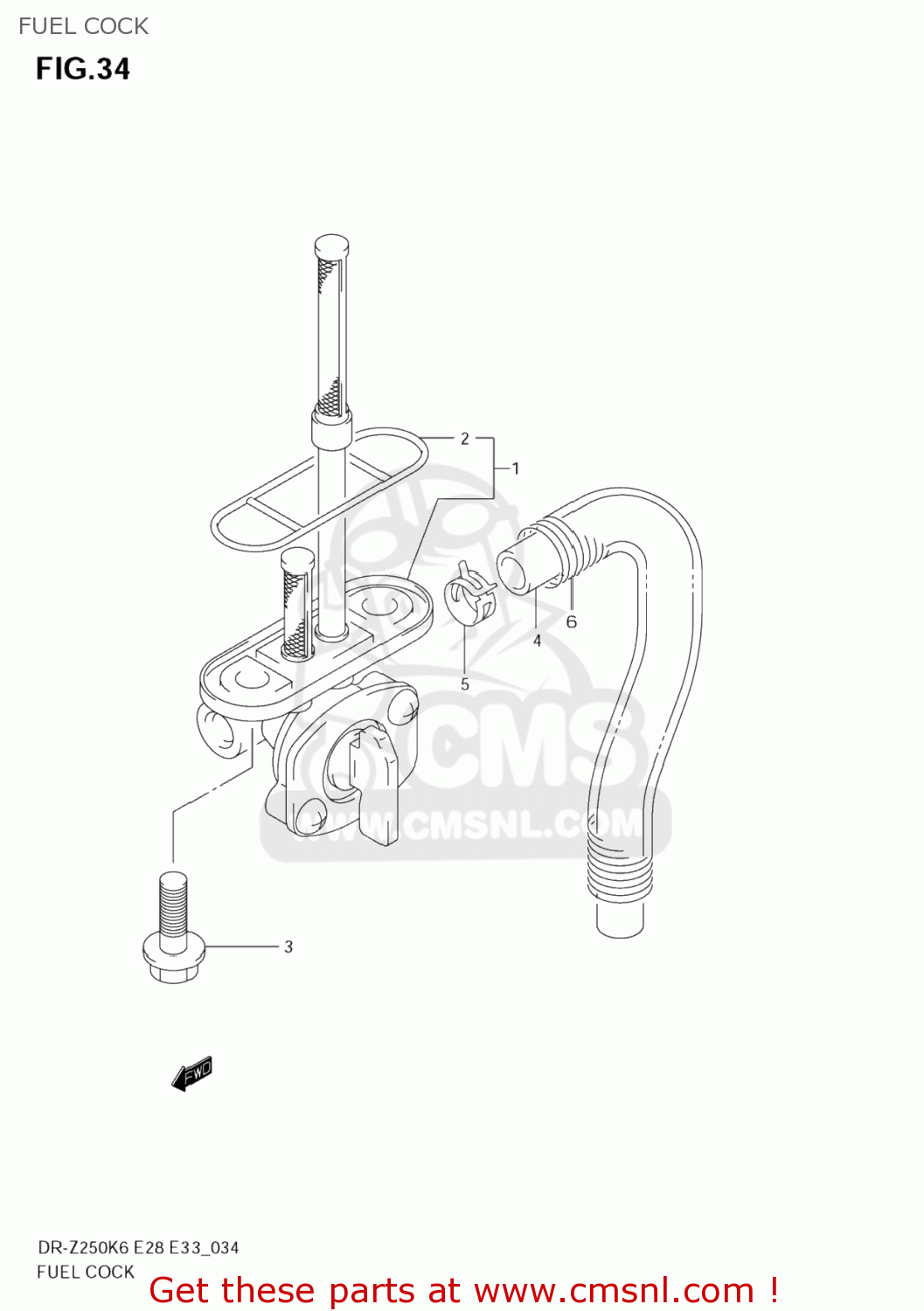

Fuel cock diagram DR-Z250 2006 (K6) USA (E03) DRZ250 DR Z250

FUEL COCK DR-Z250 2006 (K6) USA (E03) DRZ250 DR Z250

FUEL COCK DR-Z250 2006 (K6) USA (E03) DRZ250 DR Z250

prices are in EUR

ref

part #

description

quantity

1

4430013E30
ref: 1

COCK ASSY,FUEL

€ 52.00

2

4434887420
ref: 2

GASKET,JOINT (NAS)

€ 5.00

3

0154706163
ref: 3
01547-0616B

BOLT

€ 2.50

4-1

0935550105600
ref: 4-1
44421-13ER0

HOSE(5X10X600)

€ 7.50

4-2

0935550105600
ref: 4-2
44421-13ER0

HOSE(5X10X600)

€ 7.50

5

0940109403
ref: 5

CLIP

€ 2.50

6

0944013041
ref: 6

SPRING

€ 3.50
